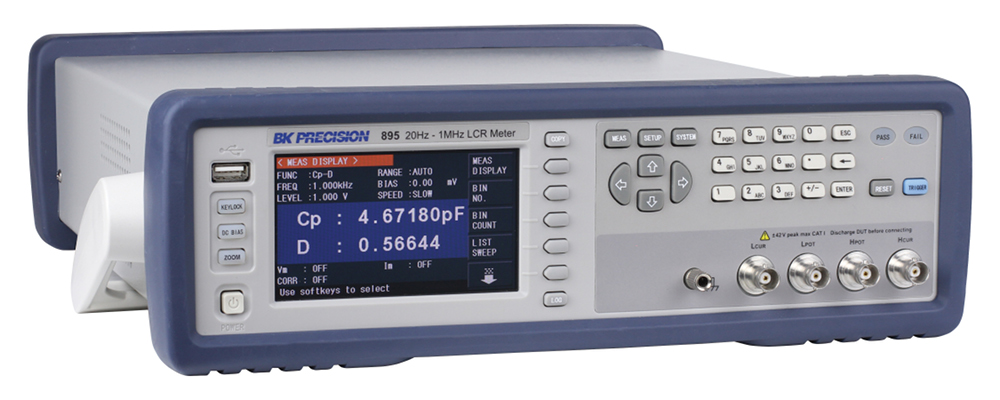

BK Precision BK894 and 895

Precision LCR meter with 500kHz and 1MHz models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • AC test signal voltage adjustable up to 2 Vrms
  • 3 AC current ranges, selectable via 30 Ω, 50 Ω or 100 Ω internal AC impedance. The 30 Ω setting provides up to 66.7 mA rms of drive current, sufficient for larger inductors and transformers
  • Built-in DC bias source adjustable from -5V to +5V / -50 mA to +50 mA
  • Fast measurement speed up to 13 ms/reading to increase manufacturing throughput
  • Adjustable measurement speed for fast readout or better accuracy
  • 201-point programmable list sweep function providing ability to sweep frequency, AC and DC bias voltage/current levels
  • Auto-level control to maintain the measurement signal applied to the DUT at a constant level
  • Test signal voltage and current monitoring BIN comparator function to sort components in up to 10 bin locations
  • Handler interface for easy integration with a component handler
  • 1 m and 2 m cable compensation
  • 4-terminal fixture and Kelvin clip test leads included
  • Transformer test function with optional transformer test fixture TL89T1
  • Versatile trigger functionality (internal, external, bus and manual)

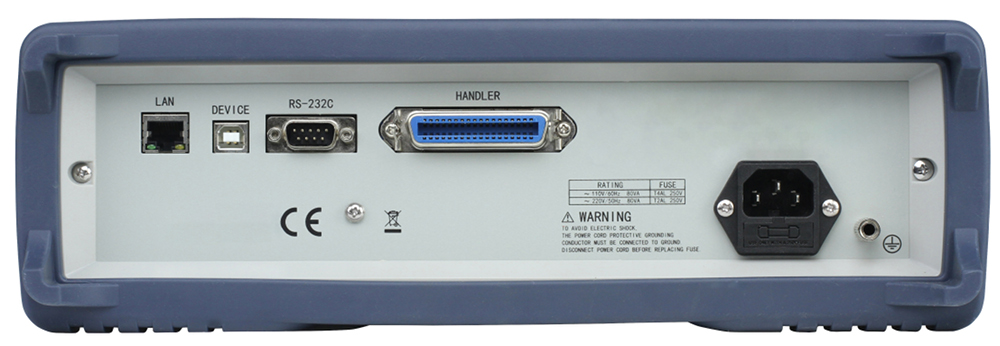

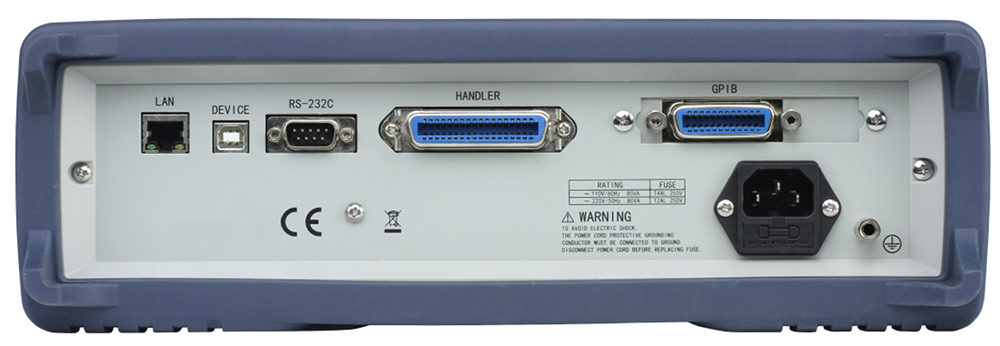

  • Standard USB, LAN, and GPIB (895 only) interface for remote control using SCPI commands

Product Variants

Model Price

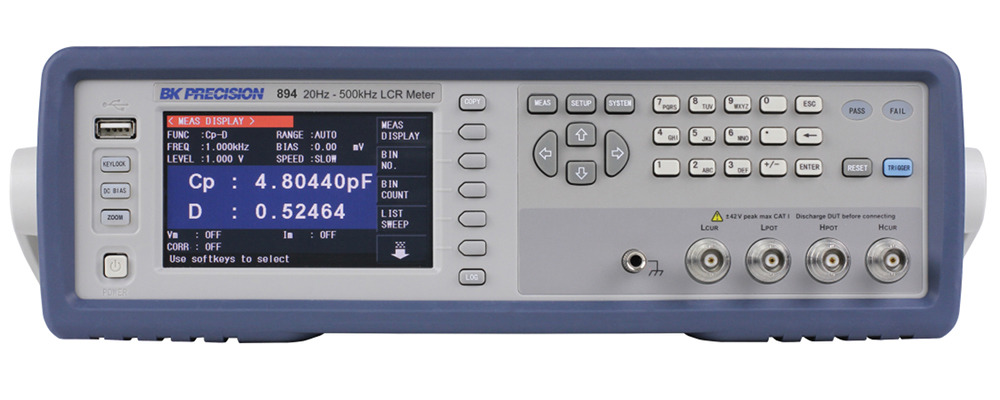

BK894

Precision LCR meter 500kHz
POA

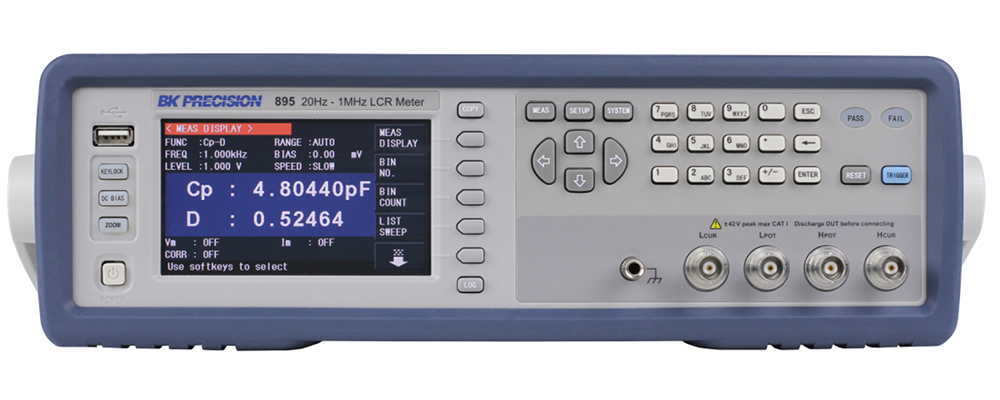

BK895

Precision LCR meter 1MHz
POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
TL89S1
SMD test fixture for LCR meters
POA
