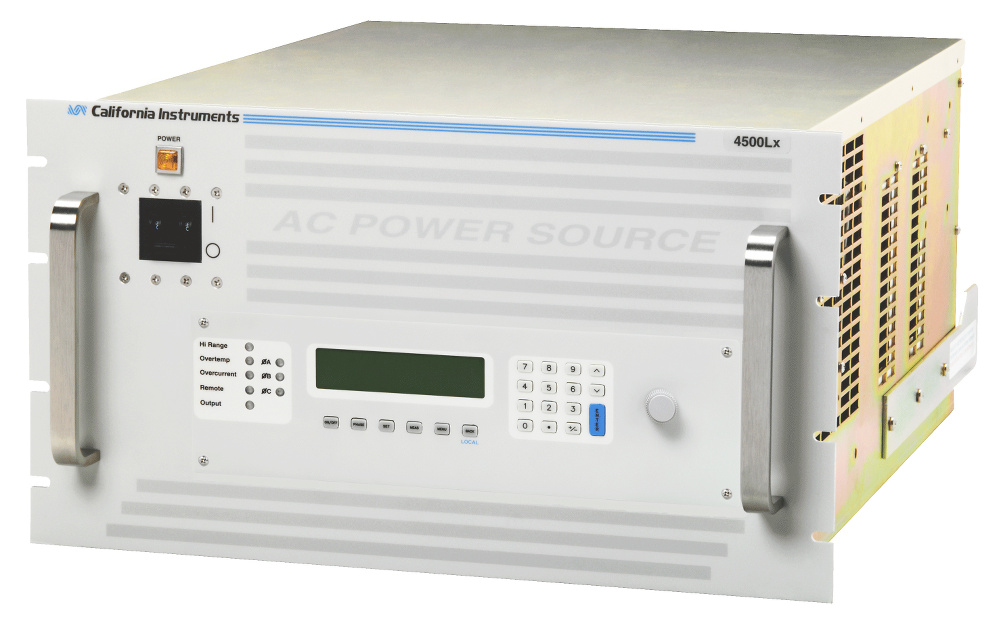

California Instruments LX Series

AC Power Source and analyzer 3 to 18kVA, single or 3-phase, RS232/USB and GPIB

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Lx Series represents a modern AC power source that addresses increasing demands on test equipment to perform more functions at a lower cost. By combining a flexible AC power source with a high-end harmonic power analyzer, the Lx Series systems are capable of handling applications that would traditionally have required multiple instruments.
The Lx Series is completely microprocessor controlled and can be operated from a simple front panel keypad. A pair of analogue controls located next to the backlit alphanumeric LCD display allows output voltage and frequency to be slewed up or down dynamically.


With precise output regulation and accuracy, high load drive current, multi or single phase mode and built-in power analyzer measurement capabilities, Lx Series AC source/analyzers address many application areas for AC power testing. Additional features, like line arbitrary waveform generation and available DO 160 or MIL 704 test standards, make the Lx Series a good choice for avionics or defence applications.


All Lx Series AC sources are equipped with IEEE-488 (GPIB) and RS232C remote control interfaces and support SCPI command language programming.

Product Variants

Model Price

12000LX/2

AC Power Source and analyzer 12kVA single phase, 2 chassis
POA

13500LX/3

AC Power Source and analyzer 13.5kVA single phase, 3 chassis
POA

18000LX/3

AC Power Source and analyzer 18kVA single phase, 3 chassis
POA

3000LX

AC Power Source and analyzer 3kVA single phase
POA

4500LX

AC Power Source and analyzer 4.5kVA  single phase
POA

6000LX

AC Power Source and analyzer 6kVA  single phase
POA

9000LX/2

AC Power Source and analyzer 9kVA  single phase, 2 chassis
POA
Model Description Price
-A350
LS/LX option: Airbus Test Software POA
-ABD
LS/LX option: Airbus ABD0100.1.8 test software suite POA
-AIRB
LS/LX option: Airbus ABD0100.1.8, AMD 24 and A350 combination test software suite POA
-AMD
LS/LX option: Airbus AMD24 Test Software POA
-AX
LS/LX option: Auxiliary Output 5V / 26V AC POA
-B787
LS/LX option: Boeing 787 Test, Rev. C POA
-EHV
LS/LX option: Transformer 200 / 400V Range POA
-EXS
LS/LX option: External Sync POA
-FC
LS/LX option: Modified Output Frequency Control to 0.25% POA
-HF
LS/LX option: High Frequency 5 kHz output POA
-L22
LS/LX option: Locking knobs, shaft locks POA
-LAN
LS/LX option: LXI Ethernet Interface (disables RS232) POA
-LF
LS/LX option: Low Frequency, 500 Hz Max output POA
-LKM
LS/LX option: Clock and Lock Master POA
-LKS
LS/LX option: Clock and Lock Auxiliary POA
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
