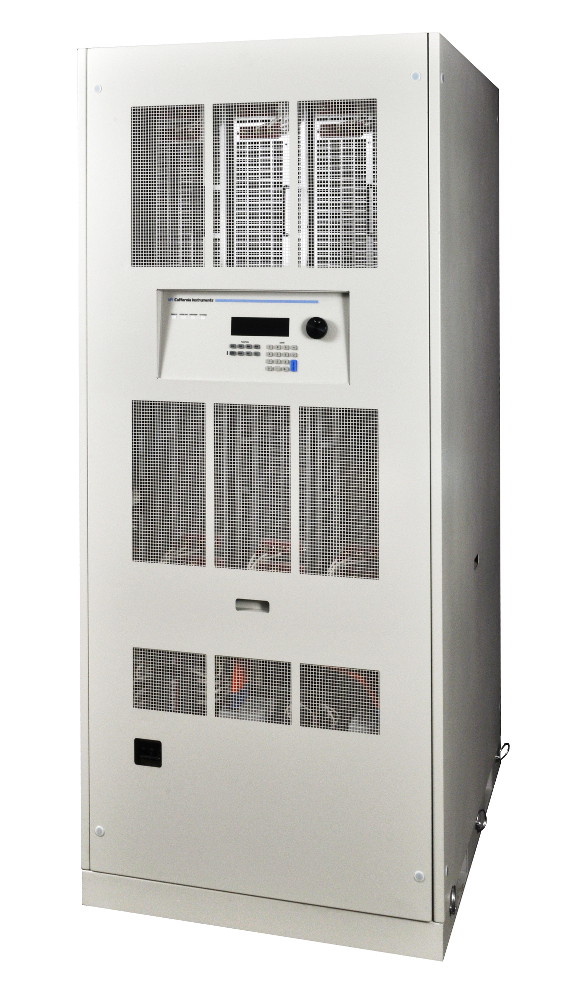

California Instruments RS Series

High power AC source/analyzer. Models from 90 to 540kVA.

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The RS Series consists of multiple high power AC and DC power systems that provide controlled AC and DC output for ATE and product test applications.

This high power AC and DC test system covers a wide spectrum of AC and DC power applications at an affordable cost. Using state-of-the-art PWM switching techniques, the RS series combines compactness, robustness and functionality in a compact floor-standing chassis, no larger than a typical office copying machine. This higher power density has been accomplished without the need to resort to elaborate cooling schemes or additional installation wiring. Simply roll the RS unit to its designated location (using included casters), plug it in, and the RS series is ready to work for you.

Configurations
The RS90 delivers up to 90 kVA of AC or AC + DC power. In DC mode, 50% of the AC power level is available. On RS-Pi models, AC+DC mode is also supported.

For higher power requirements, the RS180, RS270, RS360, RS450 and RS540 models are available. Available reconfigurable RS models (-MB designation) provide multiple controllers which allow separation of the high power system into up to six individual RS90 units for use in separate applications. This ability to reconfigure the system provides an even greater level of flexibility not commonly found in power systems.  Due to the range of options and accessories combined with the specialized nature of this system, please contact us for details.

Product Variants

Model Price

RS Series

High power AC source/analyzer. Contact us for more information about this series
POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
