Chroma 61500 Series

Programmable AC Source with models from 500VA to 18kVA

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Compact size and weight due to advance PWM technology
  • AC+DC output mode for DC offset simulation
  • Programmable output impedance for IEC 61000-3-3
  • IEC 61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation
  • Harmonics, interharmonics waveform synthesizer for IEC 61000-4-13 testing
  • Power line disturbance (PLD) simulation capability
  • Programmable voltage and current limit settings
  • Comprehensive measurement capability, including current harmonics
  • High output current crest factor, ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates output transient
  • Optional analogue programmable interface
  • 2 units combined in series for high Voltage source (Model 61501~61505)
  • 3 units combined to 3-phase power output (Model 61501~61505)
  • Optional GPIB and RS-232 interfaces (Model 61501~61505)
  • Easy use graphic user interface: softpanel (Option)
  • Softpanel for IEC regulation test
  • Capable of delivering power output up to 90KVA by implementing Master-slave parallel operation

Product Variants

Model Price

61501

Programmable AC Source 0~300V, 15~1kHz/500VA, 1Φ
POA

61502

Programmable AC Source 0~300V, 15~1kHz/1kVA, 1Φ
POA

61503

Programmable AC Source 0~300V, 15~1kHz/1.5kVA, 1Φ
POA

61504

Programmable AC Source 0~300V, 15~1kHz/2kVA, 1Φ
POA

61505

Programmable AC Source 0~300V, 15~1kHz/4kVA, 1Φ
POA

61507

Programmable AC Source 0~350V, 15Hz~2kHz/3kVA, 1 or 3Φ
POA

61508

Programmable AC Source 0~350V, 15Hz~2kHz/4.5kVA, 1 or 3Φ
POA

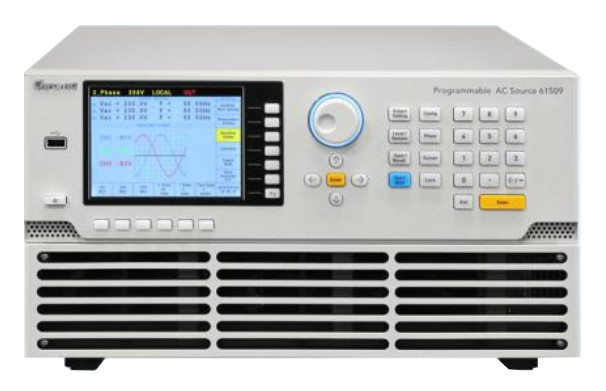

61509

Programmable AC Source 0~350V, 15Hz~2kHz/6kVA, 1 or 3Φ
POA

61511

Programmable AC Source 0~300V, 15~1.5kHz/12kVA, 1 or 3Φ
POA

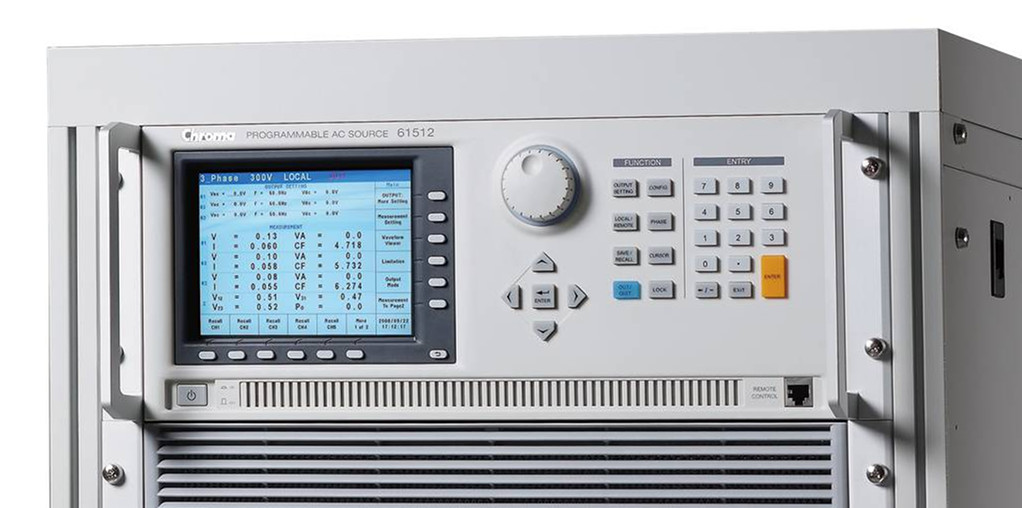

61512

Programmable AC Source 0~300V, 15~1.5kHz/18kVA, 1 or 3Φ
POA
Model Description Price
A610004
Universal Socket Center for Model 6512/6520/6530/6560/6415/6420/6430/61500/61600 series POA
A615001
Remote Interface board for 61500/61600/61700 Series (External V Input, RS-232 interface, GPIB Interface) POA
A615002
Remote Interface Board (LAN and USB) for model 61500/61600/61700 Serie POA
A615003
AC Transform Unit POA
A615008
DC Noise Filter for 61500/61600 Series (61x01-61x05 only) POA
A615103
Parallelable Power Stage unit 18kW 1Φ or 3Φ for Model 61511/61512/ 61611/61612 POA
A615104
Input/Output terminals for parallel connecting 2 units of 61511/61512/61611/61612 POA
A615105
Input/Output terminals for parallel connecting 3 units of 61511/61512/61611/61612 POA
A615106
Reverse current protective unit POA
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
