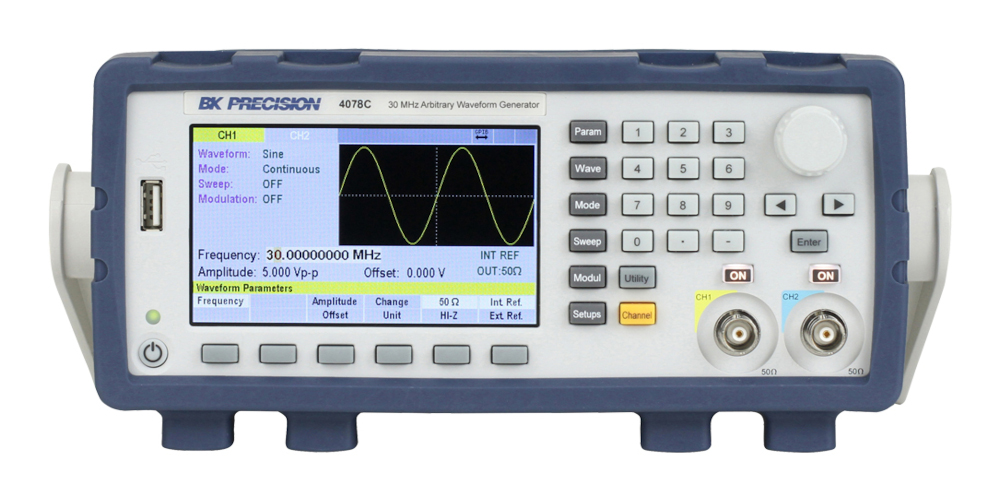

BK Precision 4078C Series
Arbitrary Function Waveform Generator series with 30 and 50 MHz versions
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
The 4078C Series Arbitrary/Function Waveform Generators are dual-channel arbitrary waveform generators with 16-bit amplitude resolution. They provide variable output voltages from 0 to 10 Vp-p into 50 ohms, up to 20 Vp-p into an open circuit, and a continuously variable DC offset to bias the output signal at a desired level.
- Generate waveforms up to 30 MHz (4078C) and 50 MHz (4079C)
- 2 channels with dedicated output ON/OFF buttons for each channel
- Up to 250 MSa/s sampling rate
- Waveform length up to 4 Mpts/ch
- Amplitude range of 0 to 10 Vpp into 50 Ω or up to 20 Vpp into an open circuit
- 16-bit amplitude resolution
- Linear and logarithmic sweep
- Modulation techniques include: AM, FM, PM, BPSK and FSK
- Adjustable duty cycle
- Continuous, triggered, burst, and gate modes
- Internal/external triggering and programmable markers
- Variable DC offset ±5 V
- Low jitter < 25 ps
- NISPOM-compliant sanitization to securely restore factory settings
- USB (USBTMC-compliant) and LAN interfaces standard
- 4.3-inch LCD and Internal memory to store/recall instrument setups
- Closed-case calibration
- Overload protection of the outputs
- cTUVus certification mark fulfils CSA and UL safety standards
Product Variants
Model | Price | |
---|---|---|
4078CArbitrary Function Waveform Generator 30 MHz |
POA | |
4079CArbitrary Function Waveform Generator 50 MHz |
POA | |
4079C-GPIBArbitrary Function Waveform Generator 50 MHz with GPIB |
POA |
