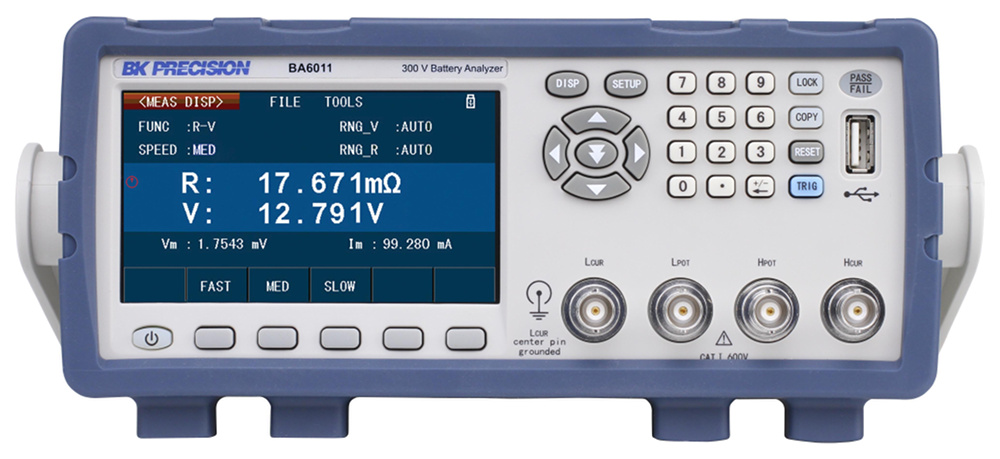

BK Precision BA6010 Series

Battery Analyzer with 60V and 300V models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The BA6010 Series battery analyzers measure voltage and resistance of modern battery technologies with high accuracy, resolution and speed. Additionally, these instruments provide auxiliary measurement parameters including inductance, capacitance, dissipation factor, impedance, quality factor, reactance, and phase angle in degrees and radians.

The BA6010 Series is suitable for characterizing battery chemistries that are responsive to a 1 kHz AC stimulus signal, including lead acid, lithium and alkaline type batteries used in consumer products, electric vehicles, power backup, security, and fire alarm systems.

Model BA6011 supports voltage measurements of battery packs up to 300 V whereas the BA6010 features 6 V and 60V measurement ranges, ideal for battery cell testing. The handler and remote interfaces expand the analyzer’s application to R&D and automated manufacturing environments.


Product Variants

Model Price

BA6010

Battery Analyzer 6V/60V ranges 		POA

BA6011

Battery Analyzer 30V/300V ranges 		POA
