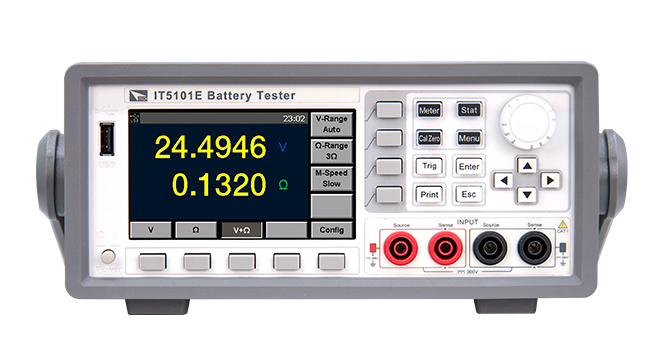

ITECH IT5100 Series
IT5100 series is a series of battery internal resistance testers with high precision, high resolution and high speed. IT5100 adopts AC 4-terminal sensing, that means the tester can test internal resistance and voltage simultaneously with high precision. Resistance resolution is down to 0.1 μΩ, voltage resolution is 10 μV. Combined with external USB drive, the IT5100 is available for long-term statistics calculations. With a built-in comparator function, the IT5100 can automatically determine whether the battery parameters meet the standards and count pass rate, which is suitable for a variety of battery test and pick applications. The built-in GPIB, USB and LAN interfaces support SCPI. A single IT5102 supports 16 channels of battery measurement. With master- slave connections this can be brought up to 272 channels to greatly improve testing efficiency. The IT5100 series can be widely applied in cellphone lithium batteries, electric vehicle batteries and other battery inspection and sorting applications.
