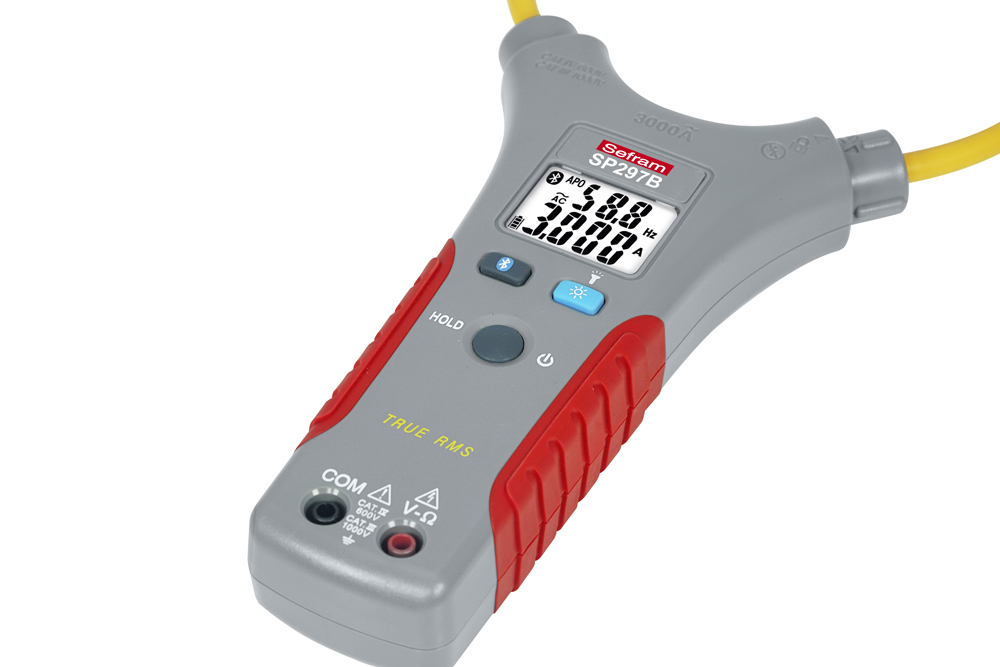

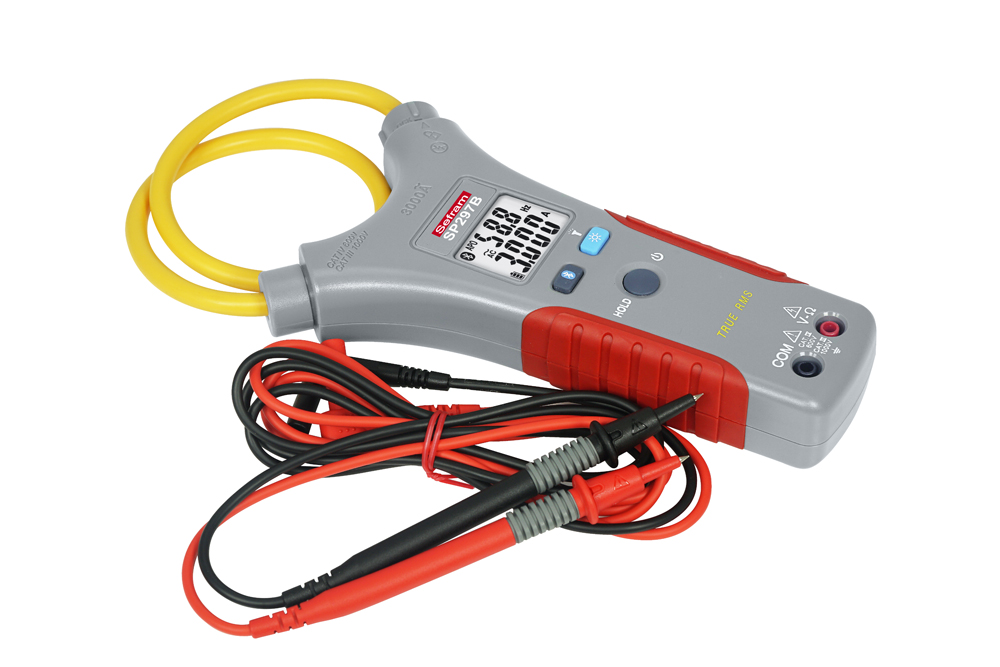

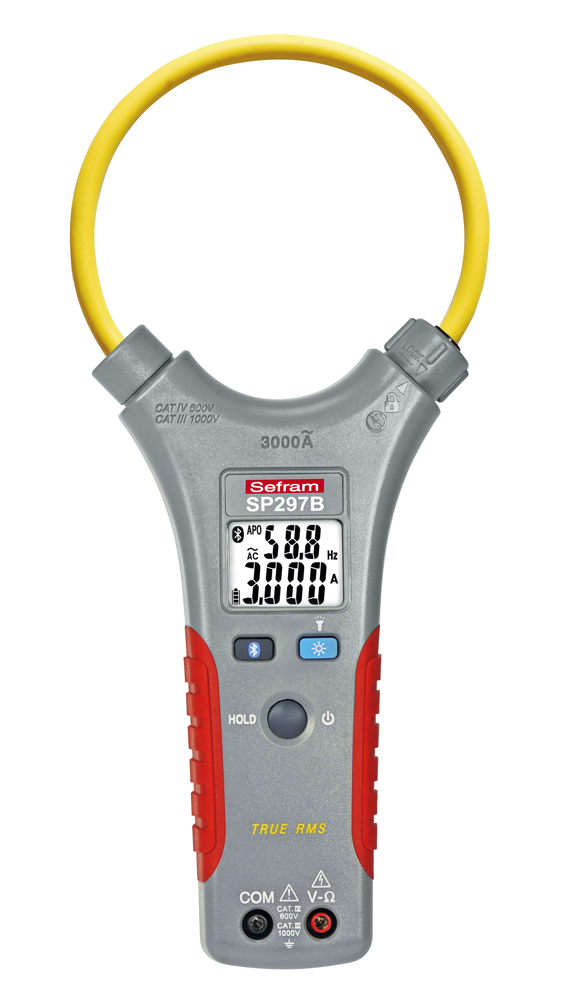

Sefram SP 297B

All-in-one Flexible AC Current Probe Meter

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

In addition to the basic multimeter functions such as voltage, frequency, resistance, continuity, the SP 297B also can perform current measurements up to 3000A AC using the flexible loop probe.

With its Bluetooth interface you can monitor your measurements and record them in real time on your phone or tablet using the dedicated app (Android or iOS).  The recorded data can be downloaded and exported via the tablet or the smartphone in .csv format for display or processing in a spreadsheet or other software.

  • 254mm long flex - approx. 100mm diameter loop
  • 10000 count LCD dual reading display with backlight
  • Fully automatic measurements
  • Current measurement up to 3000 A AC
  • Voltage measurement up to 1000 V AC/DC
  • Frequency measurement up to 10 kHz
  • Resistance measurement up to 10 kΩ
  • Continuity with buzzer
  • Simultaneous Voltage and Hz display
  • Simultaneous Current and Hz display
  • True RMS reading on AC A and AC V
  • Bluetooth interface
  • Torch
  • Data Hold

Product Variants

Model Price

SP 297B

All-in-one Flexible AC Current Probe Meter 30/300/3000A with Bluetooth interface 		POA
