Aim-TTi PL Series

Bench/System Linear Regulated DC Power Supply with Smart Analog Controls, Single, Dual or Triple Outputs, 48 to 242 watts, with/without Remote Interfaces

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Single, dual or triple output models
  • Models from 6V/8A up to 60V/1.5A
  • Linear regulation - for the best performance
  • Ultra-compact design - uses up less space
  • True Analogue controls - for ease of use
  • S-Lock function - instantly lock settings
  • V-Span function - customize the voltage range
  • Low current range and current meter averaging
  • DC output switches and "view limits" button
  • Selectable remote sense terminals
  • Independent, Isolated Tracking, Ratio Tracking  and True Parallel modes on dual & triple models
  • High current low voltage output on triple output model

P Version adds:

  • RS-232, USB and LAN (Ethernet)
  • LAN Interface conforms with LXI standard
  • Analogue remote control of V and I (single output  models only)
  • Front and rear terminals

P(G) Version is as P version above plus GPIB interface

Product Variants

Model Price

PL068

Bench/System Linear Regulated DC Power Supply Single Output, 6V/8A, No Interfaces
£309.00

PL068-P

Bench/System Linear Regulated DC Power Supply Single Output, 6V/8A, USB, RS232, LAN(LXI) and Analogue interfaces
£489.00

PL068-P(G)

Bench/System Linear Regulated DC Power Supply Single Output, 0-6V/0-8A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
£549.00

PL155

Bench/System Linear Regulated DC Power Supply Single Output, 15V/5A, No Interfaces
£309.00

PL155-P

Bench/System Linear Regulated DC Power Supply Single Output, 15V/5A, USB, RS232, LAN(LXI) and Analogue Interfaces
£489.00

PL155-P(G)

Bench/System Linear Regulated DC Power Supply Single Output, 0-15V/0-5A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
£549.00

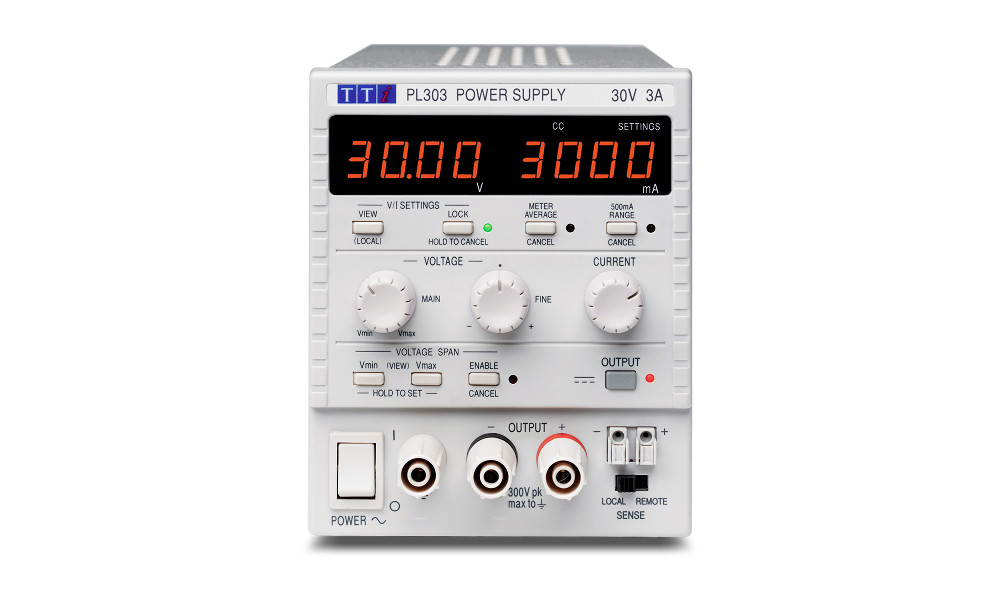

PL303

Bench/System Linear Regulated DC Power Supply Single Output, 30V/3A, No Interfaces
£309.00

PL303-P

Bench/System Linear Regulated DC Power Supply Single Output, 30V/3A, USB, RS232, LAN(LXI) and Analogue Interfaces
£489.00

PL303-P(G)

Bench/System Linear Regulated DC Power Supply Single 0-30V/0-3A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
£549.00

PL303QMD

Bench/System Linear Regulated DC Power Supply Dual Output, 2 x 30V/3A, No Interfaces
£596.00

PL303QMD-P

Bench/System Linear Regulated DC Power Supply Dual Output, 2 x 30V/3A, USB, RS232 & LAN Interfaces
£796.00

PL303QMD-P(G)

Bench/System Linear Regulated DC Power Supply Dual 0-30V/0-3A USB/RS232/LAN(LXI)/GPIB
£855.00

PL303QMT

Bench/System Linear Regulated DC Power Supply Triple Ouput, 2 x 30V/3A plus 6V/6A, No Interfaces
£854.00

PL303QMT-P

Bench/System Linear Regulated DC Power Supply Triple Ouput, 2 x 30V/3A plus 6V/6A, USB, RS232 & LAN Interfaces
£1,050.00

PL303QMT-P(G)

Bench/System Linear Regulated DC Power Supply Triple 0-30V/0-3A, 0-6V/0-8A USB, RS232, LAN(LXI) and GPIB interfaces
£1,114.00

PL601

Bench/System Linear Regulated DC Power Supply Single Output, 60V/1.5A, No Interfaces
£309.00

PL601-P

Bench/System Linear Regulated DC Power Supply Single Output, 60V/1.5A, USB, RS232 & LAN Interfaces
£489.00

PL601-P(G)

Bench/System Linear Regulated DC Power Supply Single 0-60V/0-1.5A USB, RS232, LAN(LXI), Analogue and GPIB interfaces
£549.00
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
RM460
4U Rack Mount for CPX, MX, QPX and PL/PLH Series 3U PSUs.
£145.00
