Advanced Test and Measurement
Instruments and Power Supplies

BK Precision BK1760 Series

Triple output DC power supply

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

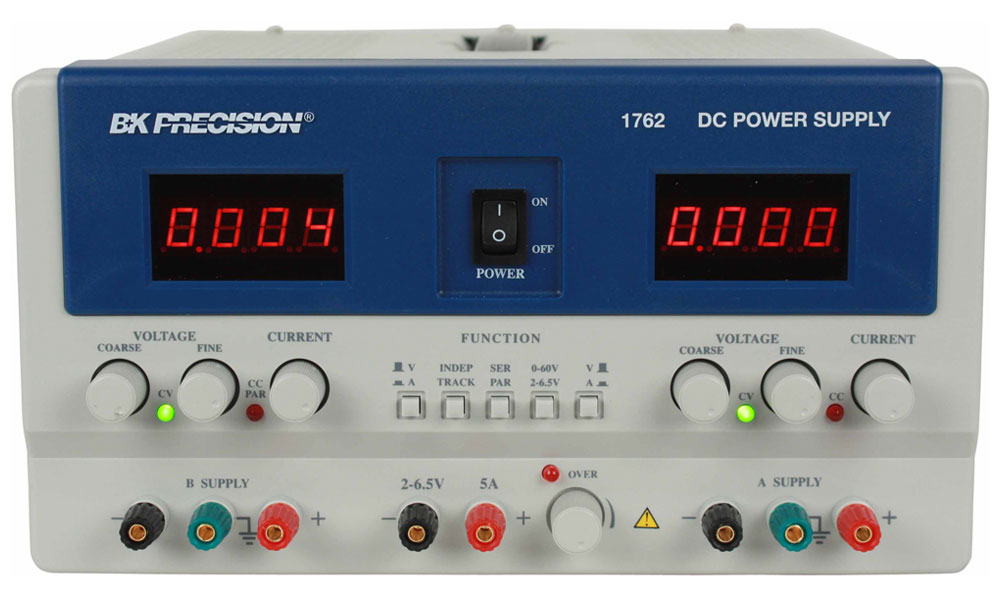

The 1760A, 1761, and 1762 triple output DC power supplies offer three independent outputs with two 4-digit LED displays and 10 mV/1 mA resolution. The coarse and fine voltage control knobs make it an ideal supply for power-sensitive applications. These power supplies also provide overload and reverse polarity protection.

  • CV (constant voltage)/CC (constant current) mode operation
  • Continuously monitor voltage and current output on two 4-digit LED displays
  • Coarse and fine voltage controls
  • Series tracking and parallel tracking mode operation to double output voltage or current respectively
  • Overload and reverse polarity protection
  • low ripple
  • cUL approved (models 1760A & 1761 only)

Product Variants

Model Price

BK1760A

Triple output DC power supply 2 x 0-30V, 0-2A outputs and 1 x 4 - 6.5V, 5A output 		POA

BK1761

Triple output DC power supply 2 x 0-35V, 0-3A outputs and 1 x 2-6.5V, 5A output 		POA

BK1762

Triple output DC power supply 2 x 0-60V, 0-2A outputs and 1 x 4-6.5V, 4A output 		POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
