Chroma 62000E Series

1U DC Power supply with 1 and 3 channel models from 1.7kW to 5kW

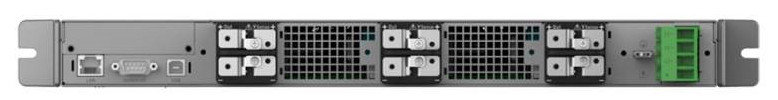

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Voltage rating: Up to 1200V
  • Current rating: 22.5A max.
  • Single output models: 1.7kW, 3.4kW, 5kW
  • Multiple output models: 3 x 1.7kW channels in 1U
  • Master/slave parallel up to a max of 20kW
  • Fixed or Auto-ranging output models
  • Auto sequence programming
  • CV/CC modes priority
  • High-precision measurement
  • High speed transient response <1ms
  • Low output ripple & noise
  • Intuitive and user-friendly touch screen
  • Standard USB/LAN/LXI interfaces
  • Optional APG, CAN FD, GPIB, and master/slave parallel control interfaces
  • AC input: 1-phase/3-phase 200~240Vac or 3-phase 380~400Vac (series dependent)

Product Variants

Model Price

62017E-230

1U DC Power supply 1.7kW (230V / 7.5A) 		POA

62017E-230-3

1U DC Power supply 1.7kW (230V / 7.5A) - 3ch 		POA

62017E-300

1U DC Power supply 1.7kW (300V / 6.8A) 		POA

62017E-300-3

1U DC Power supply 1.7kW (300V / 6.8A) - 3ch 		POA

62017E-450

1U DC Power supply 1.7kW (450V / 4.5A) 		POA

62017E-450-3

1U DC Power supply 1.7kW (450V / 4.5A) - 3ch 		POA

62017E-600

1U DC Power supply 1.7kW (600V / 3.4A) 		POA

62017E-600-3

1U DC Power supply 1.7kW (600V / 3.4A) - 3ch 		POA

62017E-600P

1U DC Power supply 1.7kW autoranging (600V / 7.5A) 		POA

62017E-600P-3

1U DC Power supply 1.7kW autoranging (600V / 7.5A) - 3ch 		POA

62034E-1000

1U DC Power supply 3.4kW (1000V / 4.1A) 		POA

62034E-1200

1U DC Power supply 3.4kW (1200V / 3.4A) 		POA

62034E-1200P

1U DC Power supply 3.4kW autoranging (1200V / 7.5A) 		POA

62034E-230

1U DC Power supply 3.4kW (230V / 15A) 		POA

62034E-300

1U DC Power supply 3.4kW (300V / 13.6A) 		POA

62034E-450

1U DC Power supply 3.4kW (450V / 9A) 		POA

62034E-600

1U DC Power supply 3.4kW (600V / 6.8A) 		POA

62034E-600P

1U DC Power supply 3.4kW autoranging (600V / 15A) 		POA

62034E-800

1U DC Power supply 3.4kW (800V / 5.1A) 		POA

62050E-1000

1U DC Power supply 5kW (1000V / 6A) 		POA

Pages

Model Description Price
A620040
 GPIB Interface POA
A620041
 Analogue Programming interface for single channel 62000E units POA
A620042
 Master/Slave control interface for single channel 62000E units POA
A620043
 Analogue Programming interface for 3 channel 62000E units POA
A620044
 CAN FD/RS232 Interface for 62000E units POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
