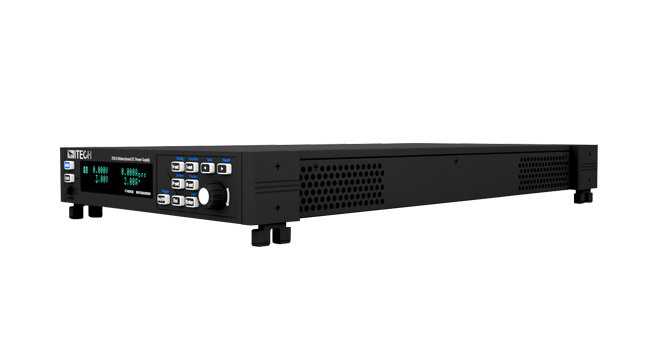

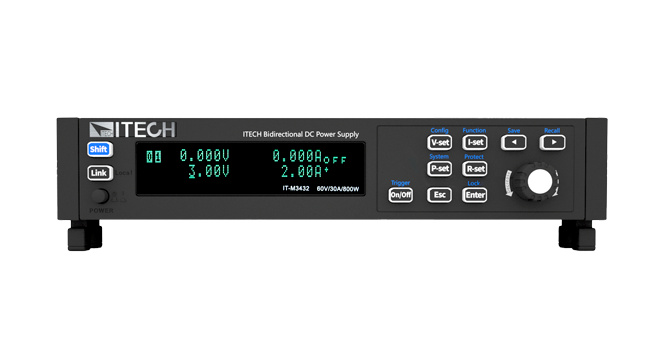

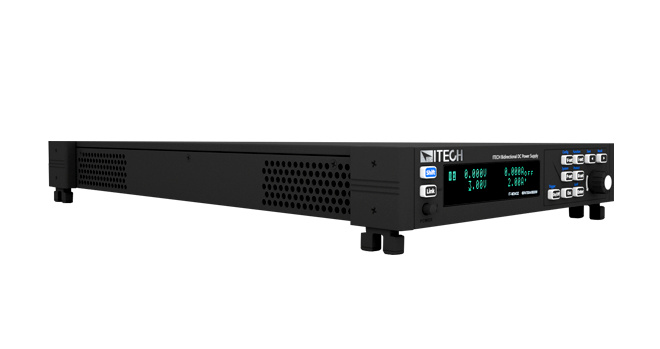

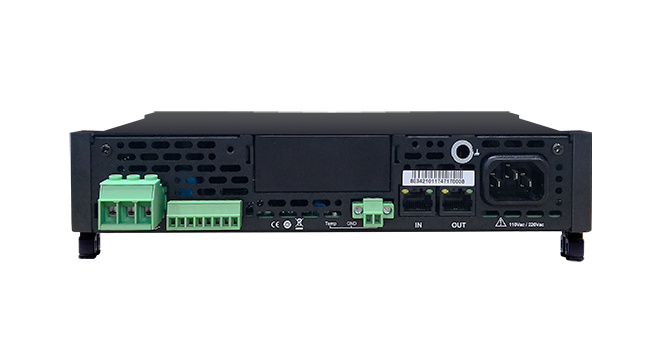

ITECH IT-M3400 Series

Bi-directional programmable DC power supply series with 200 to 800W models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The IT-M3400 bidirectional DC power supply integrates the features of a bidirectional power supply and a regenerative load.

  • 1U half-rack, high power density
  • Bi-directional energy flow with efficient power regeneration
  • Battery test and simulation
  • Independent control of multi-channels with synchronization and proportional tracking
  • Up to 16 units can be paralleled
  • High speed measurement, 10/s update rate
  • CC/CV priority
  • Adjustable output impedance
  • Programmable voltage and current rise and fall time
  • Temperature measurement function, over temperature protection
  • List mode
  • Various protection mechanisms such as OCP, UCP, OVP, OTP, OPP, UVP, over heat protection, grid fault protection and fault storage, foldback, power-off protection and abnormal sense protection
  • Automatic detection of power grid state for reliable grid connection
  • Pre-charge function to prevent overshoot of DC loading current
  • Five optional interface cards supporting RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP, RS485 and analogue


Product Variants

Model Price

IT-M3412

Bi-directional programmable DC power supply 60V/30A/200W 		POA

IT-M3413

Bi-directional programmable DC power supply 150V/12A/200W 		POA

IT-M3414

Bi-directional programmable DC power supply 300V/6A/200W 		POA

IT-M3415

Bi-directional programmable DC power supply 600V/3A/200W 		POA

IT-M3422

Bi-directional programmable DC power supply 60V/30A/400W 		POA

IT-M3423

Bi-directional programmable DC power supply 150V/12A/400W 		POA

IT-M3424

Bi-directional programmable DC power supply 300V/6A/400W 		POA

IT-M3425

Bi-directional programmable DC power supply 600V/3A/400W 		POA

IT-M3432

Bi-directional programmable DC power supply 60V/30A/800W 		POA

IT-M3433

Bi-directional programmable DC power supply 150V/12A/800W 		POA

IT-M3434

Bi-directional programmable DC power supply 300V/6A/800W 		POA

IT-M3435

Bi-directional programmable DC power supply 600V/3A/800W 		POA
Model Description Price
BSS2000 Basic
 Battery simulation software - basic version POA
BSS2000 Pro
 Battery simulation software - pro version POA
IT-E118
 Anti-reverse connection module for  IT-M series POA
IT-E1205
 GPIB communication card for IT-M series POA
IT-E1206
 USB communication card for IT-M series POA
IT-E1207
 RS232/CAN communication card for IT-M series POA
IT-E1208
 Analog/RS485 communication card for IT-M series POA
IT-E1209
 USB communication card for IT-M series POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
IT-E154A
Rack mount kit for two units for IT-M series 		POA
Accessories
IT-E154B
Rack mount kit for one unit for IT-M series 		POA
Accessories
IT-E154C
Slide rail kit to be used with IT-E154A or IT-E154B 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Embedded thumbnail for ITECH IT-M3400 Series 3 minute introduction

ITECH IT-M3400 Series 3 minute introduction

Embedded thumbnail for ITECH IT-M Series Multi-channel control

ITECH IT-M Series Multi-channel control
