Advanced Test and Measurement
Instruments and Power Supplies

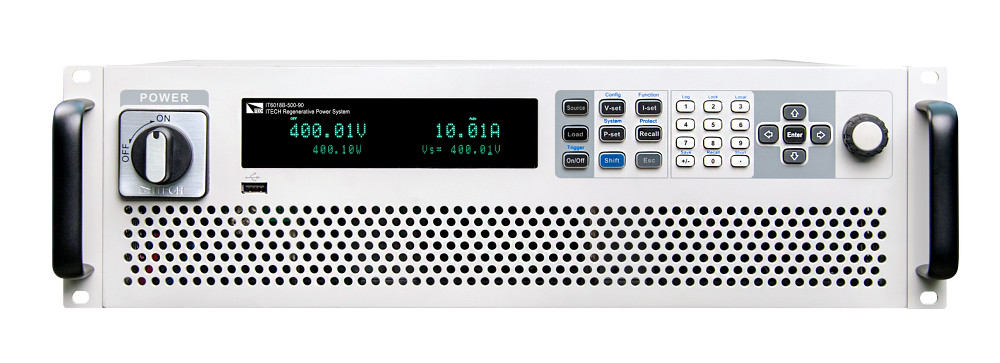

ITECH IT6000B Series

Regenerative Power System with models from 5 to 144kW

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Bi-directional device – power supply and electronic load in one
  • High efficient energy recovery
  • One button switch between source and sink on panel
  • Supports solar panel I-V curves simulation
  • Stand-alone power up to 144kW, expandable in parallel up to 1.152MW
  • Built-in waveform generator, capable of generating arbitrary waveforms
  • Voltage output ratings: 0-2250V
  • Adjustable output impedance
  • Current output ratings: 0-2040A
  • Complete protection, support OVP, ±OCP, ±OPP, OTP, voltage transient drop protection and anti-islanding protection
  • High power density design provides 18kW in 3U space
  • Bi-directional energy transmission, seamless switching across two quadrants
  • Built-in USB, CAN and LAN digital IO interfaces, Optional GPIB/Analogue and RS232
  • Supports CC/CV loop speed and priority setting
  • Built-in voltage curves comply with DIN 40839, ISO-16750-2/ISO21848, LV124, LV123 and LV148 automotive standards
  • Supports data saving with a sampling interval down to 10μs
  • Battery simulation function

Product Variants

Model Price

IT6005B-80-150

Regenerative Power System 5KW, 80V/150A
POA

IT6006B-300-75

Regenerative Power System 6kW, 300V/75A
POA

IT6006B-500-40

Regenerative Power System 500V/40A/6kW
POA

IT6006B-800-25

Regenerative Power System 6kW, 800V/25A
POA

IT6010B-80-300

Regenerative Power System 10KW, 80V/300A
POA

IT6012B-300-150

Regenerative Power System 12kW, 300V/150A
POA

IT6012B-500-80

Regenerative Power System 500V/80A/12kW
POA

IT6012B-800-50

Regenerative Power System 12kW, 800V/50A
POA

IT6015B-80-450

Regenerative Power System 15KW, 80V/450A
POA

IT6015B-80-450S

Regenerative Power System 15KW, 80V/450A
POA

IT6018B-1500-40

Regenerative Power System 1500V/40A/18kW
POA

IT6018B-1500-40S

Regenerative Power System 1500V/40A/18kW -slave
POA

IT6018B-2250-25

Regenerative Power System 18KW, 2250V/25A
POA

IT6018B-2250-25S

Regenerative Power System 18KW, 2250V/25A
POA

IT6018B-300-225

Regenerative Power System 18kW, 300V/225A
POA

IT6018B-300-225S

Regenerative Power System 18kW, 300V/225A
POA

IT6018B-500-120

Regenerative Power System 500V/120A/18kW
POA

IT6018B-500-120S

Regenerative Power System 500V/120A/18kW -slave
POA

IT6018B-800-75

Regenerative Power System 18kW, 800V/75A
POA

IT6018B-800-75S

Regenerative Power System 18kW, 800V/75A
POA

Pages

Model Description Price
BSS2000 Basic
Battery simulation software - basic version POA
BSS2000 Pro
Battery simulation software - pro version POA
FCS3000
Fuel Cell Simulation Software POA
SAS1000
Solar Array Simulation Software POA
SAS1000L
Solar Array Simulation Software for systems ≤15kW POA
SAS1000M
Solar Array Simulation Software for IT6500C/IT6000B/IT6000C (multi-channel, ≤ 20 channels) POA
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
Embedded thumbnail for  ITECH IT6000B Regenerative Power System Seamless Switching

ITECH IT6000B Regenerative Power System Seamless Switching

Embedded thumbnail for ITECH Operation of IT6000 Series

ITECH Operation of IT6000 Series
