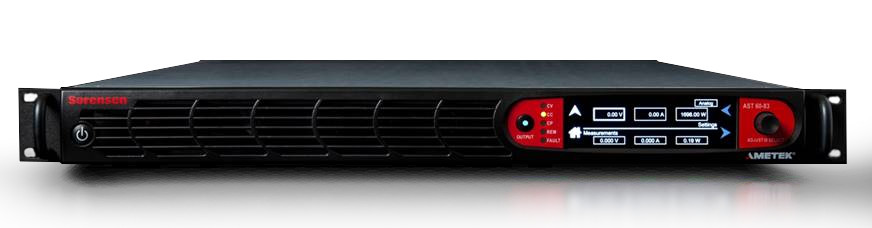

Sorensen Asterion DC

Programmable DC Power Supply with models from 1.7kW to 10kW

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Asterion DC series from Sorensen (A division of Ametek Programmable Power) is a  range of high power density 1U and 2U programmable DC power supplies with fixed range or autoranging models  from 1.7kW to 10kW rated output power.

The Asterion DC series is digitally controlled and can be operated either from its multilingual touchscreen interface, or remote controlled using the standard Ethernet LXI, USB and RS232 interfaces or the optional GPIB interface. Using Asterion DC Virtual Panels (Graphical User Interface software) it is possible to monitor and fully control the units remotely without the need for the front panel display. It also supports auto-parallel operation for higher power output configurations.

Sorensen Asterion DC Power supplies have a 5 year warranty.

Product Variants

Model Price

AST100-100

Programmable DC Power Supply 10kW, 100V/100A, 2U
POA

AST100-17

Programmable DC Power Supply 1.7kW, 100V/17A, 1U
POA

AST100-34

Programmable DC Power Supply 3.4kW, 100V/34A, 1U
POA

AST100-50

Programmable DC Power Supply 5kW, 100V/50A, 1U
POA

AST150-12

Programmable DC Power Supply 1.7kW, 150V/12A, 1U
POA

AST150-23

Programmable DC Power Supply 3.4kW, 150V/23A, 1U
POA

AST150-34

Programmable DC Power Supply 5kW, 150V/34A, 1U
POA

AST150-67

Programmable DC Power Supply 10kW, 150V/67A, 2U
POA

AST200-100AR

Programmable DC Power Supply 10kW, 200V/100A, Autoranging, 2U
POA

AST200-17

Programmable DC Power Supply 3.4kW, 200V/17A, 1U
POA

AST200-17AR

Programmable DC Power Supply 1.7kW, 200V/17A, Autoranging, 1U
POA

AST200-25

Programmable DC Power Supply 5kW, 200V/25A, 1U
POA

AST200-34AR

Programmable DC Power Supply 3.4kW, 200V/34A, Autoranging, 1U
POA

AST200-50

Programmable DC Power Supply 10kW, 200V/50A, 2U
POA

AST200-50AR

Programmable DC Power Supply 5kW, 200V/50A, Autoranging, 1U
POA

AST200-9

Programmable DC Power Supply 1.7kW, 200V/9A, 1U
POA

AST300-11

Programmable DC Power Supply 3.4kW, 300V/11A, 1U
POA

AST300-17

Programmable DC Power Supply 5kW, 300V/17A, 1U
POA

AST300-34

Programmable DC Power Supply 10kW, 300V/34A, 2U
POA

AST300-6

Programmable DC Power Supply 1.7kW, 300V/6A, 1U
POA

Pages

No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
