Sorensen i-BEAM

Bi-Directional, Regenerative DC Power System with a wide range of configuration options

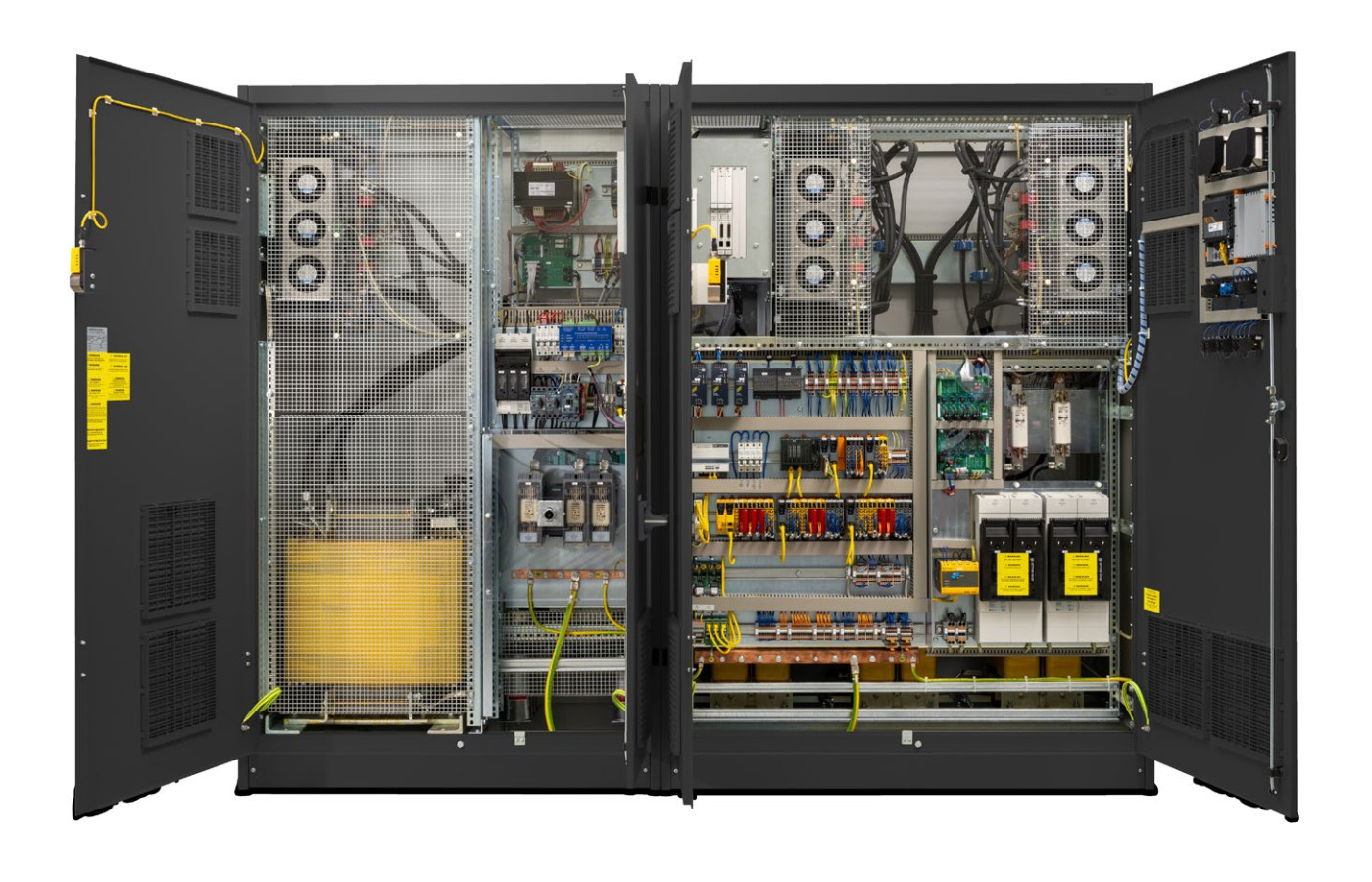

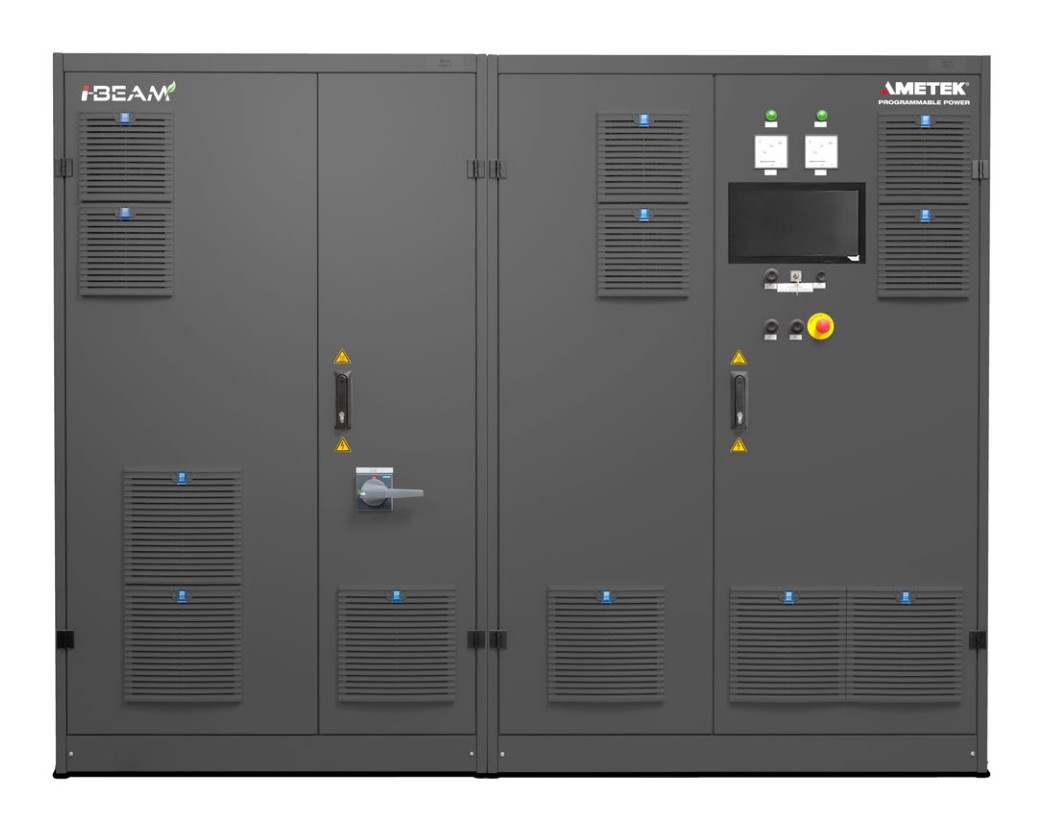

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Sorensen i-BEAM Series by Ametek Programmable Power features full DC source and sink capabilities with power levels from 60 kW up to 1.3 MW. A single unit is scalable up to 650kW and a system is scalable up to 1.3MW with multiple units in parallel. The available voltage ranges of 80V, 300V, 600V, 800V and 1,000VDC provide full power up to 1,000A within a single system. Single-channel, 2-channel and 4-channel configurations are available.

  • Single system power up to 650 kW
  • Parallel system power up to 1.3 MW
  • Bidirectional output voltage up to 1,000 V
  • Bidirectional output current up to ±1,000 A, up to ±2,000A in parallel
  • Available in 1, 2 or 4 channel configurations
  • Multiple channel units share internal DC bus up to 2MW without drawing additional power from the AC grid
  • Regenerative to 96%
  • Large 15-inch colour touch panel
  • Short circuit proof
  • Designed for safety to EN ISO 13849-1
  • Dedicated battery testing/simulation modes
  • Seamless transition between source and sink
  • High reliability, long life components




Product Variants

Model Price

i-BEAM

Bi-Directional, Regenerative DC Power System - contact us for details 		POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
