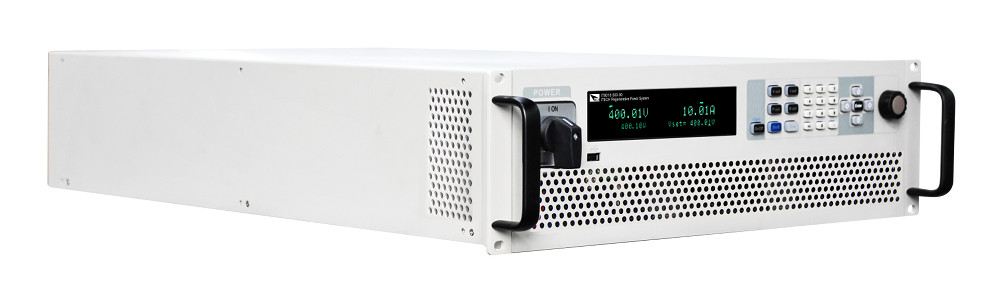

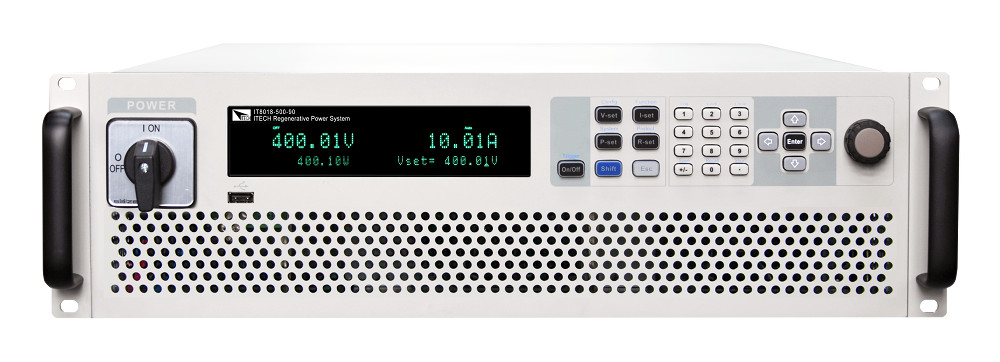

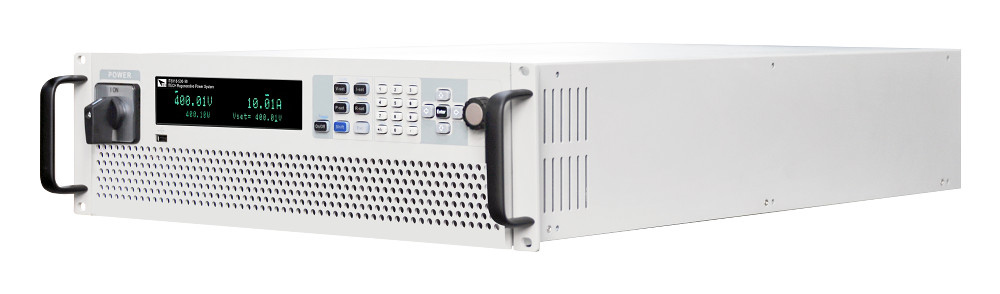

ITECH IT8000 Series

Regenerative Electronic Load with models from 5 to 144kW

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Recover DC energy to local grid with efficiency up to 95%

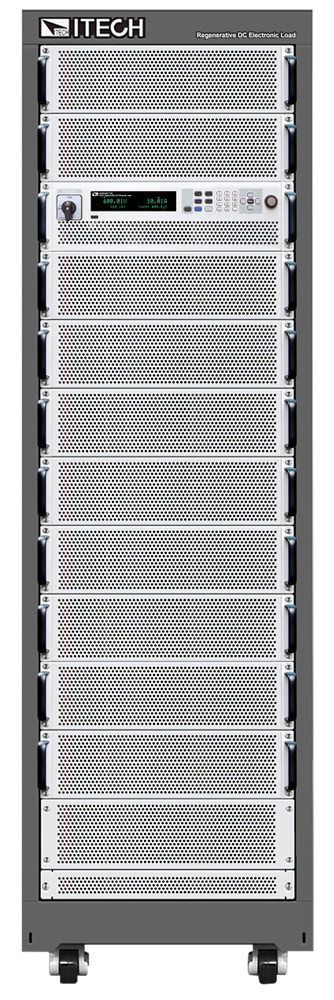

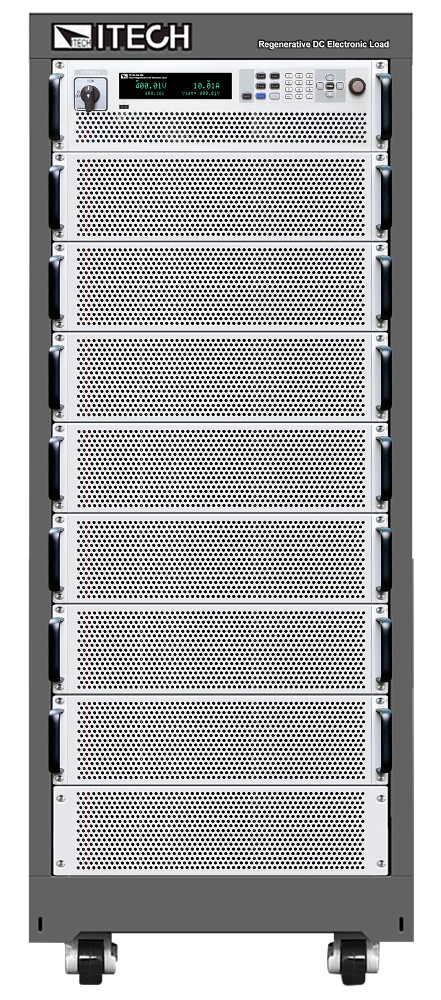

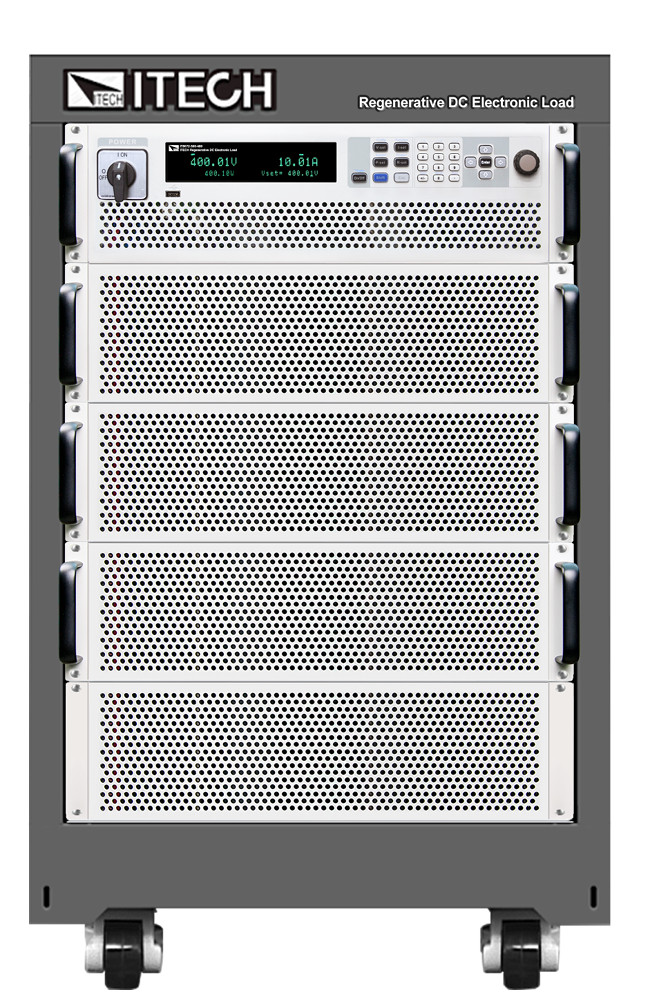

  • Stand-alone power up to 144kW, expandable by master-slave paralleling up to 1152kW
  • Stand-alone input voltage up to 2250V
  • Stand-alone input current up to 2040A
  • High power density design provides 18kW in 3U space
  • Built-in waveform generator, support generating arbitrary waveforms
  • LIST function, support importing LIST files by USB
  • Power accumulation function
  • Battery test function, auto-test function, short circuit test function
  • With pre-charging function, prevent DC loading current overshoot
  • Full protection: OVP/OCP/OPP/OTP/UVP, Vsense anti-reverse connection protection, and voltage transient drop protection

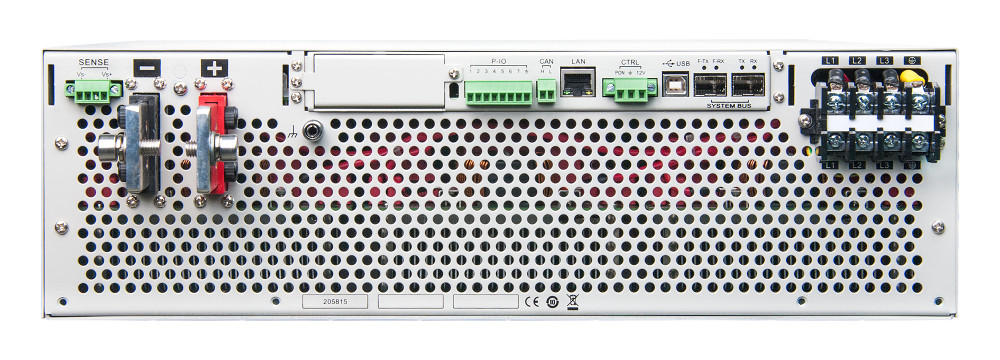

  • Built-in standard USB/CAN/LAN/digital IO interface, and optional
  • GPIB/Analogue&RS232 interfaces
  • Support SCPI protocol, LabVIEW
  • Operating modes: CC/CV/CP/CR/CC+CV/CV+CR/CR+CC/CC+CV+CP+CR

*The regenerated power is for local grid purpose, not for public grid purpose

Product Variants

Model Price

IT8005-80-150

Regenerative Electronic Load 5KW, 80V/150A
POA

IT8006-300-75

Regenerative Electronic Load 6kW, 300V/75A
POA

IT8006-500-40

Regenerative Electronic Load 500V/40A/6kW
POA

IT8006-800-25

Regenerative Electronic Load 6kW, 800V/25A
POA

IT8010-80-300

Regenerative Electronic Load 10KW, 80V/300A
POA

IT8012-300-150

Regenerative Electronic Load 12kW, 300V/150A
POA

IT8012-500-80

Regenerative Electronic Load 500V/80A/12kW
POA

IT8012-800-50

Regenerative Electronic Load 12kW, 800V/50A
POA

IT8015-80-450

Regenerative Electronic Load 15KW, 80V/450A
POA

IT8015-80-450S

Regenerative Electronic Load 15KW, 80V/450A
POA

IT8018-1500-40

Regenerative Electronic Load 1500V/40A/18kW
POA

IT8018-1500-40S

Regenerative Electronic Load 1500V/40A/18kW-slave
POA

IT8018-2250-25

Regenerative Electronic Load 18KW, 2250V/25A
POA

IT8018-2250-25S

Regenerative Electronic Load 18KW, 2250V/25A
POA

IT8018-300-225

Regenerative Electronic Load 18kW, 300V/225A
POA

IT8018-300-225S

Regenerative Electronic Load 18kW, 300V/225A
POA

IT8018-500-120

Regenerative Electronic Load 500V/120A/18kW
POA

IT8018-500-120S

Regenerative Electronic Load 500V/120A/18kW-slave
POA

IT8018-800-75

Regenerative Electronic Load 18kW, 800V/75A
POA

IT8018-800-75S

Regenerative Electronic Load 18kW, 800V/75A
POA
