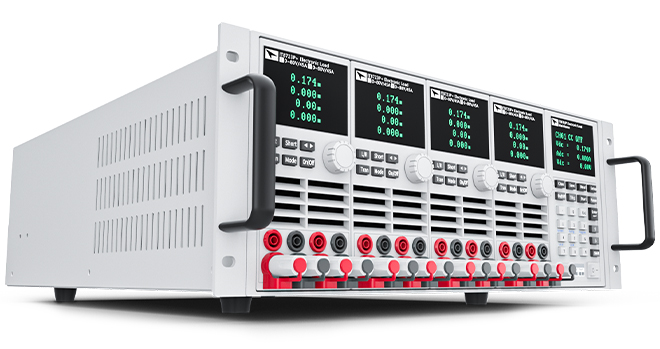

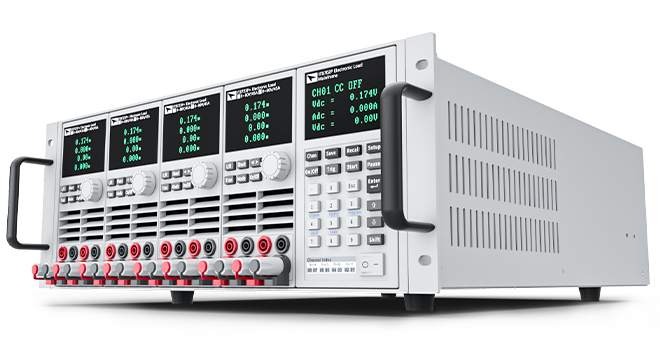

ITECH IT8700P+ Series
High Speed Multi-channel modular DC Load
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
- Three-stage current range, higher accuracy and lower ripple
- Supports master-slave parallel connection of 16-channel modules, flexibly extends power
- Faster dynamic response, minimum current rise time < 10 µs
- Stable operation down to zero volts, suitable for low-voltage capacitors, solar cells, fuel cells, and other low-voltage high current power supplies
- Faster loop speed, precise control of current without overshoot
- The voltage and current measurement speed is upgraded to 250kHz, good for system integration
- Comprehensive protection functions: OVP/OCP/OPP/OTP, Sense protection
- Compatible with IT8700P mainframe, old and new modules can be mixed and matched
- Short-circuit peak current measurement function
- Front and rear terminals (front terminals limited to 15A)
- 8 operating modes: CC/ CV/ CR/ CW/ CV+CC/ CR+ CC/ CW+CC/ CV+CR (CR-LED)
- Automatic test function to tell whether the test results exceed the set specifications
- Built-in LAN, USB, RS232 interfaces
- CV loop speed is adjustable to match different DUTs
- Multi channel synchronous control
Product Variants
| Model | Price | |
|---|---|---|
IT8701PMain Frame with two module bays |
POA | |
IT8702PMain Frame with four module bays |
POA | |
IT8703PExtended Main Frame |
POA | |
IT8721P+150V/20A/100W x 2ch module |
POA | |
IT8722BP+600V/15A/250W x 2ch module (Total 300W) |
POA | |
IT8722P+150V/20A/250W x 2ch module (Total 300W) |
POA | |
IT8723P+150V/45A/300W x 2ch module |
POA | |
IT8731P+200W (150V,40A) module |
POA | |
IT8732BP+300W (600V 20A) module |
POA | |
IT8732P+400W (150V,60A) module |
POA | |
IT8733BP+500W (600V, 30A) module |
POA | |
IT8733P+600W (150V, 120A) module |
POA |
