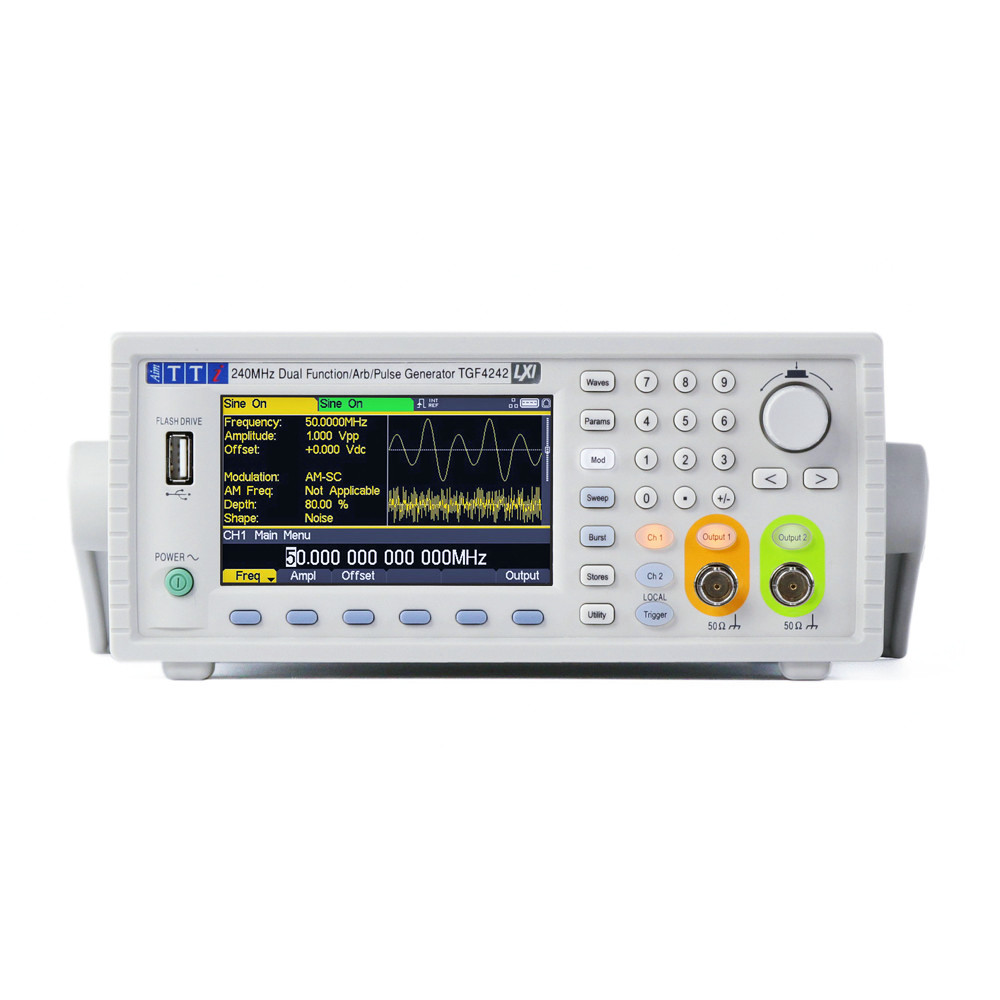

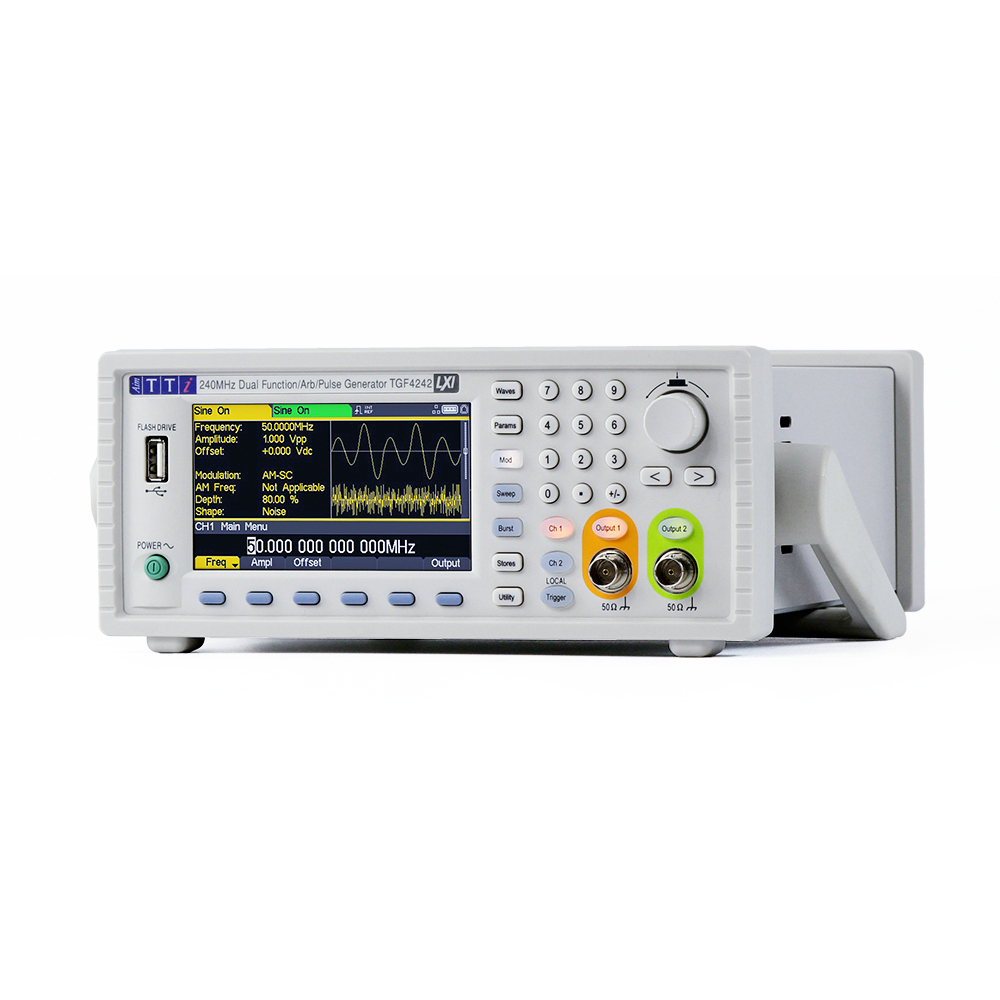

Aim-TTi TGF4000 Series
Dual Channel Arbitrary Function Generator with 40 to 240MHz models
The TGF4000 series of function/arbitrary generators offers signal generation capability up to 240MHz on two identical full performance channels that can operate independently or in coupled or tracking modes. Precise channel to channel phase control with a resolution of 0.001° is provided.
A wide range of built-in waveforms is included and custom arbitrary waveforms can be used at sample speeds up to 800MS/s and replay rates up to 80MHz. PC based arbitrary waveform generation and editing software is provided.
High resolution, low jitter pulses can be generated up to 100MHz as can wide bandwidth white noise. A extensive array of modulations is provided using internal and external sources. Gated, burst and sweep modes can use internal or external trigger sources.
Remote control via USB and LXI compliant LAN (standard) can be supplemented by optional GPIB if required.
