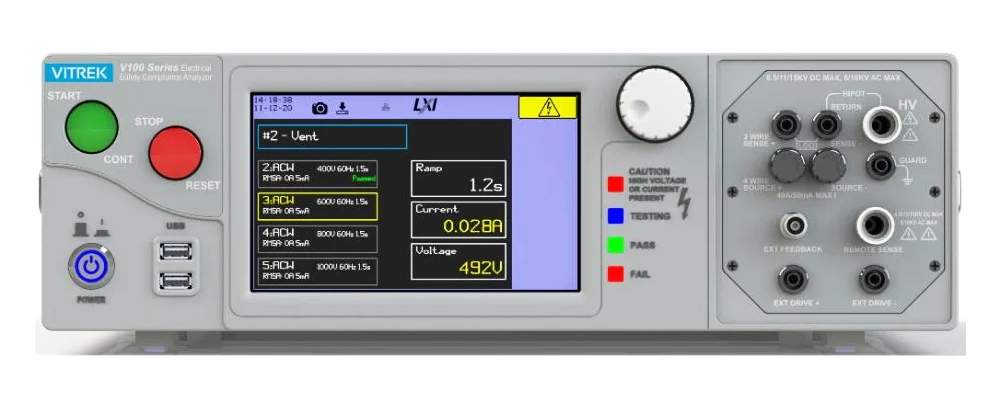

Vitrek V10X Series

The Vitrek V10X Series is an electrical safety testing platform engineered for high-voltage dielectric withstand (hipot), insulation resistance, ground bond, and low-resistance measurement in production and laboratory environments. Combining touchscreen workflow, multi-test capability, and automation-ready architecture, the V10X delivers faster test execution, improved operator efficiency, and scalable integration for manufacturers requiring precision electrical safety verification with comprehensive documentation and compliance traceability.

• Touchscreen for graphical sequence editing and real-time charts
• Configurable test sequencing — 1,000+ steps with ramps, dwells and multi-level IR
• Direct control of up to 1,600 HV scanner channels for multi-point systems
• Built for compliance: UL, IEC, CSA, MIL-STD and DO-160 (400 Hz) testing
• Audit-ready documentation with full measurement traceability
• 100 pA leakage resolution for precise insulation testing
• Advanced arc detection for improved breakdown sensitivity
• 4-wire Kelvin resistance measurement down to 100 µΩ
• Integrated ground bond testing up to 40 A RMS on applicable models
• SCPI automation interfaces via Ethernet, USB, RS232 and optional GPIB
