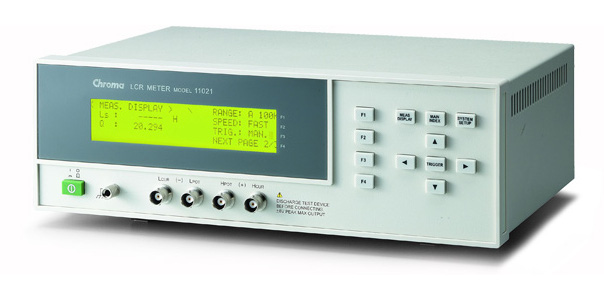

Chroma 11021

LCR meter with different frequency options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Chroma 11021 and 11021-L are cost-effective digital LCR Meters.  An RS-232 interface is standard and optional GPIB & Handler interface, high speed and stable measurement capabilities enable the 11021/11021-L to be used for both component evaluation on the production line and fundamental impedance testing for bench-top applications.

The Chroma 11021/11021-L use lower harmonic distortion phase-detection technology to reduce the effect of hysteresis distortion in magnetic components or high dielectric-coefficient capacitor measurements - something not provided in general low-end LCR Meters.

The 11021-L is the ideal selection for high frequency coil, core, choke, and passive components quality inspection and production automation.

  • Test frequencies:
    • 100Hz, 120Hz, 1kHz and 10kHz (9.6kHz) (11021)
    • 1kHz, 10kHz, 40kHz, 50kHz (11021-L)
  • Basic accuracy: 0.1% (11021), 0.2% (11021-L)
  • 0.1mΩ~99.99 MΩ measurement range, 4½ digits resolution
  • Fast measurement speed (75ms)
  • Bin-sorting function
  • Comparator and pass/fail alarm
  • Text mode 40x4 matrix LCD display
  • Open/short zeroing
  • On-line firmware updatable (via RS-232)
  • Input protection (1 Joule)

Product Variants

Model Price

11021-10K

LCR meter 10kHz
POA

11021-1K

LCR meter 1kHz
POA

11021-L

LCR meter 50kHz
POA
Model Description Price
A110235
GPIB & Handler Interface for Model 16502/11021/11200 POA
A110243
Calibration Standard Set POA
Series Model Price
A110104
SMD Test Cable #17
POA
A110211
Component test fixture
POA
A110212
Component Remote test fixture
POA
A110232
4 BNC Test Cable with Clip #18
POA
A110234
High Frequency Test Cable
POA
A110236
Rack Mounting Kit for Model 16502/11021/11200
POA
A110239
4 Terminal SMD Electrolytic Capacitor Test Fixture
POA
A110242
Battery ESR Test Kit
POA
A133004
SMD Test Box
POA
A165009
4 BNC Test Cable+Probe
POA
