Rohde and Schwarz LCX Series

LCR Meter with frequency and analysis options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

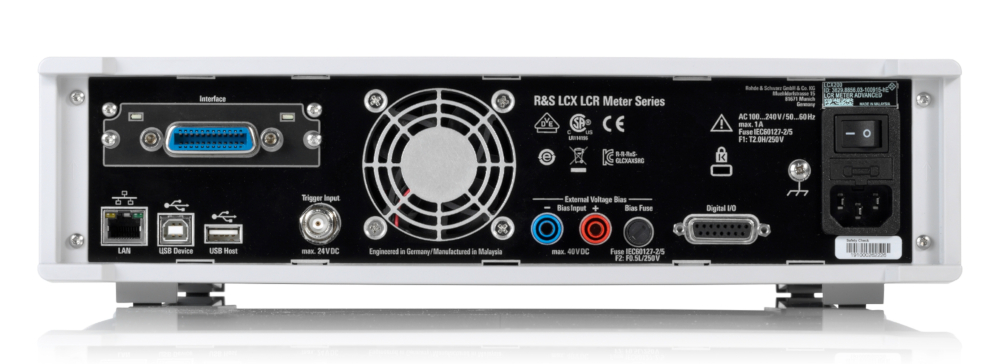

The LCX series consists of two LCR meters: the LCX100 LCR meter covers the frequency range from 4 Hz to 300 kHz while the LCX200 has an upper frequency limit of 500 kHz as standard and can be extended to 1 MHz or 10 MHz using software options when needed. Both instruments offer DC measurements as well. Internally generated voltages of up to 10 V cover most applications, but bias voltages of up to 40 V can be applied externally with LCX-K108 extended bias option. Advanced analysis functions (option LCX-K106) and digital ports with binning functionality (option LCX-K107) are also available.  As standard the instrument is fitted with USB and LAN ports and GPIB is available as an option.

Product Variants

Model Price

LCX100

LCR Meter frequency up to 300 kHz
£2,868.80

LCX200

LCR Meter frequency up to 500 kHz optional up to 10 MHz
£4,752.00
Model Description Price
LCX-K106
Advanced analysis functions for LCX (software licence)
£924.00
LCX-K107
LCX Series Digital I/O ports and binning function (software licence)
£387.20
LCX-K108
LCX Series Extended bias functions (software licence)
£924.00
LCX-K201
Frequency upgrade to 1 MHz for LCX200 (software licence)
£1,936.00
LCX-K210
Frequency upgrade to 10 MHz for LCX200 (software licence)
£7,744.00
NG-B105
IEEE-488 (GPIB) interface for NGP800 and LCX series
£396.00
Series Model Price
LCX-Z1
LCX Series Test fixture for axial/radial lead type devices
£501.60
LCX-Z11
LCX Series BNC extension, length: 1 m
£532.40
LCX-Z2
LCX Series Kelvin clip lead
£708.40
LCX-Z3
LCX Series Test fixture for SMD components
£1,161.60
LCX-Z4
LCX Series Test tweezers for SMD components
£730.40
LCX-Z5
LCX Series Transformer test cables
£756.80
ZZA-GE23
19” rack adapter, 2U for NGP800 and LCX series
£290.40
