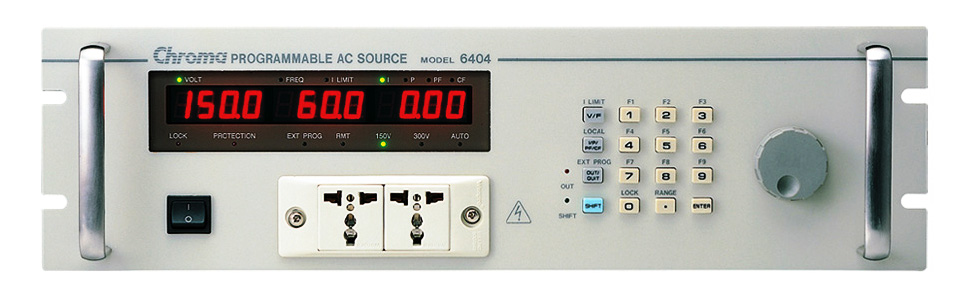

Chroma 6400 Series

DISCONTINUED: Programmable AC Source with models from 1.5kVA to 9kVA

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The 6400 Series is not RoHS compliant.  Please see the 61500 and 61600 Series instead.

The Chroma 6400 series Programmable AC Power Source uses state of the art PWM technology to deliver pure, instrument grade AC power at a very low cost

  • Output Power Ratings:
    • 1500VA,1ø (6415)
    • 2000VA,1ø (6420)
    • 3000VA,1ø (6430),
    • 6000VA,1ø (6460), 1ø or 3ø (6463),
    • 9000VA 1ø or 3ø (6490)
  • Voltage:
    • 0~150V / 0~300V / Auto (6404, 6415, 6420, 6430),
    • 0~150V / 0~300V (parallel) (6460)
    • 0~300V / 0~500V (serial) (6460)
    • 0~150V / 0~300V(6463, 6490)
  • Output distortion less than 0.3%, and peak repetitive current over 2.5 times for rms current
  • High accuracy measurement for RMS voltage, RMS current, true power, frequency, power factor, and current crest factor
  • Built-in power factor correction circuit provides input power factor over 0.98 to meet IEC regulations
  • Programmable current limit
  • Built-in output isolation relays
  • EEPROM storage for user defined voltage and frequency combination for instant recall at any time
  • Optional GPIB, RS-232, and Analogue Programming Interface
  • Over voltage, under voltage, over power, over current, over temperature, and short circuit protection
  • Temperature controlled fan speed
  • Self-test at power-on
  • User-definable power-on state
