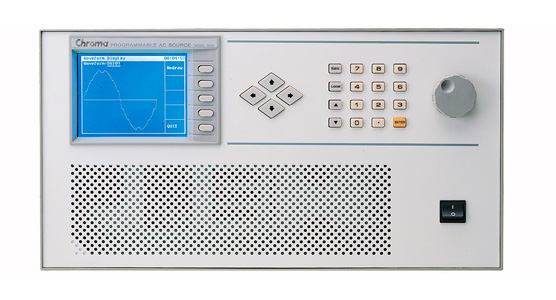

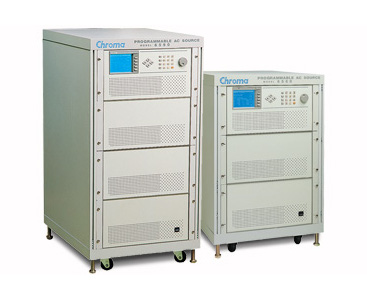

Chroma 6500 Series

DISCONTINUED: Programmable AC Source with models from 1.2kVA to 9kVA

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The 6500 Series is not RoHS compliant.  Please see the 61500 and 61600 series instead.

The Chroma 6500 Series AC Power Source delivers maximum rated power for any output voltage up to 300 Vac and at any frequency between 15Hz to 2000Hz.

  • Direct Digital Synthesis (DDS) waveform generation
  • Programmable Sine, Square, or Clipped Sine waveform output
  • Programmable voltage, current limit, frequency, phase, and distortion
  • Power line disturbances simulation capability
  • 30 factory installed harmonic waveforms in the waveform library
  • User programmable harmonic waveforms
  • User programmable sequential output waveforms for auto-execution
  • Powerful measurement of Vrms, Irms, Ipk+, Ipk-, power, frequency, crest factor, power factor, inrush current, VA, VAR, etc.
  • Built-in power factor correction circuit provides input power factor of over 0.98 to meet the IEC regulations
  • Advanced PWM technology to deliver high power output in a light and compact rackmountable package
  • Built-in output isolation relays
  • User-definable power-on state
  • TTL output to signal any output transition for ATE application
  • Analogue Programming Interface for external amplitude control
  • Optional GPIB, RS-232 interface
  • List mode transient power line disturbances simulation for Voltage Dip & Variation to meet IEC 61000-4-11
  • Easy use graphic user interface: softpanel (Option)
