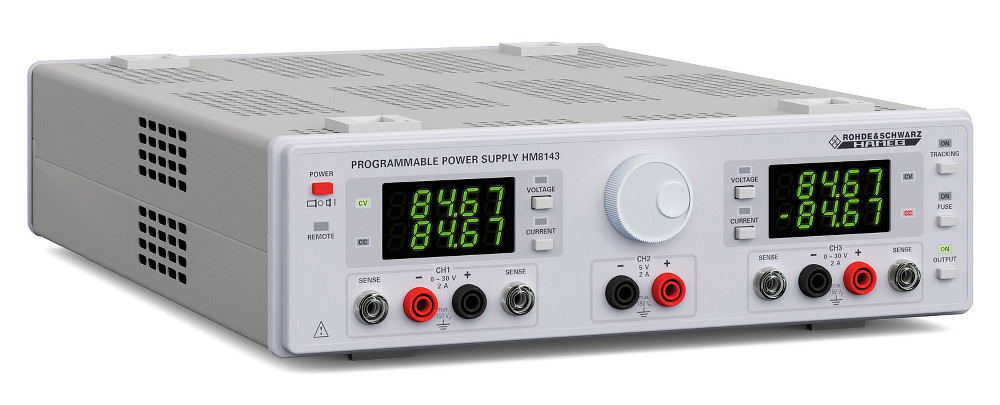

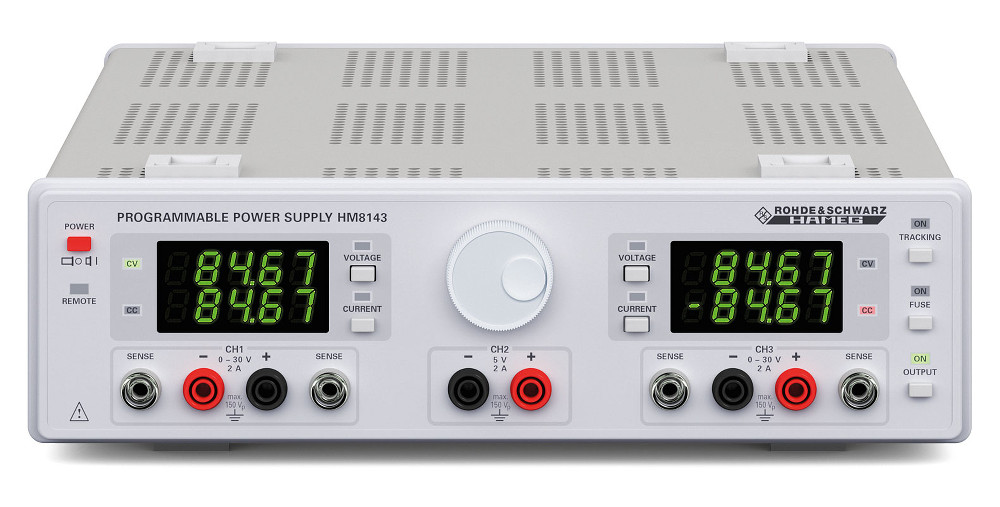

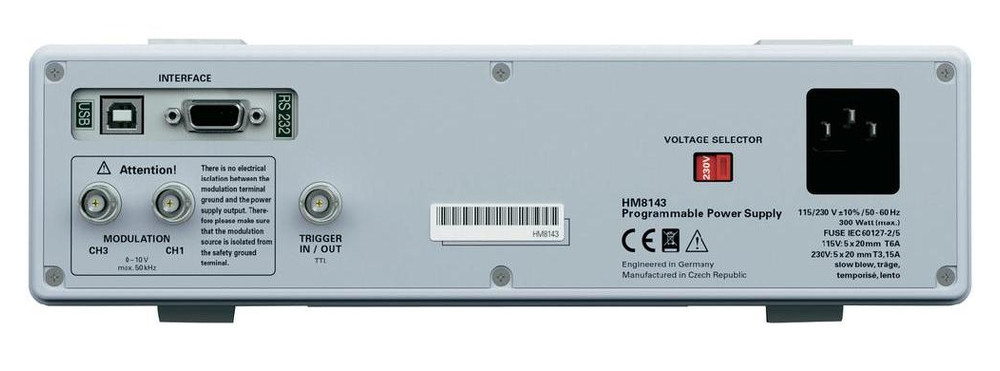

Rohde and Schwarz HM8143

DISCONTINUED: Triple DC Power Supply

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • 2 × 0 V to 30 V/1 × 5 V, 3 × 2 A (max. 130 W)
  • Realtime voltage and current values
  • Linear regulated, two-quadrant power supply (current source and sink)
  • Setting and readback resolution: 10 mV, 1 mA
  • Electronic fuse and tracking
  • Advanced parallel (up to 6 A) and serial (up to 65 V) operation
  • Front connectors: 4 mm safety sockets
  • Sense connectors for line loss compensation (30 V channels)
  • External modulation of output voltages up to 50 kHz
  • Arbitrary module: 4096 points, 12 bit
  • RS-232/USB dual interface, optionally IEEE-488 (GPIB)
  • This product series was previously branded HAMEG
