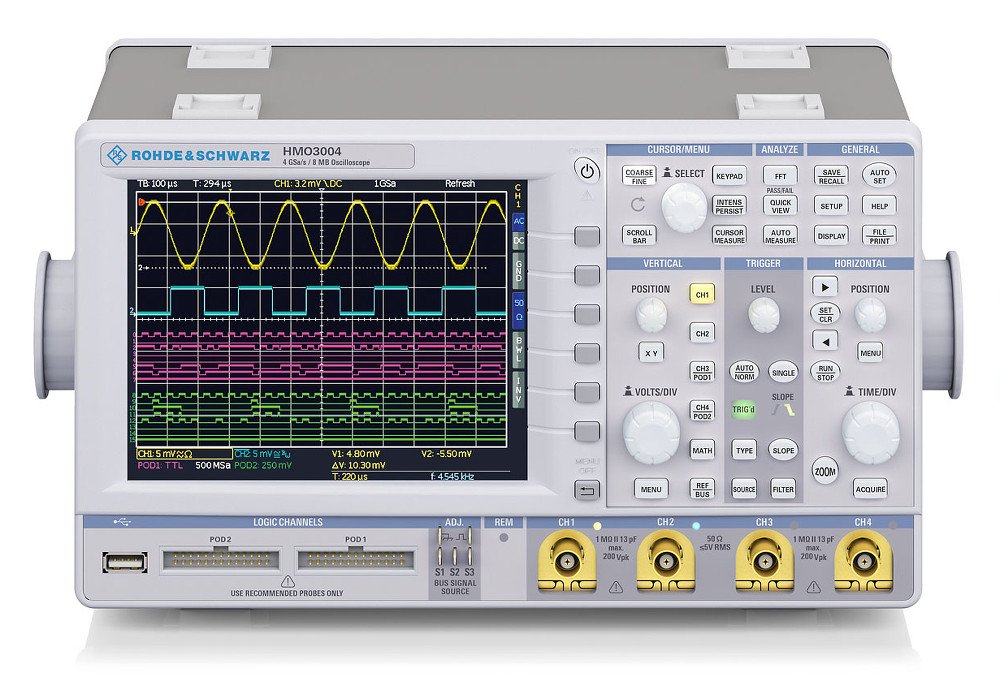

Rohde and Schwarz HMO3000 Series

DISCONTINUED - Mixed Signal Oscilloscope models from 300MHz to 500MHz, 2 or 4 channels

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • 4 GSa /s real time, low noise flash A/D converter
  • 8 MPts memory, zoom up to 200,000:1
  • MSO functionality included as standard (HO3508/HO3516 logic probe with 8/16 channels required)
  • Automatically or manually adjustable memory depth
  • Vertical sensitivity up to 1 mV/div.
  • Trigger modes: slope (A/B), pulse width, video, logic, serial buses (optional), hold-off
  • Serial bus trigger and hardware accelerated decode incl. list view.
  • Options: I2C + SPI + UART/RS-232 (HOO10/HOO11), CAN + LIN (HOO12)
  • 28 auto-measurement parameters plus statistics, formula editor, ratio cursor
  • 6-digit hardware counter
  • FFT up to 64 kPts (dBm, dBV, Vrms)
  • Pass/fail test based on masks
  • Automatic search for user-defined events
  • Display: 12 div. x-axis, 20 div. y-axis (Virtual Screen)
  • 2x USB for mass storage, Ethernet/USB dual interface for remote control
  • This product series was previously branded HAMEG
