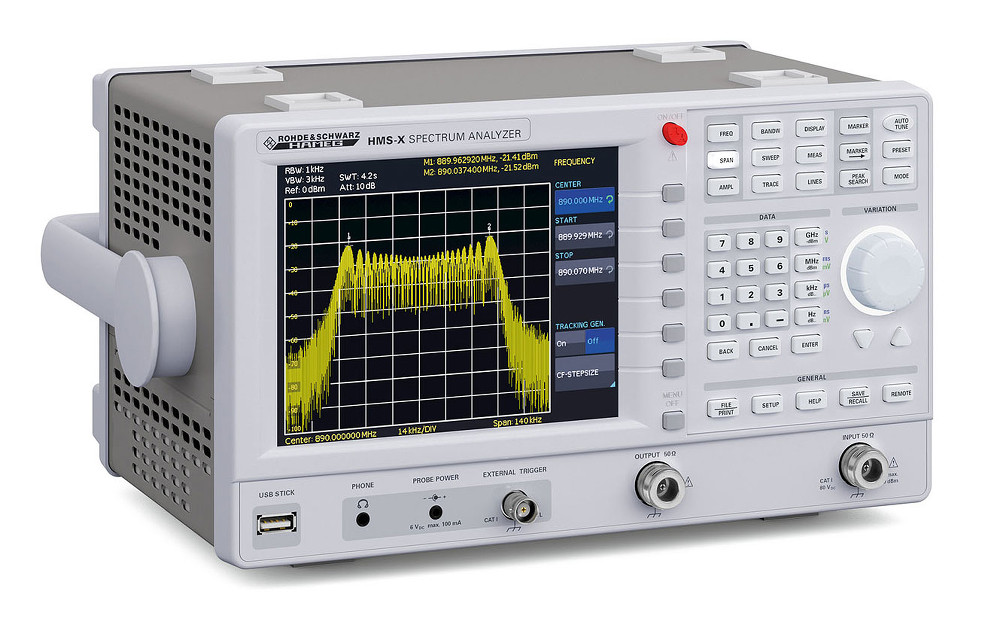

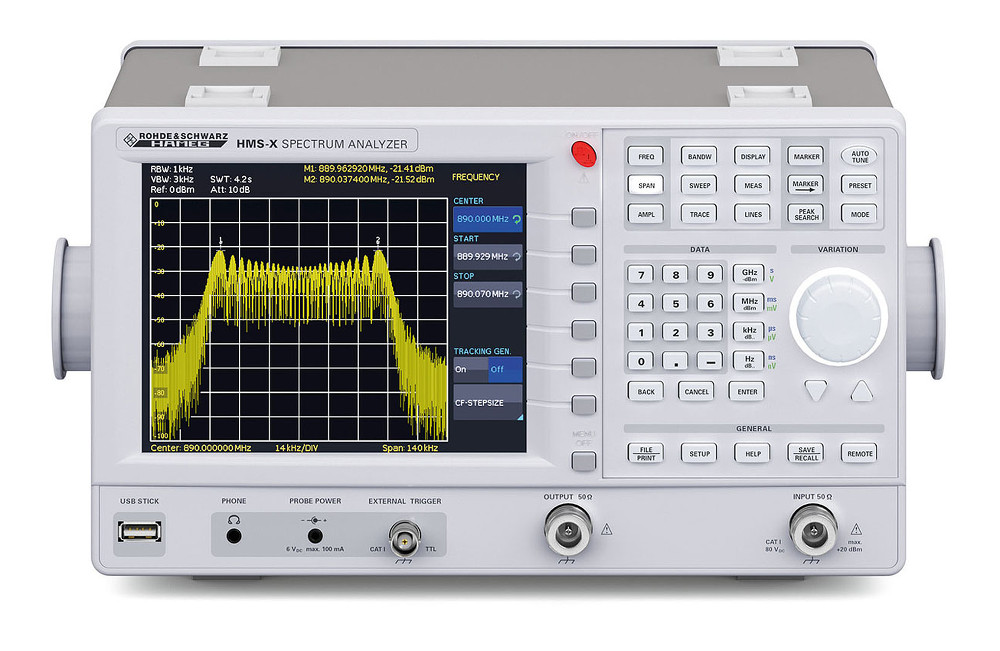

Rohde and Schwarz HMS-X

DISCONTINUED: Spectrum Analyzer 1.6 GHz

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Frequency range: 100 kHz to 1.6 GHz/(3 GHz with HMS-3G (HV212) option)
  • Spectral purity greater than -100 dBc/Hz
  • SWEEP from 20 ms to 1000 s
  • Detectors: auto-, min-/max.-peak, sample, RMS, average, quasi-peak (with HMS-EMC (HV213) option)
  • Miscellaneous marker/Δ-marker and peak functions
  • Tracking generator (with HMS-TG (HV211) option)
  • Output level: -20 dBm to 0 dBm

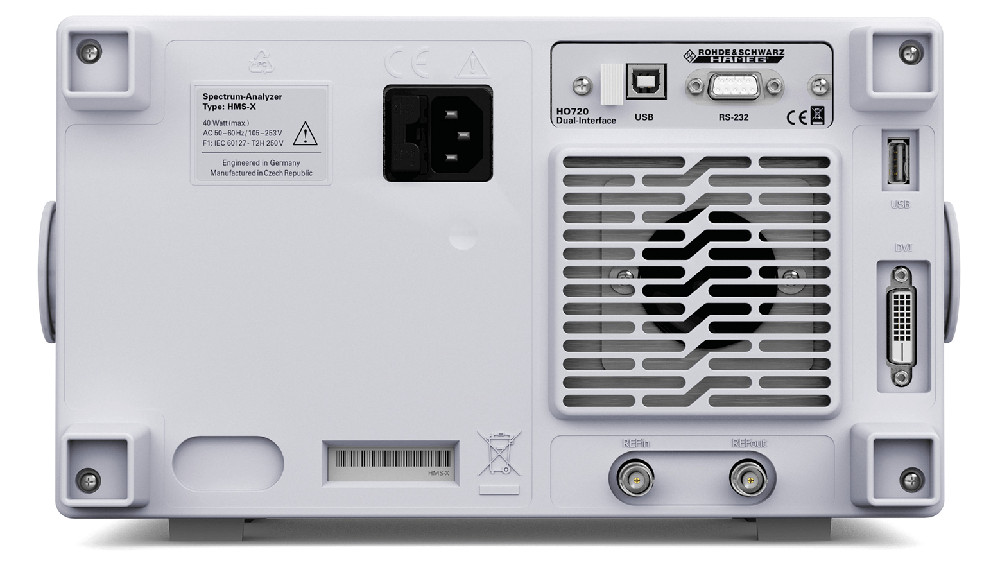

  • Directly export data to USB flash drive, RS-232/USB dual interface for remote control
  • Fanless design and fast boot time
  • Base Unit:
    • Amplitude measurement range: -104 dBm to +20 dBm
    • DANL: typ. -104 dBm
    • Resolution bandwidth: 10 kHz to 1 MHz, 200 kHz (-3 dB)
    • Video bandwidth: 1 kHz to 1 MHz
  • With  EMC option:
    • Amplitude measurement range: -114 dBm to +20 dBm
    • DANL: typ. -135 dBm
    • Resolution bandwidth: 100 Hz to 1 MHz, 200 kHz (-3 dB), 200 Hz, 9 kHz, 120 kHz, 1 MHz (-6 dB)
    • Video bandwidth: 10 Hz to 1 MHz
  • This product series was previously branded HAMEG
