Rohde and Schwarz ZNH Series

Handheld vector network analyzer with models from 4 to 26.5GHz bandwidth

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

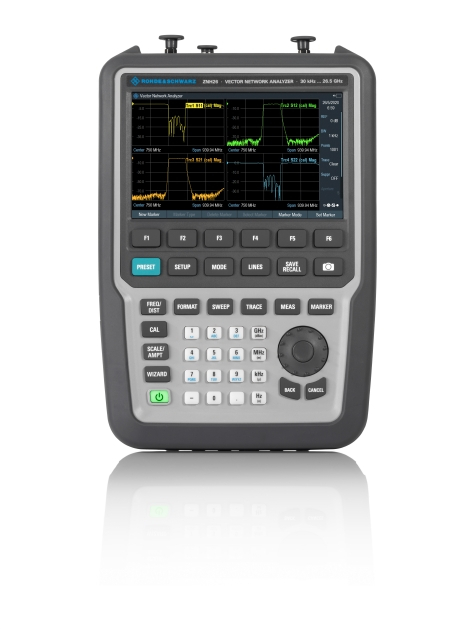

The ZNH is a full two-port handheld vector network analyzer (VNA) that offers one-port cable and antenna measurement and full two-port S-parameter measurements. The touch based interface simplifies operation and a configuration overview menu makes measurement preparation more efficient.

  • Frequency range from 30 kHz to 4/8/18/26.5 GHz
  • One-port cable and antenna measurement with basic instrument
  • S-parameter (S11, S12, S21, S22) measurement with basic instrument
  • 100 dB (typ.) dynamic range for filter and antenna isolation measurements
  • Factory calibration over entire frequency range
  • Built-in receiver step attenuator to increase port input power range linearity
  • Built-in DC voltage supply (bias) for active components such as amplifiers
  • Easy handling due to low weight (3.1 kg with battery) and well-spaced function keys
  • Fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)
  • 7" colour touchscreen display for intuitive operation with smartphone-like gestures
  • Measurement wizard to speed up measurements and eliminate human error
  • Save measurement results onto an SD memory card or a USB flash drive
  • Easy and cost-efficient upgrades for all options via software keycode


Product Variants

Model Price

ZNH18

Handheld vector network analyzer with two ports, 18 GHz, type N
POA

ZNH26

Handheld vector network analyzer with two ports, 26 GHz, PC 3.5mm
POA

ZNH4

Handheld vector network analyzer with two ports, 4 GHz, type N
POA

ZNH8

Handheld vector network analyzer with two ports, 8 GHz, type N
POA
Model Description Price
ZNH-K10
DC bias variable voltage source, software option POA
ZNH-K29
Pulse measurements with power sensor, software option POA
ZNH-K45
Vector voltmeter, software option POA
ZNH-K66
Wave ratios and wave quantities, software option POA
ZNH-K9
Power sensor support, software option POA
Series Model Price
FSH-Z14
Directional power sensor, 25 MHz to 1 GHz
POA
FSH-Z320
RF cable, armoured, type N (m) and type N (f) connectors, 1 m, 0 Hz to 8 GHz
POA
FSH-Z321
RF cable, armoured, type N (m) and type N (f) connectors, 3 m, 0 Hz to 8 GHz
POA
FSH-Z38
Matching pad, 50/75 Ω, L section, type N to BNC
POA
FSH-Z44
Directional power sensor, 200 MHz to 4 GHz
POA
HA-Z210
Spare Ethernet cable
POA
HA-Z211
Spare USB cable
POA
HA-Z220
Soft carrying bag
POA
HA-Z301
Spare power supply, incl. mains plug for EU, GB, US, AUS, CH
POA
HA-Z302
Car adapter
POA
HA-Z303
Battery charger
POA
HA-Z306
Lithium-ion battery pack, 6.4 Ah
POA
HA-Z321
Hardcase
POA
HA-Z322
Rainproof carrying holster
POA
HA-Z322
Rainproof carrying holster
POA
HA-Z340
GPS receiver
POA
HA-Z360
OEM USB optical power meter (Germanium)
POA
HA-Z361
OEM USB optical power meter (filtered InGaAs)
POA
HA-Z362
SC adapter for optical power meter
POA
HA-Z363
LC adapter for optical power meter
POA
