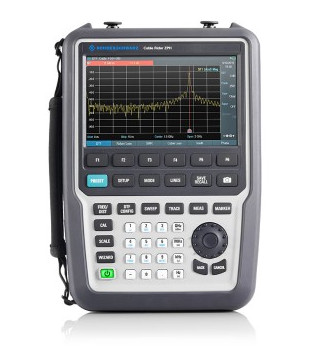

Rohde and Schwarz ZPH Cable Rider

Cable and Antenna Analyzer with single and dual port (combi) versions

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The Cable Rider ZPH has all the essential basic measurement capabilities required for installing and maintaining antenna systems in the field. Its unique features ensure fast and efficient cable and antenna measurements and spectrum analysis. Two different ZPH models are available to suit different needs, a pure one-port cable and antenna analyzer and a two-port model with additional spectrum analysis and tracking generator features.

  • Frequency range up to 3 GHz or 4 GHz, upgrade via keycode

  • One-port model features: DTF, return loss, VSWR and cable loss measurements

  • Two-port model additionally features S21 measurements, spectrum and interference analysis, AM/FM/ASK/FSK demodulation

  • Ideal for field use: up to 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)

Product Variants

Model Price

ZPH.02

Cable and Antenna Analyzer single channel
£3,333.60

ZPH.12

Cable and Antenna Analyzer dual channel (combi)
POA
Model Description Price
ZPH-B10
ZPH GPS Support option
£240.76
ZPH-B4
ZPH frequency upgrade, 3GHz to 4GHz
£648.20
ZPH-K19
ZPH channel power meter option
£523.19
ZPH-K29
ZPH pulse measurements with power sensor option
£879.70
ZPH-K9
ZPH power sensor support option
£407.44
Series Model Price
FSH-Z29
Combined open/short/50 Ω calibration standard for VSWR and DTF measurements
£513.93
HA-Z220
Carry bag/soft case for hand-held instruments
£268.54
HA-Z303
Battery charger for HA-Z306 Li-ion battery pack
£273.17
HA-Z306
Lithium Ion Battery Pack, 6.4 Ah
£259.28
HA-Z321
Hard case for hand-held units
£333.36
ZN-Z103
50 Ω N-type calibration unit, 2MHz - 4GHz
£694.50
Embedded thumbnail for Rohde and Schwarz ZPH

Rohde and Schwarz ZPH

Embedded thumbnail for Rohde and Schwarz ZPH 2-port version

Rohde and Schwarz ZPH 2-port version
