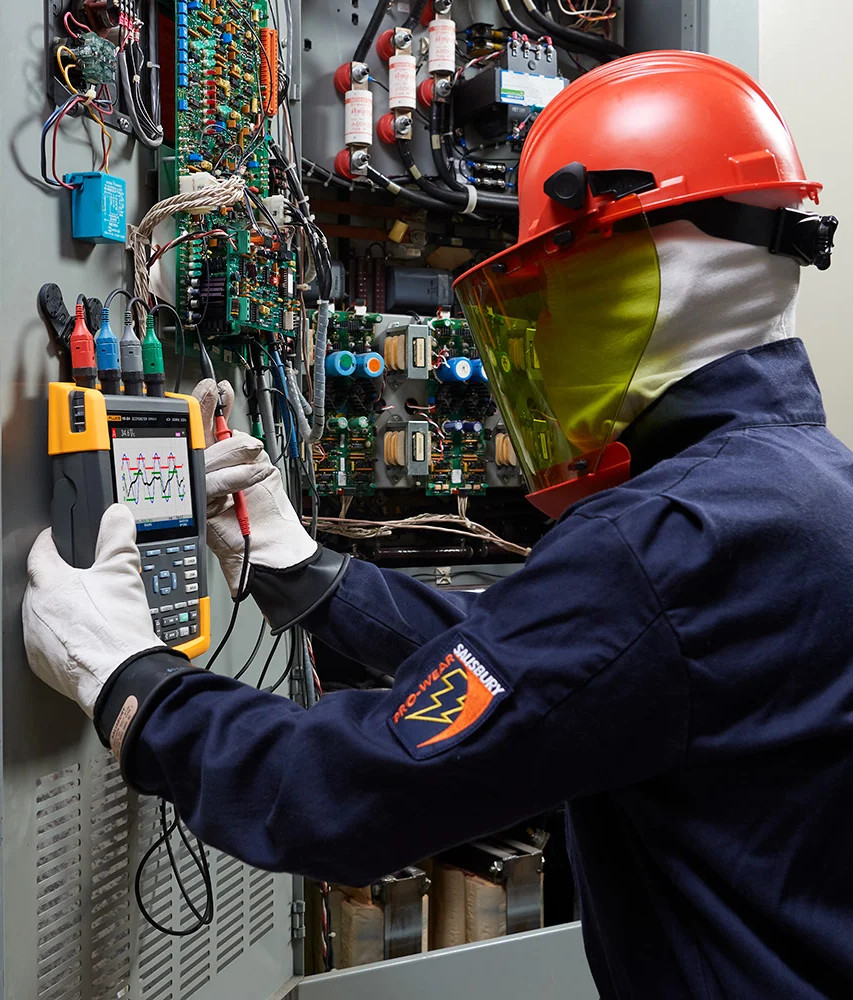

Fluke 190 Series III

ScopeMeter series, 2 or 4 channels, 60 to 500MHz

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Up to four independent floating isolated inputs, up to 1000 V
  • Up to 5 GS/s real time sampling (depending on model and channels used)
  • Deep memory: 10,000 points per trace waveform capture (scope mode)
  • CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
  • Up to seven hours of battery operation using BP291
  • Large, bright colour display is easy to view in nearly any environment
  • Easy to store and view historical data and transfer to a PC via USB or Wi-Fi
  • Convenient battery access door for quick battery swaps in the field
  • IP51 rating, dust and drip-proof
  • Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals
  • Frequency spectrum using FFT-analysis
  • Automatic capture and replay of 100 screens
  • ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis
  • TrendPlot Paperless Recorder mode with deep memory for long-term automatic measurements
  • 5,000 count DMM included in the 2-channel models

Models with "SCC" include SCC293 FlukeView-2 ScopeMeter Software package (full version) with CXT293 Carrying Case and WiFi dongle


Product Variants

Model Price

190-062-III

ScopeMeter 2 channel 60MHz
£3,038.00

190-062-III-S

ScopeMeter 2 channel 60MHz SCC
£3,458.00

190-102-III

ScopeMeter 2 channel 100MHz
£3,786.00

190-102-III-S

ScopeMeter 2 channel 100MHz SCC
£4,204.00

190-104-III

ScopeMeter 4 channel 100MHz
£4,152.00

190-104-III-S

ScopeMeter 4 channel 100MHz SCC
£4,572.00

190-202-III

ScopeMeter 2 channel 200MHz
£4,292.00

190-202-III-S

ScopeMeter 2 channel 200MHz SCC
£4,711.00

190-204-III

ScopeMeter 4 channel 200MHz
£4,784.00

190-204-III-S

ScopeMeter 4 channel 200MHz SCC
£5,203.00

190-502-III

ScopeMeter 2 channel 500MHz
£4,663.00

190-502-III-S

ScopeMeter 2 channel 500MHz SCC
£5,034.00

190-504-III

ScopeMeter 4 channel 500MHz
£5,020.00

190-504-III-S

ScopeMeter 4 channel 500MHz SCC
£5,393.00
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
BP290
Battery Pack Single Cap 190-series II
£254.00
BP291
Battery Pack, Fluke 190 Series
£327.00
EBC290
External Battery Charger
£103.00
HH290
Hanging Hook, ScopeMeter Series 190 II
£73.00
TL175
Twist Guard Test Leads
£28.00
VPS410-II-R
Industrial Voltage Probe Set 500 MHz 10:1 Red
£205.00
VPS410-II-V
Industrial Voltage Probe Set 500 MHz 10:1 Green
£205.00
VPS510-B
Voltage probe set 500 MHz 10:1 Blue
£207.00
VPS510-G
Voltage probe set 500 MHz 10:1 Grey
£207.00
VPS510-R
Voltage Probe set 500 MHz 10:1 Red
£207.00
VPS510-V
Voltage probe set 500 MHz 10:1 Green
£207.00
