Pico Technology PicoScope 4000A Series

USB PC Oscilloscope 2 to 8 channels, 20MHz

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The PicoScope 4000A Series provides 20 MHz bandwidth, low noise, 12-bit resolution, deep capture memory and an integrated function and arbitrary waveform generator in a compact USB 3 connected PC-based package, together with a proven user interface.

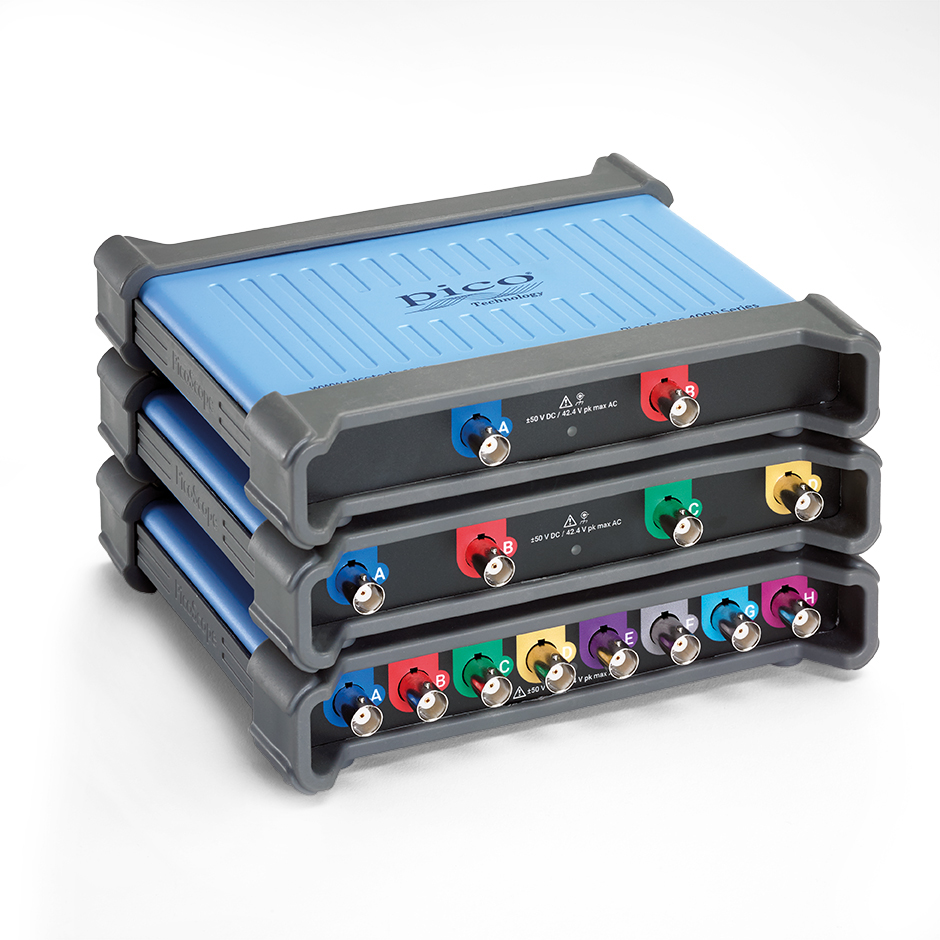

  • 2, 4 or 8 channels
  • 20 MHz bandwidth
  • 12-bit resolution
  • 256 MS capture memory
  • 80 MS/s sampling rate
  • 1% DC accuracy
  • ±10 mV to ±50 V input ranges
  • 10 000 segment waveform buffer
  • 80 MS/s AWG update rate
  • 14-bit resolution AWG
  • Low-cost and portable
  • SuperSpeed USB 3.0 interface

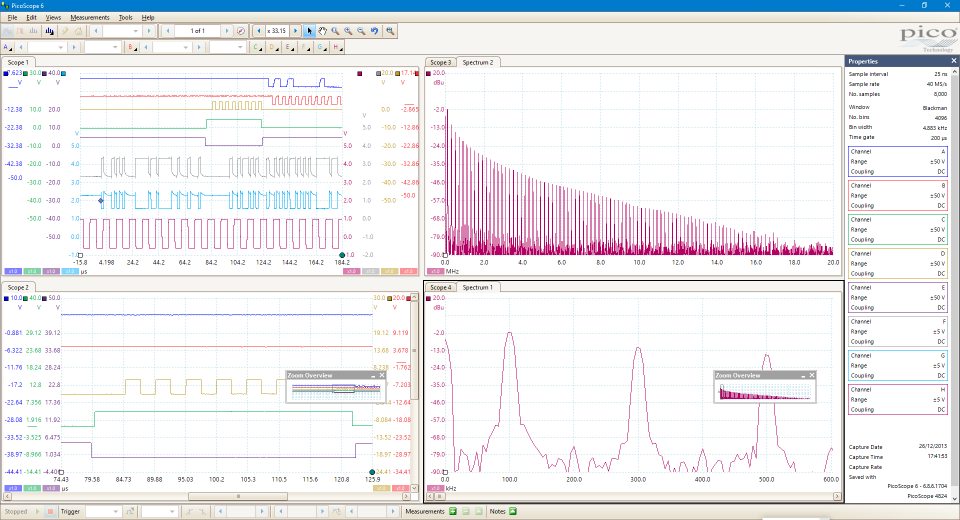

  • Split-screen waveform viewing

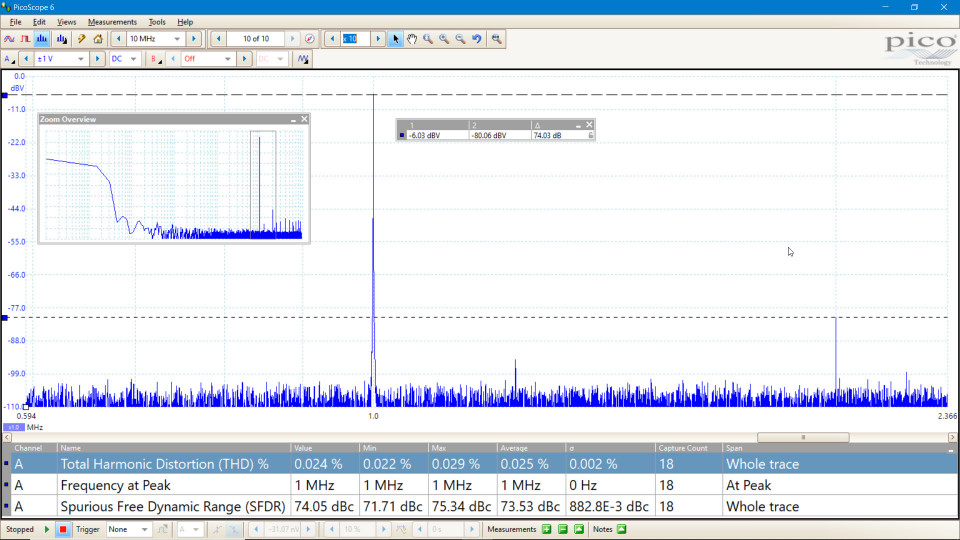

  • Up to 70 dB SFDR
  • Advanced digital triggering

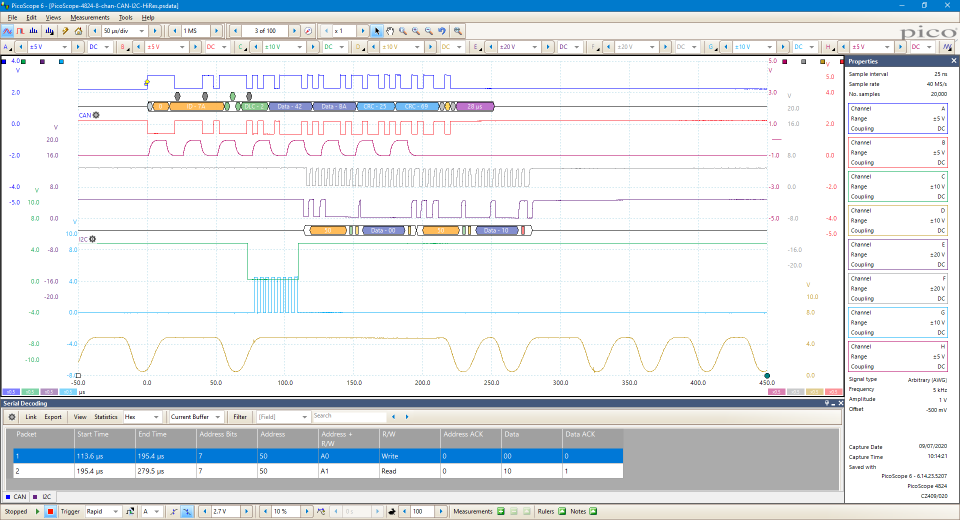

  • Serial bus decoding
  • PicoScope®, PicoLog® and PicoSDK® software included


Product Variants

Model Price

PicoScope 4224A

USB PC Oscilloscope 2-channel kit with 2 TA375 probes
£629.00

PicoScope 4424A

USB PC Oscilloscope 4-channel kit with 4 TA375 probes
£999.00

PicoScope 484A

USB PC Oscilloscope 8-channel kit with 4 TA375 probes
£1,815.00
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
PP969
Hard carry case for PicoScope 3000D, 3400A/B, 4824 and 5x4x series
£61.00
PS008
9V Power supply for TAxxx differential probes
£20.00
TA041
1000V, 25MHz, x10/100, CAT III
£289.00
TA044
7000V, 70MHz, x100/1000, CAT I
£689.00
TA057
1400V, 25MHz, x20/200, CAT III
£289.00
TA167
Current probe 200A/2000A AC/DC, BNC connector
£199.00
TA375
100MHz probe 1:1/10:1 switchable
£19.00
