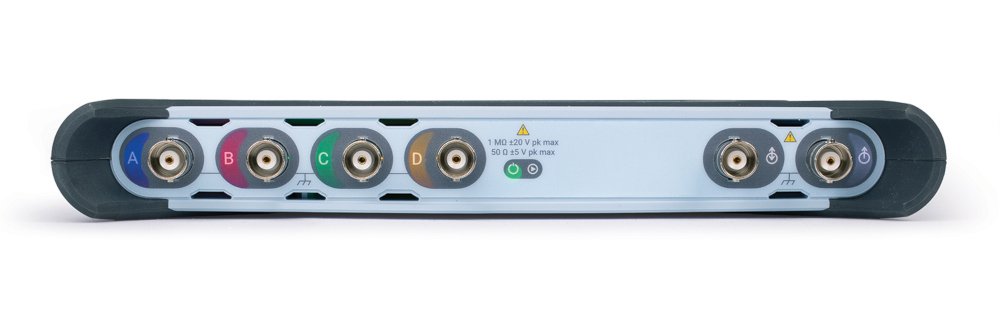

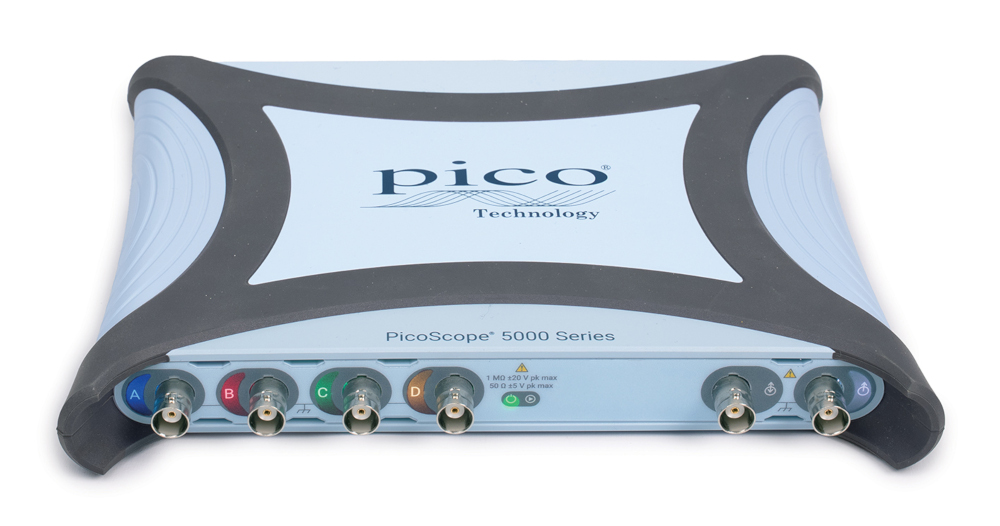

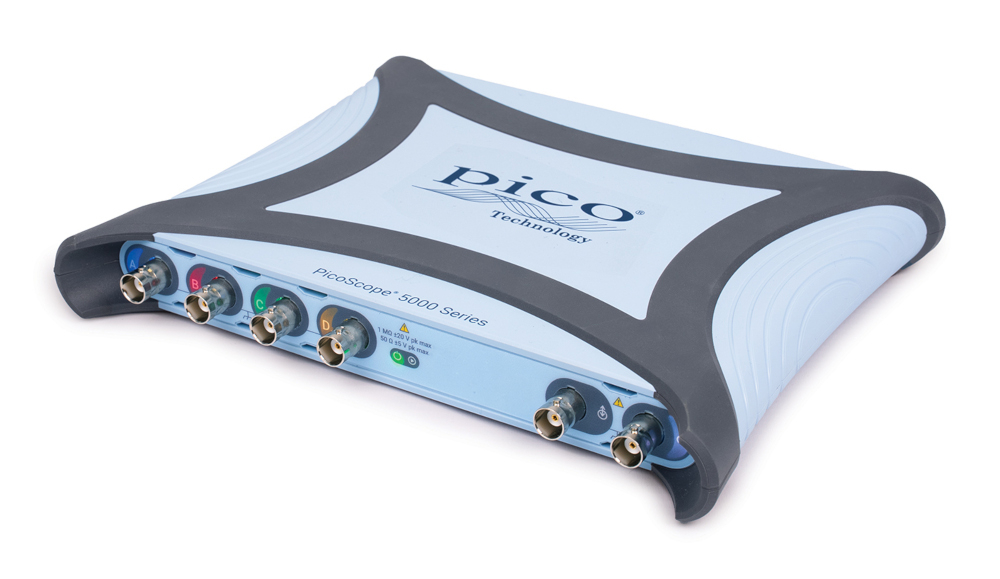

Pico Technology Picoscope 5000E series

The PicoScope 5000E Series is the first four-channel oscilloscope with16-bit resolution, offering a low noise floor and high dynamic range. In addition, "plus" variants feature switchable 16-bit or 8-bit resolution. 16-bit mode increases vertical precision for detailed voltage readings while 8-bit mode boosts bandwidth and sampling rates to capture fast edges without aliasing.

• 16-bit mode with up to 200 MHz bandwidth, 2.5 GS/s sampling, 1 GS capture memory
• 8-bit mode with up to 500 MHz bandwidth, 5 GS/s sampling, 2 GS capture memory ('plus' models only)
• 22 μV RMS noise floor at 20 MHz to measure low-level signals
• > 73 dB SFDR and exceptional bandwidth flatness from DC to full bandwidth
• 14-bit 200 MS/s arbitrary waveform generator

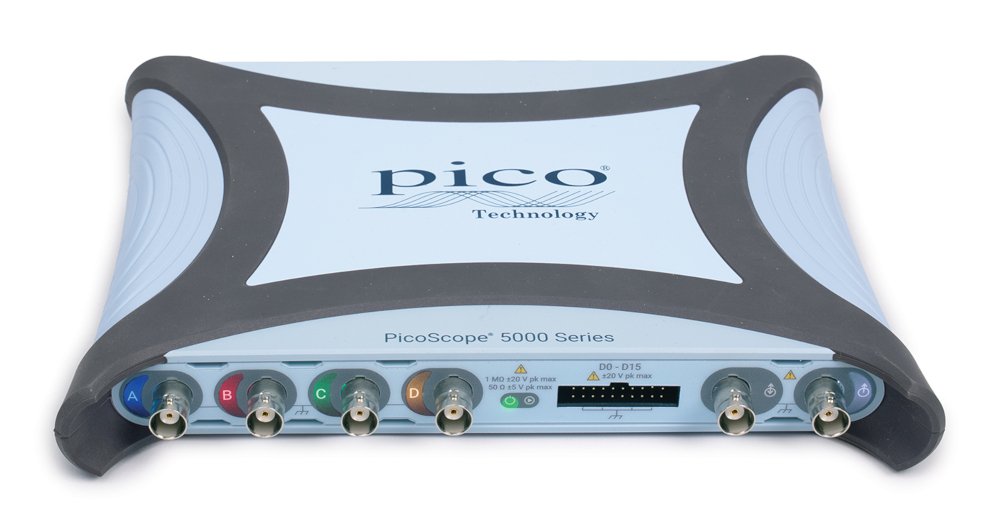

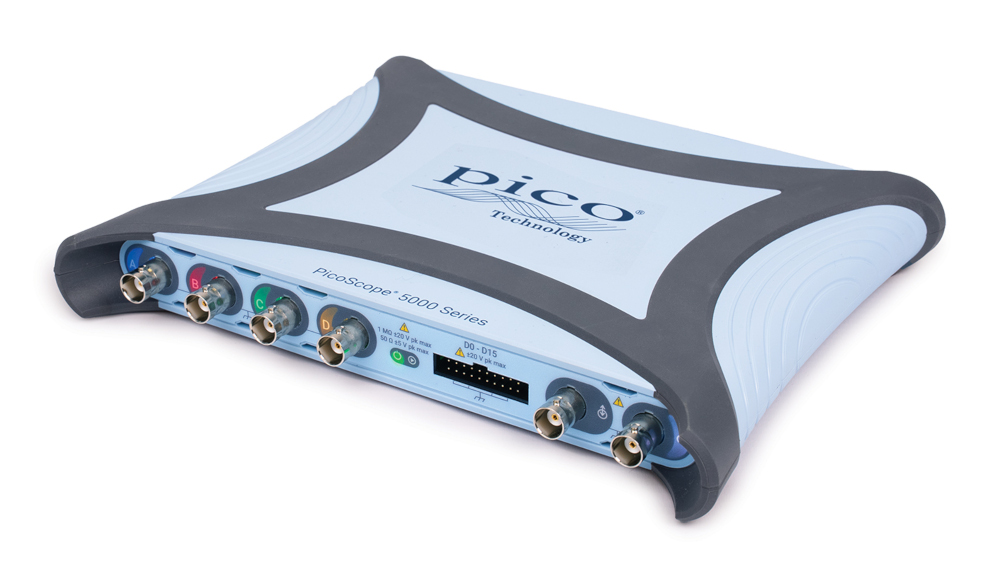

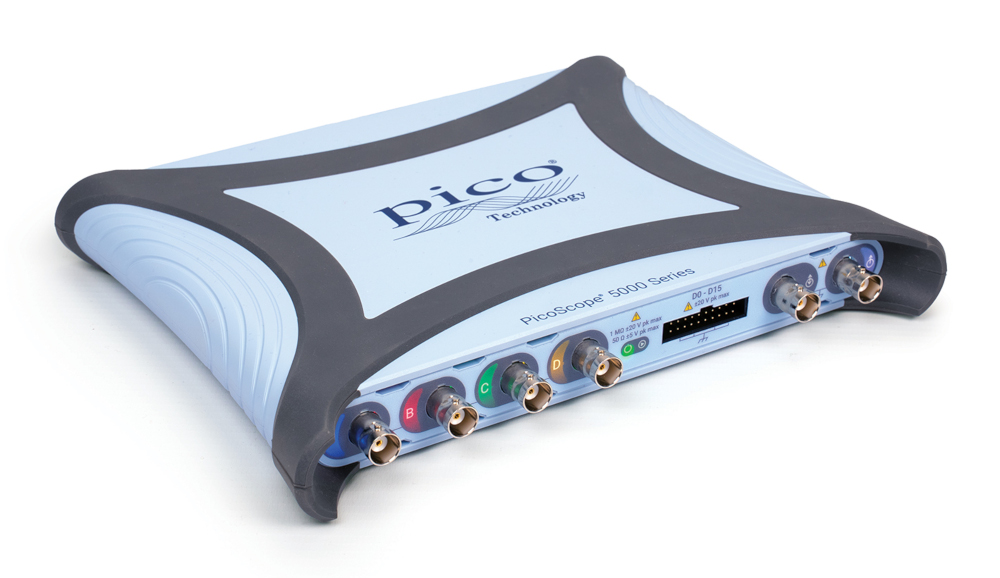

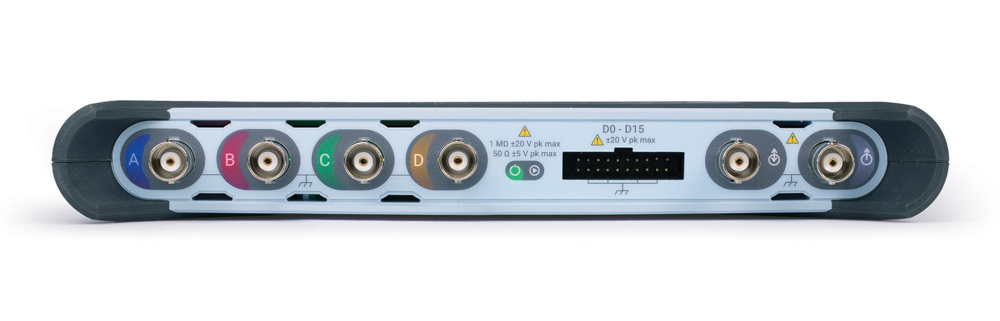

• MSO models add 16 digital channels with more than 40 serial decoders included free
• FFT spectrum analyzer with up to  1 million (2²⁰) points

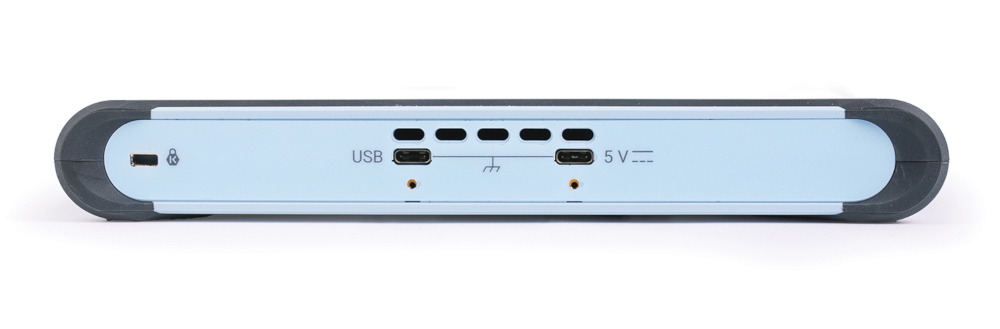

• USB-C SuperSpeed connection to the host computer, providing power for the scope with a single USB-C cable.

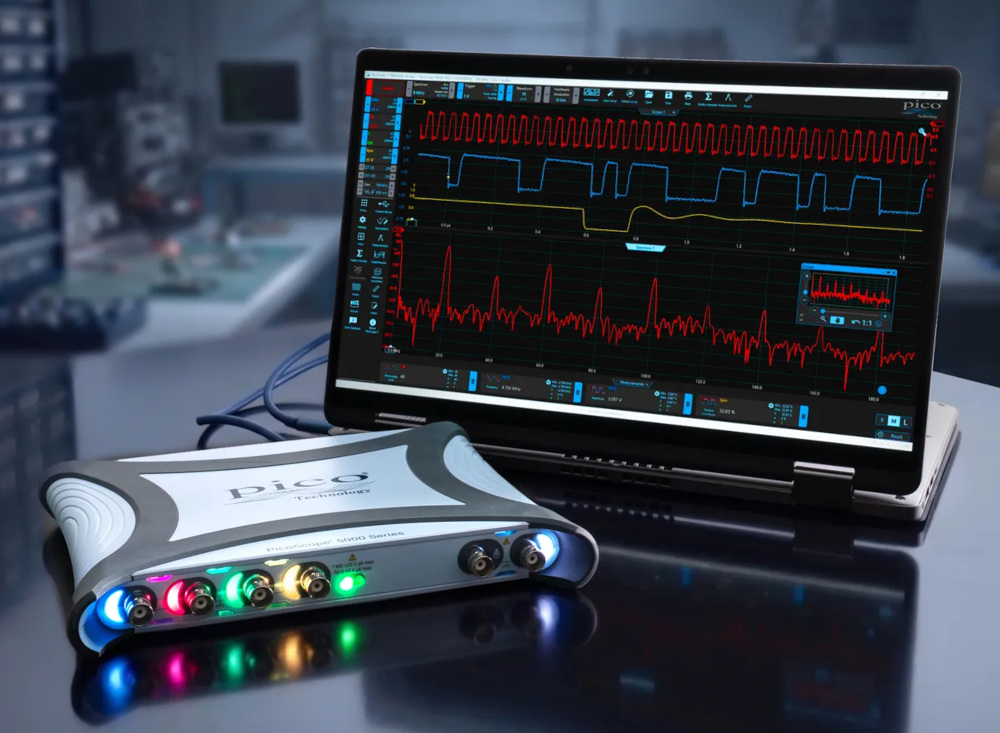

• All the power of PicoScope 7 software on Windows, MAC and Linux including ARM64
