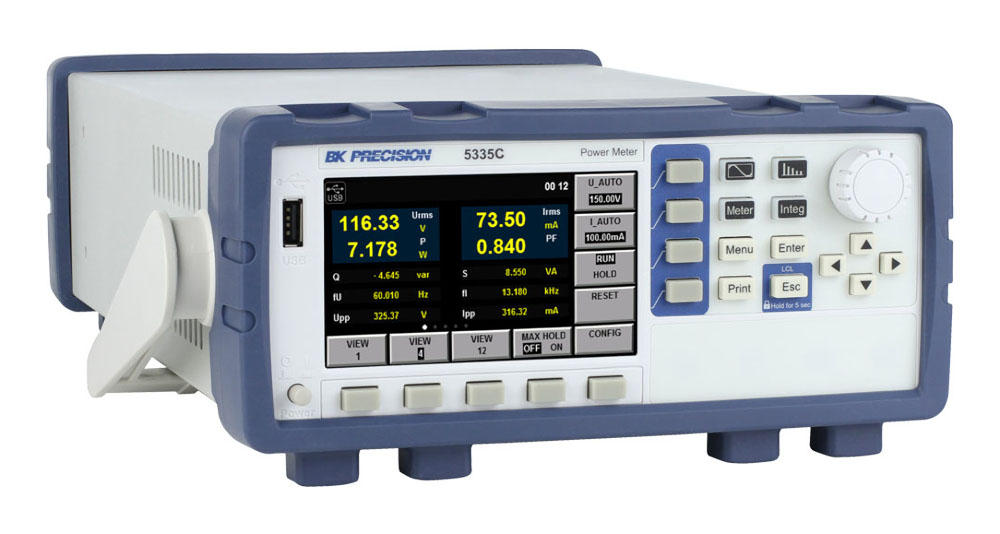

BK Precision BK5335C

Single-phase AC / DC power meter

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The 5335C is a compact, single-phase AC / DC power meter for measuring and analyzing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600 Vrms, and 20 Arms, with a bandwidth up to of 100 kHz.

  • 600 Vrms ( Cat II ) and 20 Arms direct input ranges
  • Frequency ranges DC, 0.5 Hz to 100 kHz
  • 0.1% basic accuracy for voltage and current measurements
  • 4.3-inch colour LCD (TFT)
  • Simultaneously measure and display up to 12 measurement parameters
  • Capture inrush current, and voltage surge with the peak function
  • Harmonic measurements to the 50th order
  • Integration function with automatic range switching
  • Ability to measure electrical energy which is produced or consumed
  • Pre-compliance testing according to IEC/EN 62000-3-2 / 4-7
  • Standard USB, RS232 and LAN interfaces
  • Line and frequency filter capability for reducing unwanted signal noise
  • Optional universal breakout box to simplify connection between power meter and DUT

Product Variants

Model Price

BK5335C

Single-phase AC / DC power meter
POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
TLBB53
Power cord breakout box for power meters
POA
IT-E151
19” rack mount kit for 2U and  ½ width 2U
POA
