Advanced Test and Measurement
Instruments and Power Supplies

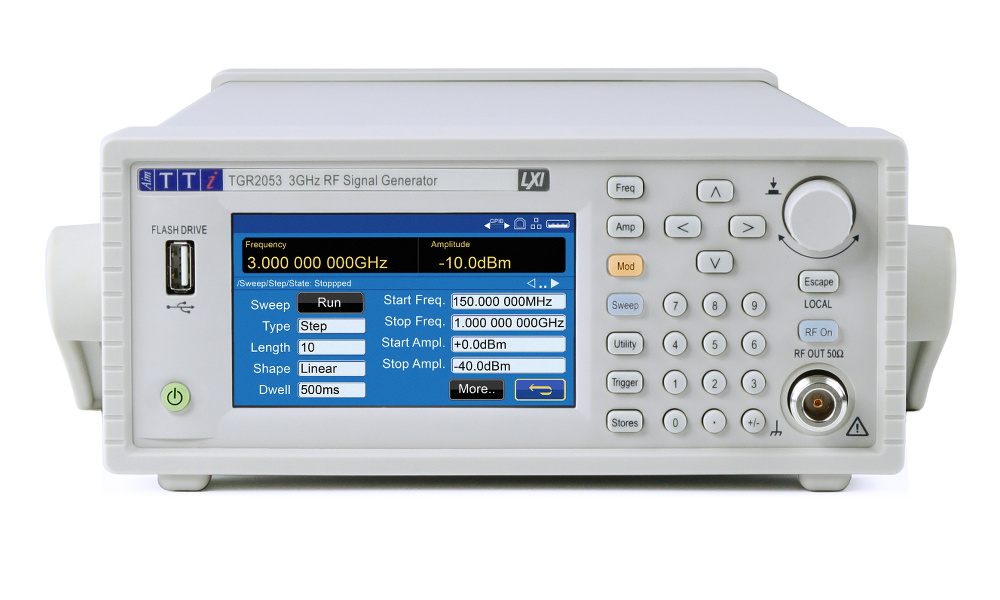

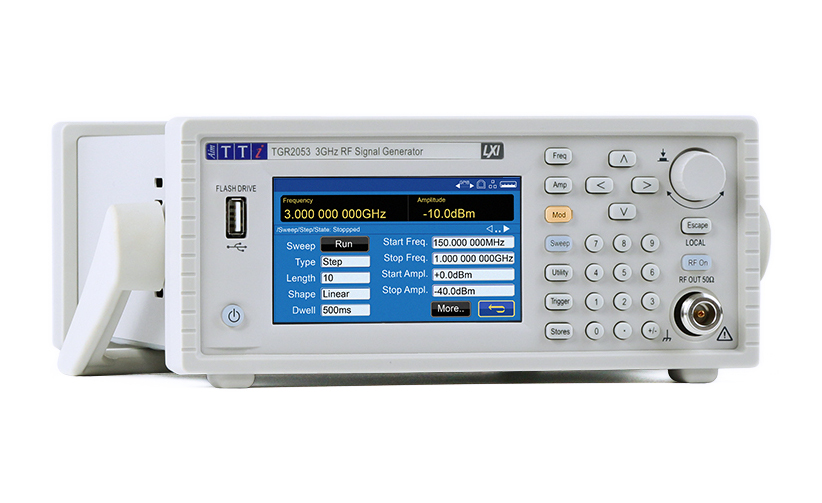

Aim-TTi TGR205x Series

RF Signal Generator with 1.5 and 3GHz models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • 150kHz to 3GHz (TGR2053) and 150kHz to 1.5GHz (TGR2051) frequency range
  • High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
  • Amplitude range of -127dBm to +13dBm
  • 0.1dBm amplitude setting resolution
  • Internal or external analogue modulations (AM, FM, PM)
  • Amplitude can be set in dBm, dBμV or in linear Volts.
  • Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK with U01 option
  • Modulation Synchronisation
  • Fast amplitude and/or frequency sweeps with comprehensive triggering
  • 5ms sweep settling time
  • 1ppm frequency accuracy, <1ppm drift in first year

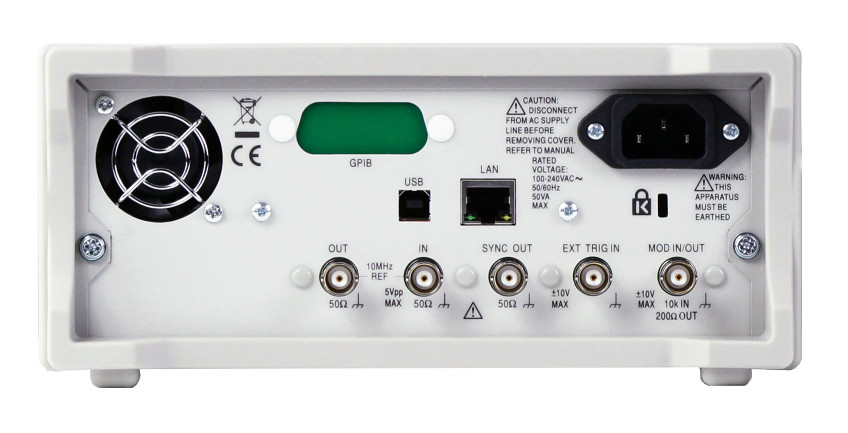

  • Modulation waveform output on the rear panel
  • Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern
  • Simple operation with the colour touch screen
  • Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible
  • Compatible with previous Aim-TTi RF generators

Product Variants

Model Price

TGR2051

RF Signal Generator 1.5GHz 		POA

TGR2051-U01

RF Signal Generator 1.5GHz with U01 option 		POA

TGR2053

RF Signal Generator 3GHz 		POA

TGR2053-U01

RF Signal Generator 3GHz with U01 option 		POA
Model Description Price
GPIB 1A
 GPIB Interface Kit
£124.00
TGR-U01
 Option pack for TGR2051/TGR2053
£473.00
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Rack Mounts
RM200A
2U Rack Mount for half-rack width instruments, includes 1/2 width blanking plate
£142.00
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
