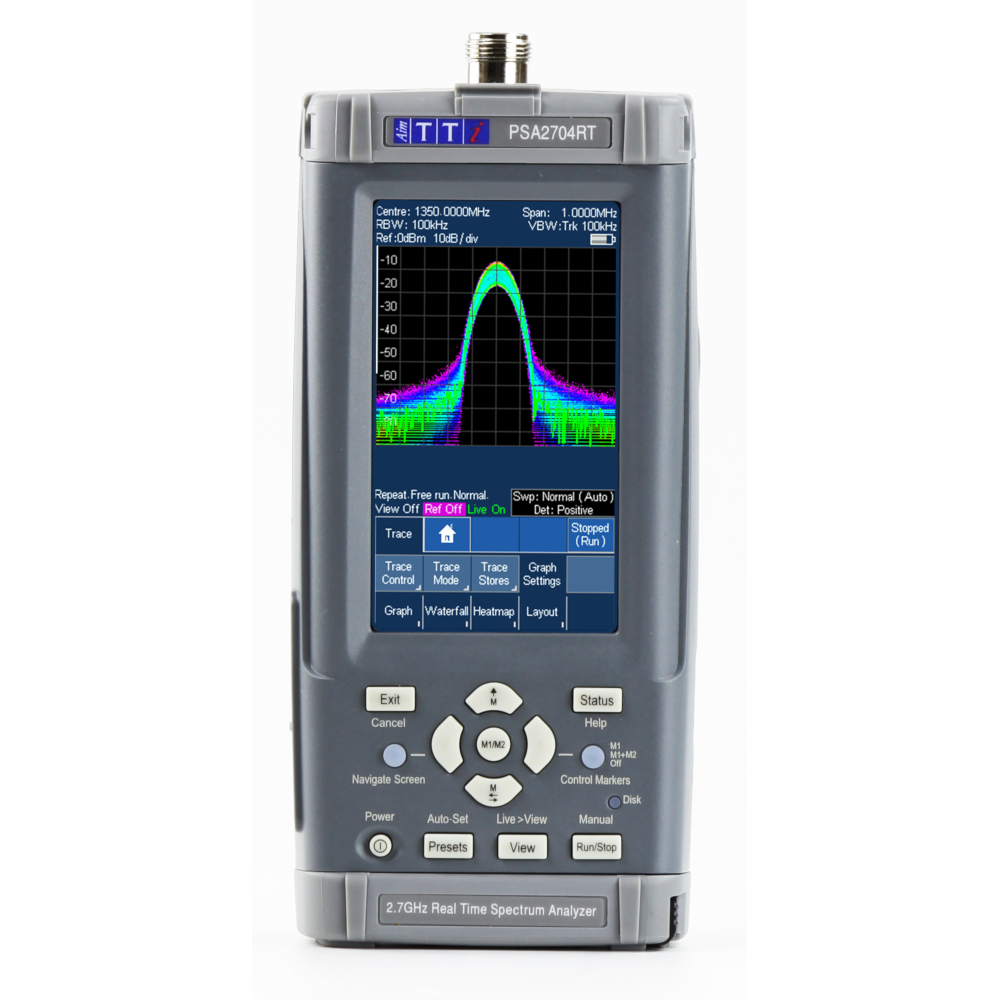

Aim-TTi PSA Series 4

True handheld battery powered RF spectrum analyzers

• 2.7GHz frequency range
• -131dBm DANL
• Max input signal +17dBm
• Real time signal capture 1.35kHz to 10.8MHz (PSA2704RT)
• Swept FFT spectrum analysis alongside conventional swept mode
• Seamless FFT stitching delivers full-span coverage at faster seep times
• Resolution bandwidth defined by frequency bin width and selectable window functions
• Six window functions to optimize accuracy for different applications
• Seven detector modes for flexible and precise signal analysis
• zero span with AM and FM audio demodulation
• Flexible display modes: full, combined or split-screen views
• Amplitude vs time (zero span) with trace and/or waterfall
• Amplitude depth vs. time with trace and/or waterfall
• Frequency deviation vs time with trace and/or waterfall
• Smart markers with selectable peak tracking
• Frequency counter with 1Hz resolution
• Autofind automatically sets sweep parameters for the highest signal found
• Up to 4 hours battery operation
• Limit lines and limit patterns with limits comparator
• Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
• Sweep triggering from external trigger or limits comparator
• Compensation tables, fixed offsets and 75 Ohm compensation
• Custom presets
• Capability to show screen contents on a PC
• Modulation waveform display
• Automatic measurement of CP, ACR and OBW
