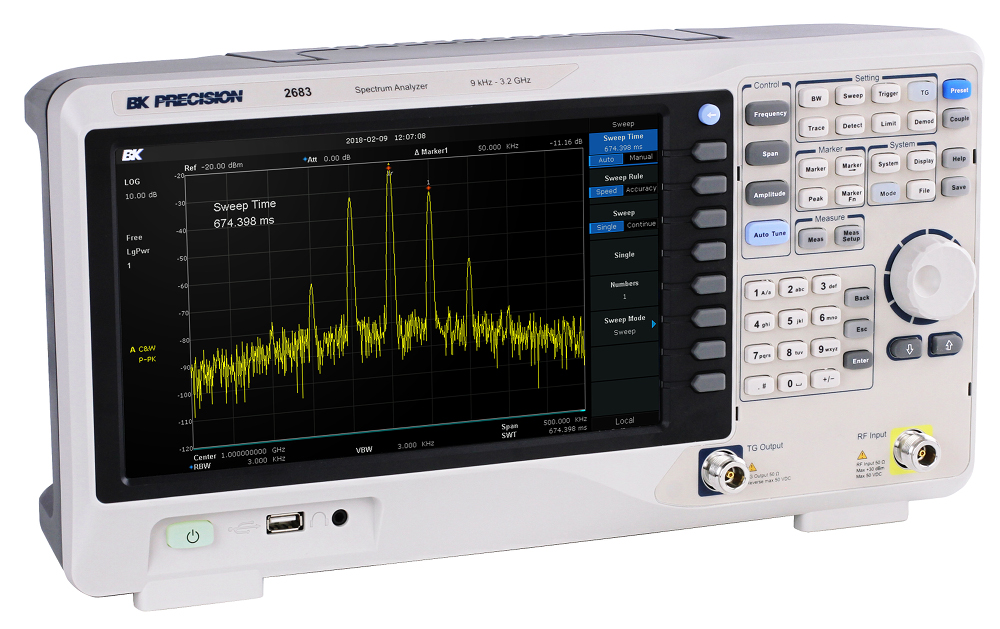

BK Precision 2680 Series

Spectrum Analyzer with 2.1 and 3.2GHz bandwidth models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Frequency range: 9 kHz to 2.1 or 3.2 GHz
  • High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
  • Low phase noise of -98 dBc/Hz @ 10 kHz offset
  • Low level uncertainty of ±0.7 dB
  • 1 Hz minimum resolution bandwidth (RBW)
  • Preamplifier and tracking generator standard on all models
  • 10.1” / 25.5cm wide-screen 1024 x 600 colour display
  • LAN and USBTMC connectivity
  • USB host port to store and recall waveform data, setups, and screen captures

Product Variants

Model Price

BK2682

Spectrum Analyzer 2.1 GHz bandwidth
POA

BK2683

Spectrum Analyzer 3.2 GHz bandwidth
POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
PR262
Field probes with amplifier and SMA cable
POA
RB2680
Reflection bridge with adapters
POA
