Rohde and Schwarz FSC Series

Spectrum Analyzer with 3 and 6GHz variants

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

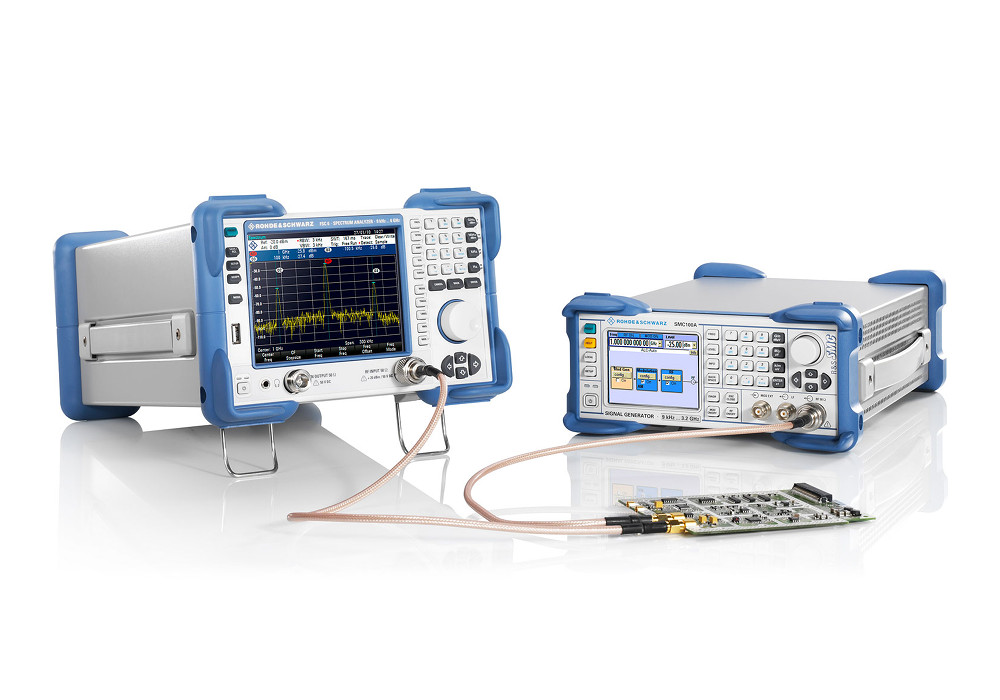

The R&S®FSC is a compact, cost-efficient spectrum analyzer that covers a wide range of applications from simple development tasks to production, training RF professionals or applications in service or maintenance.

Four different models are available: either 3 or 6GHz bandwidth with or without a tracking generator. An optional preamplifier that is available for all models increases sensitivity for measuring weak signals.

  • Frequency range 9 kHz to 3 GHz or 6 GHz
  • Resolution bandwidths 10 Hz to 3 MHz
  • High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1 Hz ))
  • High third order intercept (> 10 dBm, typ. 15 dBm)
  • Low measurement uncertainty (< 1 dB)
  • Internal tracking generator (model .13/.16)
  • Compact dimensions (3U half rack width - rack kits available)
  • Low power consumption (12 W)

Product Variants

Model Price

FSC-P1

Spectrum Analyzer 9kHz to 3GHz
£6,069.39

FSC-P2

Spectrum Analyzer 9kHz to 3GHz with tracking generator
£7,515.36

FSC-P3

Spectrum Analyzer 9kHz to 6GHz
£7,846.92

FSC-P4

Spectrum Analyzer 9kHz to 6GHz with tracking generator
£9,394.20
Model Description Price
FSC-B22
RF preamplifier, 20dB gain
£501.95
Series Model Price
FSH-Z38
Matching pad, 50/75 Ω, L section, type N to BNC
POA
NRP-Z211
Universal power sensor, 100 mW, two-path, 10 MHz to 8 GHz
POA
NRP-Z221
Universal power sensor, 100 mW, two-path, 10 MHz to 18 GHz
POA
NRP-Z4
USB adapter (passive) for NRP-Z sensors powered via USB
£156.57
ZZA-T33
19"-rack adapter for 2 x 3U 1/2 width units
£442.08
ZZA-T34
19"-rack adapter for 1 x 3U 1/2 width unit with spacing module
£442.08
