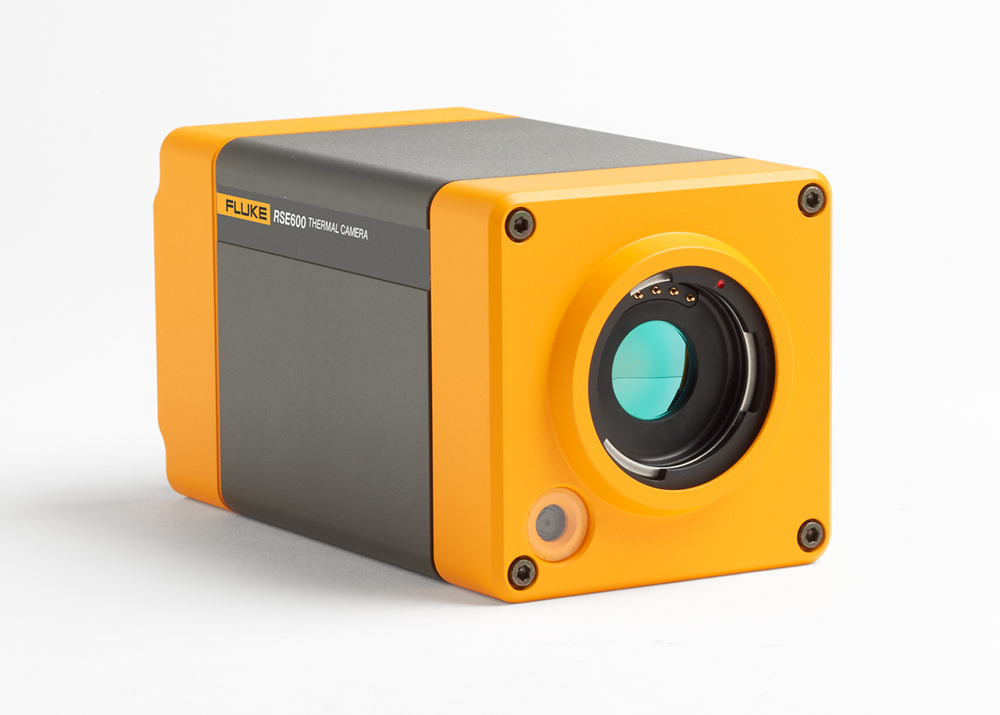

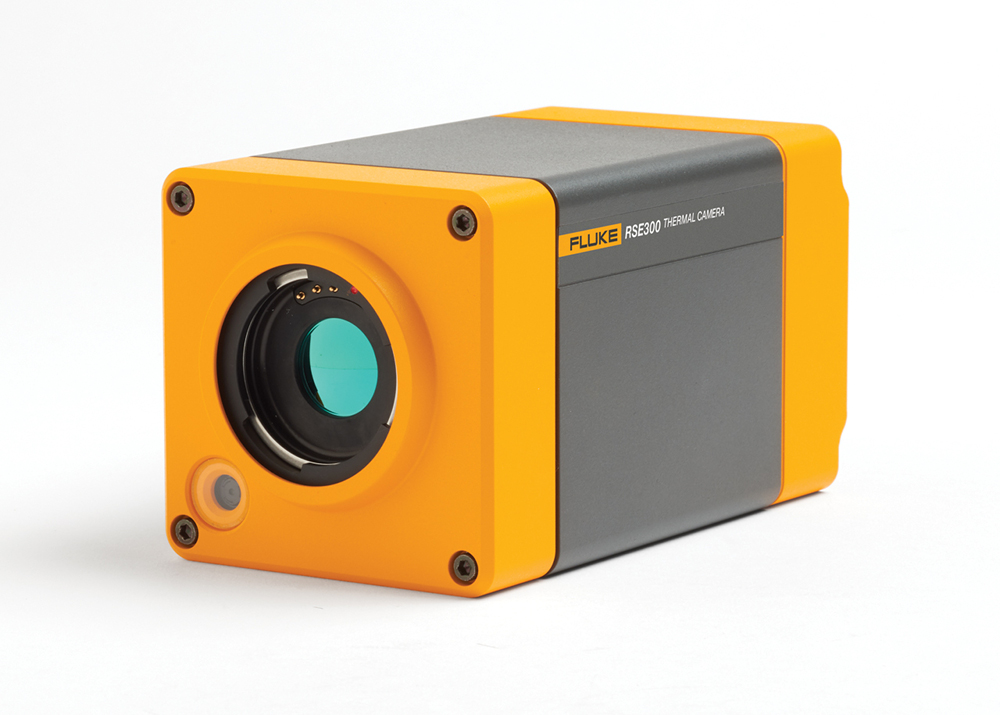

Fluke RSE Series

Mounted Infrared Camera with interchangeable lenses and resolution options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The RSE Series mounted infrared cameras are designed for research, science and engineering. MATLAB® and LabVIEW® software compatibility facilitates incorporating infrared temperature measurement data, images and video into test systems.

  • 320 x 240px and 640 x 480px resolution options
  • -10°C to +1200°C measurement range
  • accuracy of ±2°C or ±2%, whichever is the greater
  • optional telephoto, wide angle and macro lenses
  • built in 5MP visible camera
  • SmartView® desktop software
  • Radiometric and non-radiometric video and image formats
  • Live view and remote control over Ethernet via SmartView software

Product Variants

Model Price

RSE300 9Hz

Mounted Infrared Camera 320 x 240px, 9Hz
£10,779.00

RSE600 9Hz

Mounted Infrared Camera 640 x 480px, 9Hz
£14,099.00
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
0.75X WIDE LENS
Infrared wide angle lens for RSE Series
POA
2X LENS
Infrared 2x Telephoto lens for RSE Series
POA
4X LENS
Infrared 4x Telephoto lens for RSE Series
POA
MACRO LENS
Infrared macro lens for RSE Series
POA
FLK-RSE-MB
Mounting Bracket for RSE Series
POA

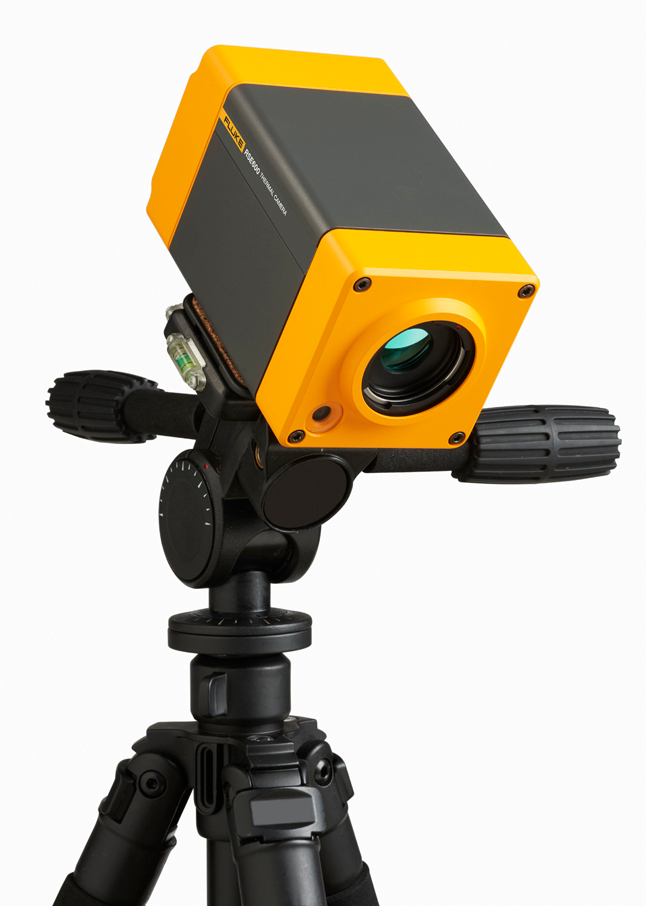

FLK-RSE-STAND
Stand for RSE Series
POA
Embedded thumbnail for How To Connect Fluke RSE Infrared Cameras to SmartView™ Software

How To Connect Fluke RSE Infrared Cameras to SmartView™ Software

Embedded thumbnail for Introduction to the Fluke RSE Series mounted IR cameras

Introduction to the Fluke RSE Series mounted IR cameras
