Advanced Test and Measurement
Instruments and Power Supplies

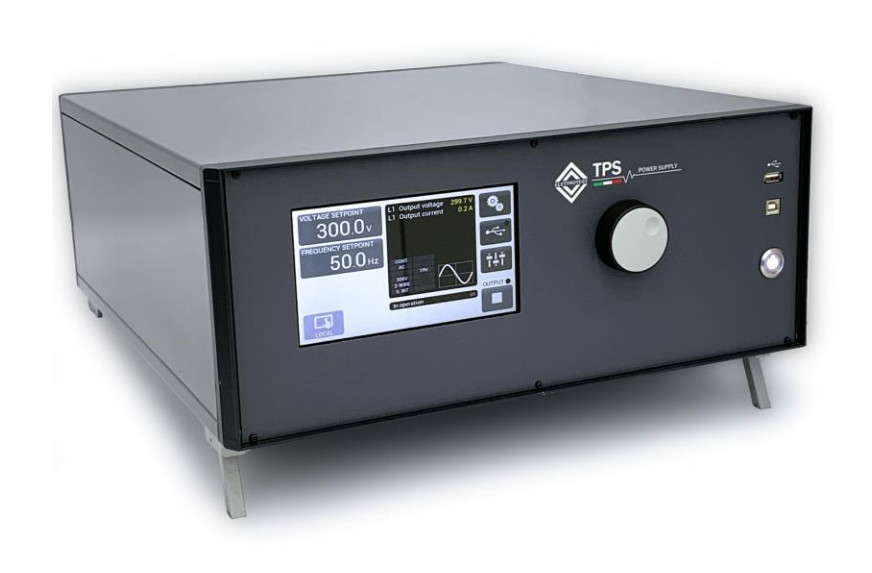

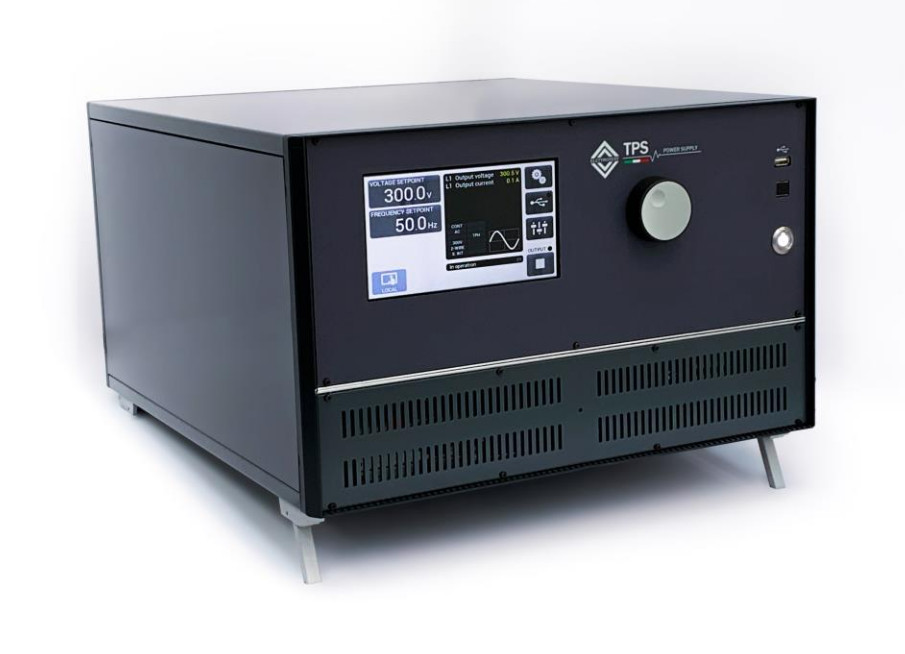

Elettrotest TPS/M Series

AC Power Source models from 1.5kW to 9kW

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

Compact, non-isolated single-phase AC power source, suitable for non-linear loads.

  • Output frequency from 10Hz to 80Hz (DC optional)
  • Output voltage from 0 VAC to 300 VAC
  • Models available from 1.5kVA to 9kVA continuous output power
  • Power inrush: 2× rated power for 3 seconds
  • Accuracy: < 0.5%
  • Stability: < 0.1%
  • Distortion: < 0.3%
  • Remote control via RS232 with LabVIEW driver, SCPI protocol
  • Short circuit, overload, undervoltage, overvoltage and overtemperature protection

Product Variants

Model Price

TPS/M

AC Power Source - contact us for details
POA
