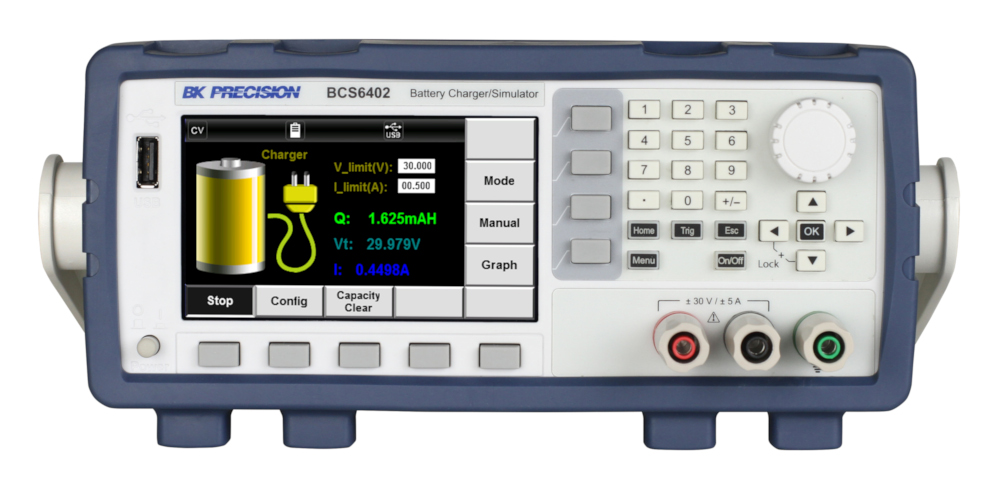

BK Precision BCS Series

Battery Charger Simulator with single and dual channel models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The BCS Series battery charger/simulator and precision DC Power supplies are optimized for testing batteries and battery-operated devices. This series features source/sink capabilities, a bipolar output, and a variable output impedance with dedicated battery charge, discharge, and simulation modes. Additionally, both models serve as a precise single channel or dual channel DC power supply with fast transient response and low ripple/noise characteristics.

Applications include evaluating batteries and charger circuitry used in cell phones, wearable devices, and other IoT devices.

  • Source or sink up to 150 W with 2-quadrant operation (BCS6401 90W)
  • Compact 2U form factor
  • Dual channel and dual range operation (model BCS6401)
  • Perform battery charge, discharge, and simulation tests
  • Bipolar output
  • Sink current up to 5 A
  • Variable output impedance 0 Ohm to 1 Ohm
  • Low noise < 3 mVpp
  • Fast load recovery time
  • High 100 nA current readback resolution
  • OVP, OCP, OTP, and key-lock protections
  • USB (USBTMC-compliant) and LAN interfaces standard

Product Variants

Model Price


Battery Charger Simulator dual channel, 2 x 45W


Battery Charger Simulator single channel, 150W
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
Rack mount kit for BK9140 Series
