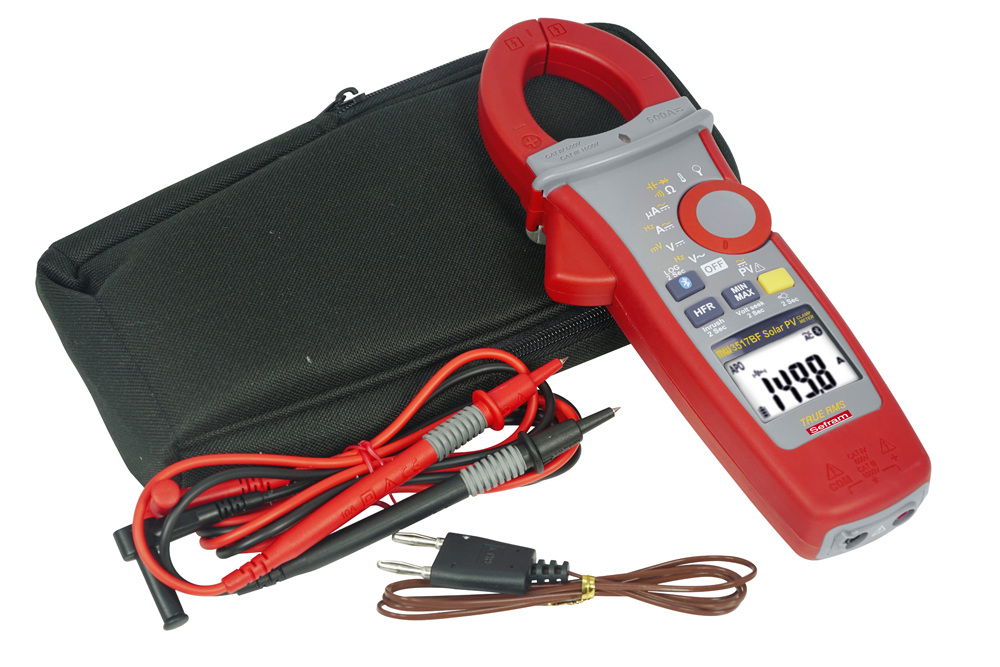

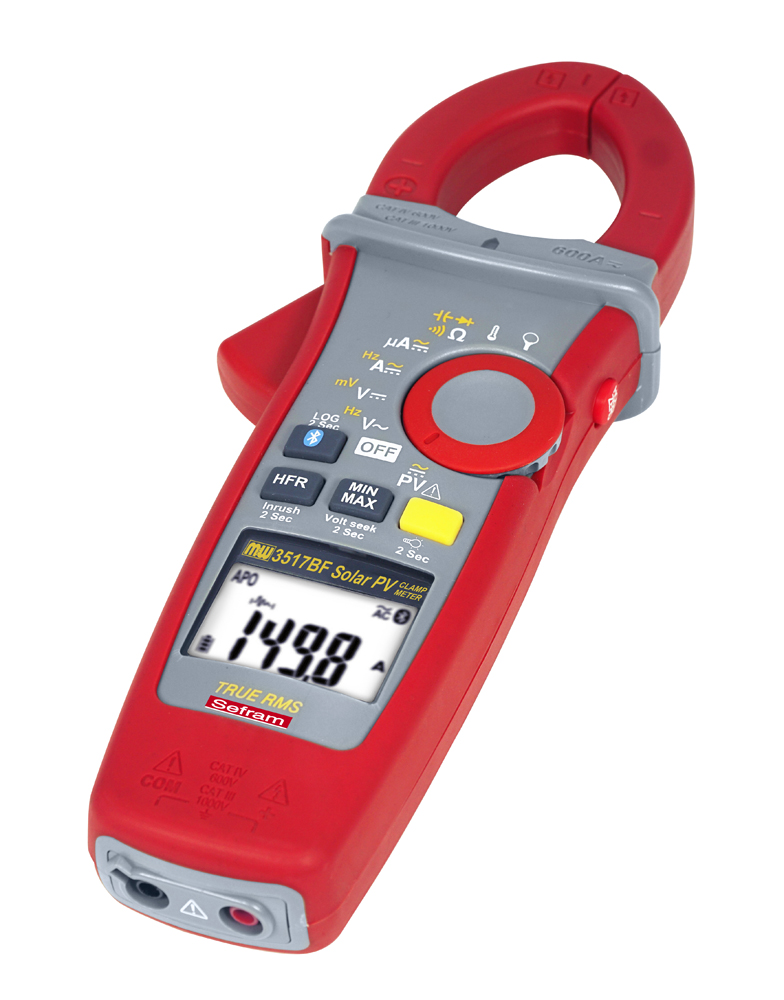

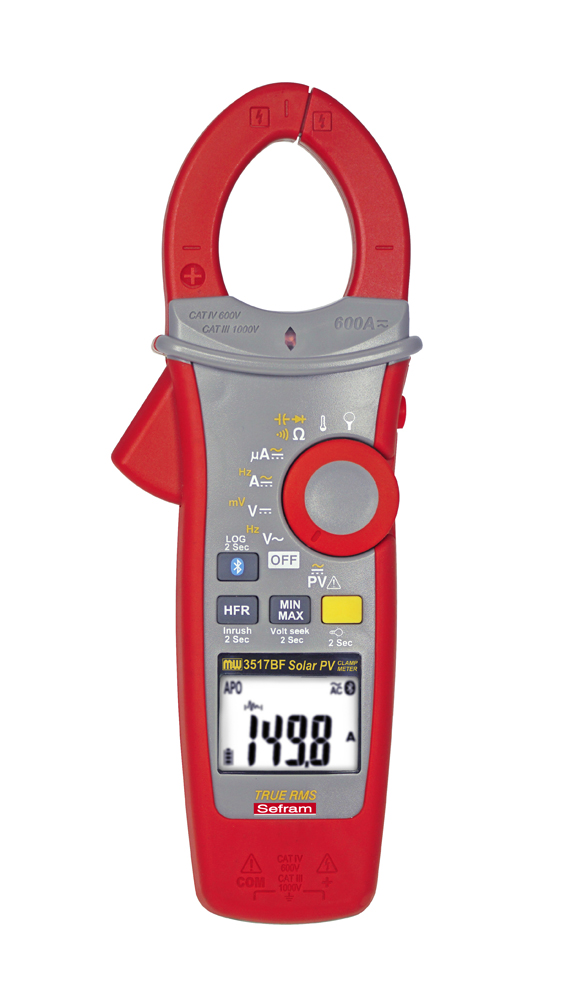

Sefram MW 3517BF

Multifunction clamp for photovoltaic systems

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The MW 3517BF is designed to include all the functions necessary for the maintenance and installation of photovoltaic (PV) panels. It can measure AC voltages up to 1500V and DC voltages up to 2000V using the optional SA163 probe adapter specially designed for measurements on  photovoltaic installations.

All the normal functions of a multimeter are present including frequency, capacitance, resistance, continuity and diode test modes.  It is also possible to measure currents up to 600A AC and DC or up to 3000A AC using the optional SP295 or SP296 Flex clamps.
An integrated datalogger function allows you to record all types of measurements with selectable intervals of 1, 15, 30 or 60 seconds.

With its Bluetooth interface you can monitor your measurements and record them in real time on your phone or tablet using the dedicated app (Android or iOS).  The recorded data can be downloaded and exported via the tablet or the smartphone in .csv format for display or processing in a spreadsheet or other software.

  • 6000 count LCD display with backlight
  • Dedicated photovoltaic mode: AC voltage measurement up to 1500V and DC up to 2000V (with the optional adapter SA163)
  • AC current measurement up to 3000A (with optional Flex clamp SP295 or SP296)
  • DC current measurement with a μA resolution
  • Temperature measurement
  • Resistance measurement and continuity measurement with buzzer
  • Frequency measurement
  • Measurement with high frequency rejection filter
  • Non-contact voltage detection function
  • Measurement of starting currents (inrush)
  • Datalogger function
  • Bluetooth communication for storage of measured values and extraction of recorded values
  • Integrated LED torch
  • Min, Max and HOLD functions

Product Variants

Model Price

MW 3517BF

Multifunction clamp for photovoltaic systems with Bluetooth interface
POA
No options were found. Sometimes this is because the options list is too extensive and complex to list. Please refer to the data sheet and contact us if you can't find what you're looking for.
Series Model Price
SA 163
Adapter for photovoltaic panels, up to 1500 VAC and 2000 VDC
POA
SP 295
FLEX CLAMP D10 3000A
POA
SP 296
FLEX CLAMP D18 3000A
POA
