Chroma 63200A Series

DC Electronic Load with models from 2kW to 24kW and programmable waveforms

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
  • Rated power: 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max. 240kW (Parallel)
  • Voltage range: 150V, 600V, 1200V
  • Current range: 2000A max. per unit
  • CC, CR, CV & CP operation modes
  • CR+CC, CR+CV, CC+CV complex modes
  • Up to 10 units master/slave parallel control
  • Dynamic synchronous control in static and dynamic loads
  • User defined waveform (UDW)
  • CZ mode for turn on capacitive load simulation
  • External loading current simulation
  • Auto frequency sweep up to 50kHz
  • Real time power supply load transient response simulation & Vpk+/- measurement
  • User programmable 255 sequential front panel input status
  • Ultra high precision voltage & current measurement
  • Precision high speed digitizing measurement/data capture
  • Voltage, current & Pmax measurement for OCP/OLP testing
  • Timing & discharging measurement for batteries
  • Instant overpower loading
  • Short circuit simulation
  • Smart fan control
  • Full protection: OC (adjustable), OT, OP (adjustable) protection & OV warning
  • Standard USB, optional Ethernet and GPIB interfaces

Product Variants

Model Price

63202A-1200-80

DC Electronic Load 1200V/80A/2kW (3U)
POA

63202A-150-200

DC Electronic Load 150V/200A/2kW (3U)
POA

63202A-600-140

DC Electronic Load 600V/140A/2kW (3U)
POA

63203A-1200-120

DC Electronic Load 1200V/120A/3kW (3U)
POA

63203A-150-300

DC Electronic Load 150V/300A/3kW (3U)
POA

63203A-600-210

DC Electronic Load 600V/210A/3kW (3U)
POA

63204A-1200-160

DC Electronic Load 1200V/160A/4kW (4U)
POA

63204A-150-400

DC Electronic Load 150V/400A/4kW (4U)
POA

63204A-600-280

DC Electronic Load 600V/280A/4kW (4U)
POA

63205A-1200-200

DC Electronic Load 1200V/200A/5kW (4U)
POA

63205A-150-500

DC Electronic Load 150V/500A/5kW (4U)
POA

63205A-600-350

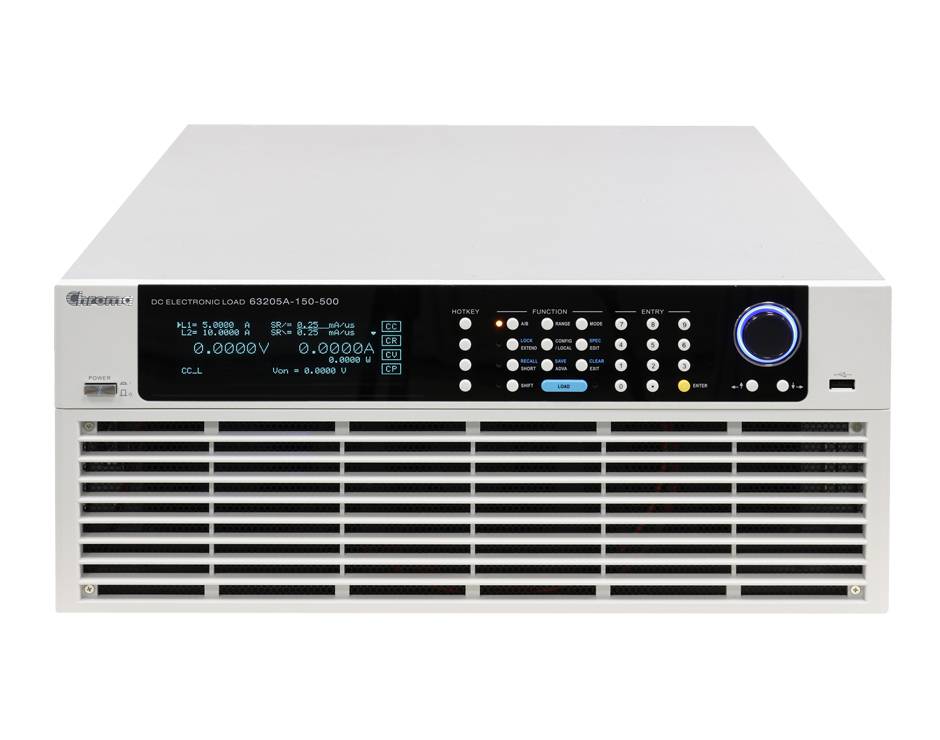

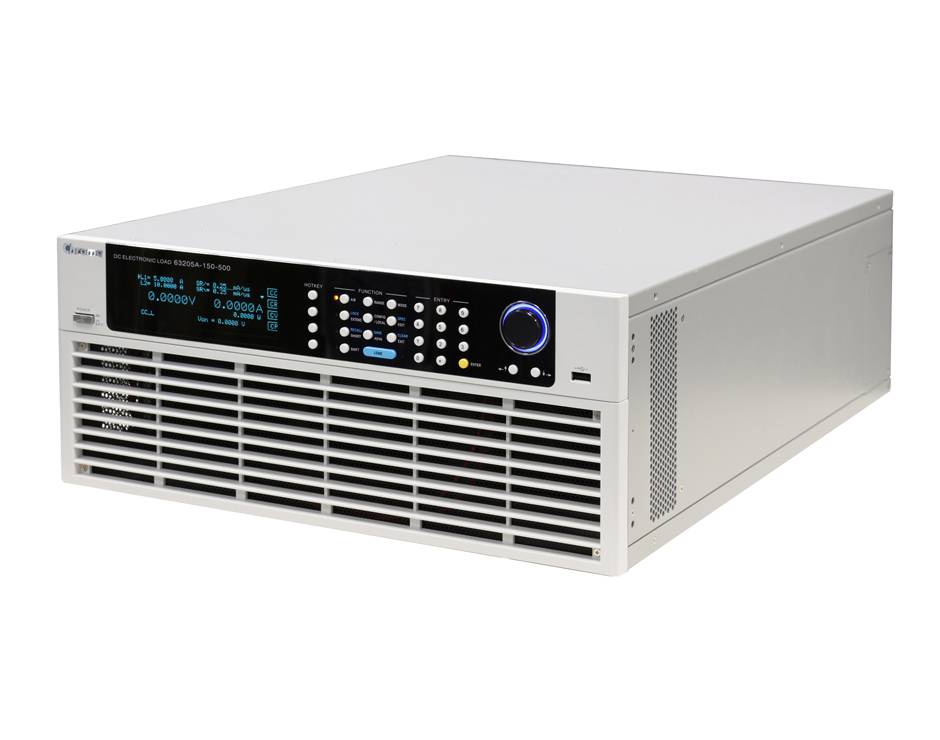

DC Electronic Load 600V/350A/5kW (4U)
POA

63206A-1200-240

DC Electronic Load 1200V/240A/6kW (4U)
POA

63206A-150-600

DC Electronic Load 150V/600A/6kW (4U)
POA

63206A-60-1000

DC Electronic Load 1000V/60A/6kW (4U)
POA

63206A-600-420

DC Electronic Load 600V/420A/6kW (4U)
POA

63208A-1200-320

DC Electronic Load 1200V/320A/8kW (7U)
POA

63208A-150-800

DC Electronic Load 150V/800A/8kW (7U)
POA

63208A-600-560

DC Electronic Load 600V/560A/8kW (7U)
POA

63210A-1200-400

DC Electronic Load 1200V/400A/10kW (7U)
POA

Pages

Model Description Price
A632006
NI USB-6211 Bus-Powered Multifunction DAQ for model 63200/63200A/63600 series POA
A636000
GPIB Interface for 63600/63200A series POA
A636010
Ethernet Interface for 63601-5 mainframe & 63200A Series POA
B632000
Handle for model 3kW (pair) POA
B632001
Handle for model 4kW, 5kW & 6kW (pair) POA
Series Model Price
A600009
GPIB Cable (200cm)
POA
A600010
GPIB Cable (60cm)
POA
A632008
Sync. Link Box for Model 63200A/6330A Series
POA
B632002
19" Rack Mounting Kit for model 12kW (pair)
POA
B632003
19" Rack Mounting Kit for model 18kW (pair)
POA
B632004
19" Rack Mounting Kit for model 24kW (pair)
POA
