Advanced Test and Measurement
Instruments and Power Supplies

Rohde and Schwarz ZVH Series

Hand-held Cable and Antenna Analyzer with 3.6GHz or 8GHz options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

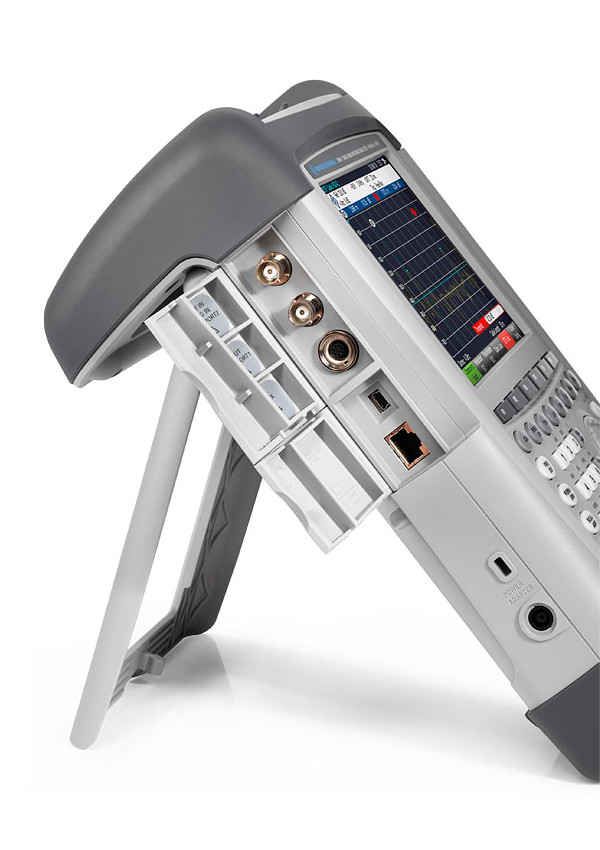

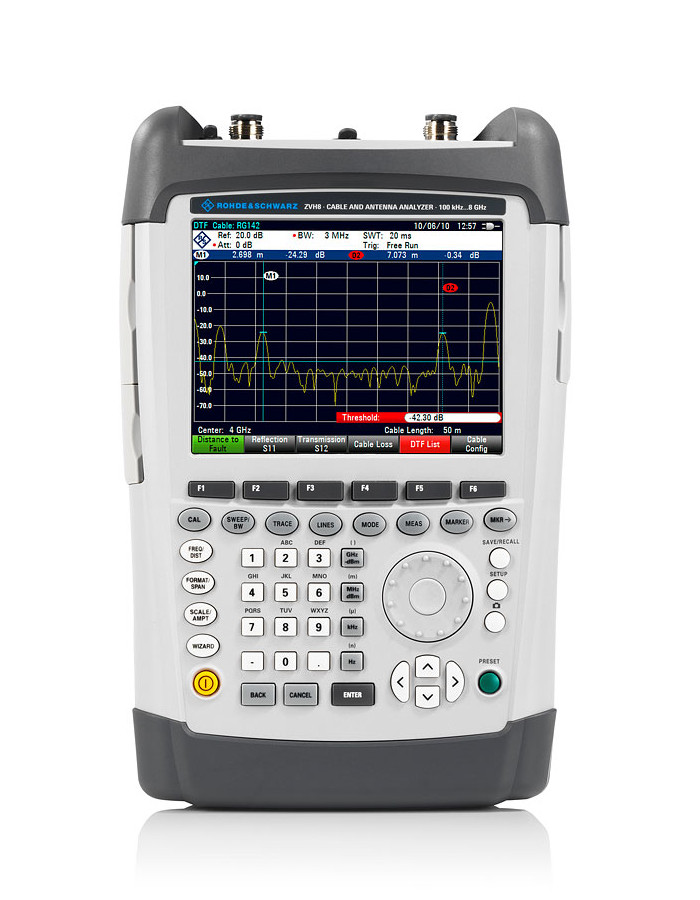

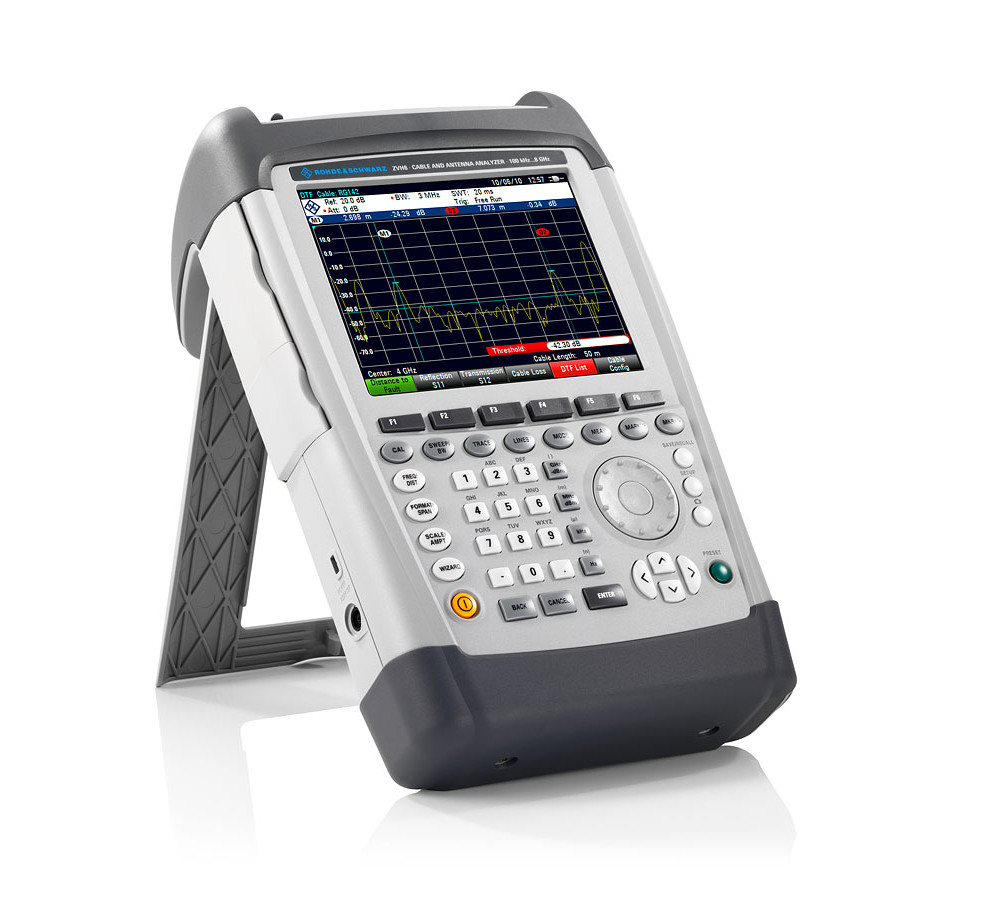

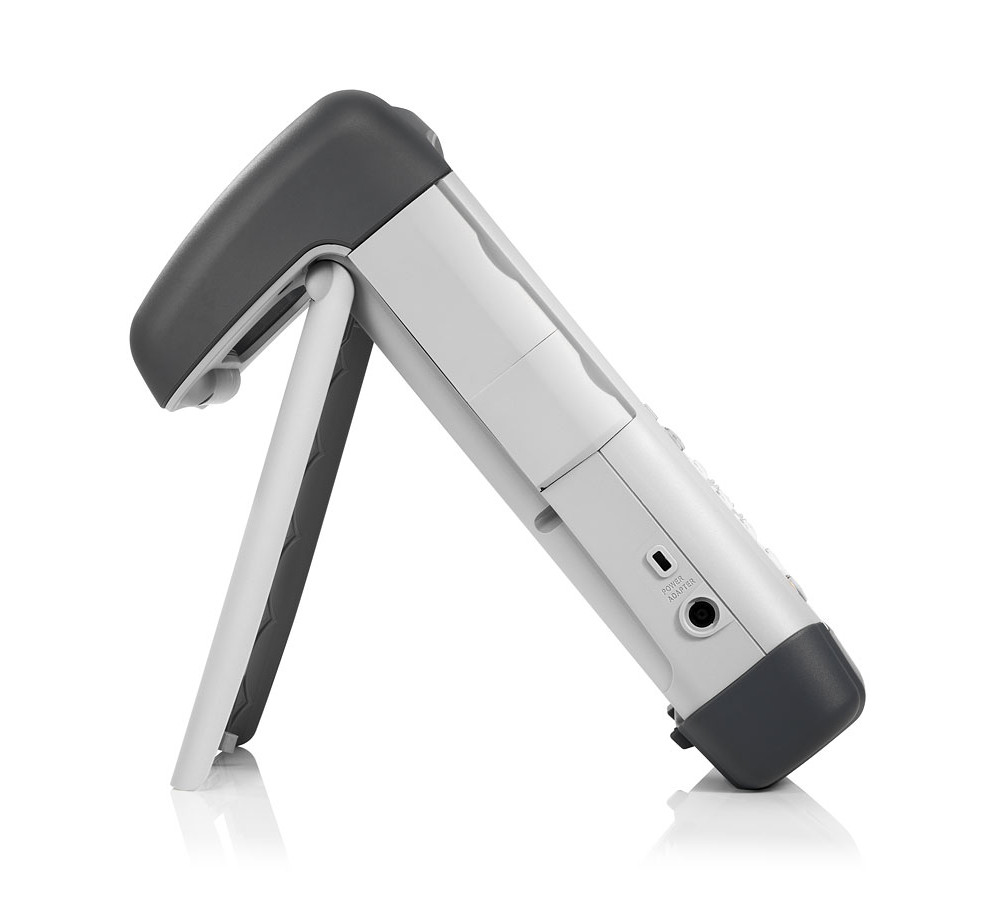

The ZVH is a rugged, hand-held, battery powered cable and antenna analyzer, designed for use in the field.

  • Frequency range from 100 kHz to 3.6 GHz or 8 GHz
  • 100 dB (typ.) dynamic range for filter and antenna isolation measurements
  • Factory calibration over entire frequency range
  • Built-in DC voltage supply (bias) for active components such as amplifiers
  • Power meter option

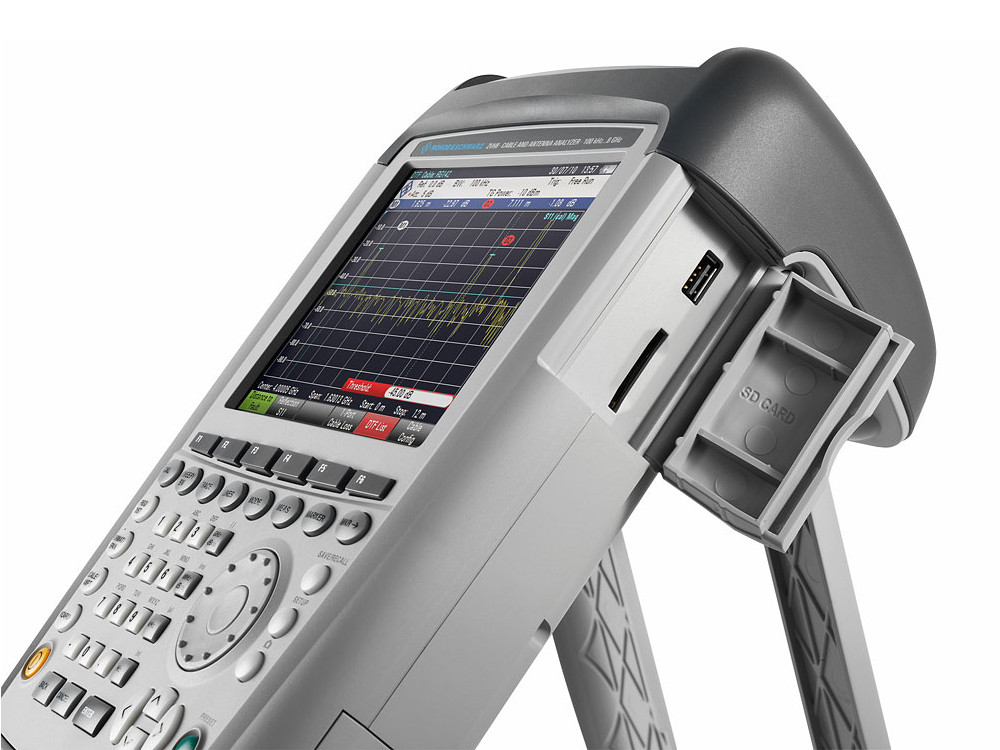

  • Saving of measurement results on SD memory card or USB memory stick
  • Easy operation with user-configurable test sequences (wizard)
  • Easy-to-replace Lithium-ion battery for up to 4.5 h of operation
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys

Product Variants

Model Price

ZVH4

Hand-held Cable and Antenna Analyzer 100kHz to 3.6GHz
£6,776.90

ZVH8

Hand-held Cable and Antenna Analyzer 100kHz to 8GHz
£8,399.30
Model Description Price
ZVH-K1
 Spectrum analysis measurement, application (software licence)
£4,503.85
ZVH-K14
 Spectrogram measurement, application (requires ZVH-K1) (software licence)
£1,056.25
ZVH-K19
 Channel power meter (software licence)
£997.10
ZVH-K29
 Pulse Measurements with Power Sensor (software licence)
£1,106.95
ZVH-K39
 Transmission measurement, application (software licence)
£1,436.50
ZVH-K40
 Remote control via USB or LAN, application (software licence)
£325.33
ZVH-K42
 Vector network analysis, application (software licence)
£4,512.30
ZVH-K45
 Vector voltmeter measurement, application (software licence)
£523.90
ZVH-K9
 Power meter measurement application (software licence)
£532.35
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
FSH-Z114
Precision frequency reference, ageing : < 3.6E-9 /year
£5,424.90
Accessories
FSH-Z29
Combined open/short/50 Ω calibration standard for VSWR and DTF measurements
£515.45
Accessories
FSH-Z38
Matching pad, 50/75 Ω, L section, type N to BNC
£295.75
Accessories
HA-Z220
Soft carrying bag
£278.85
Accessories
NRP-Z4
USB adapter (passive) for NRP-Z sensors powered via USB
£202.80
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
