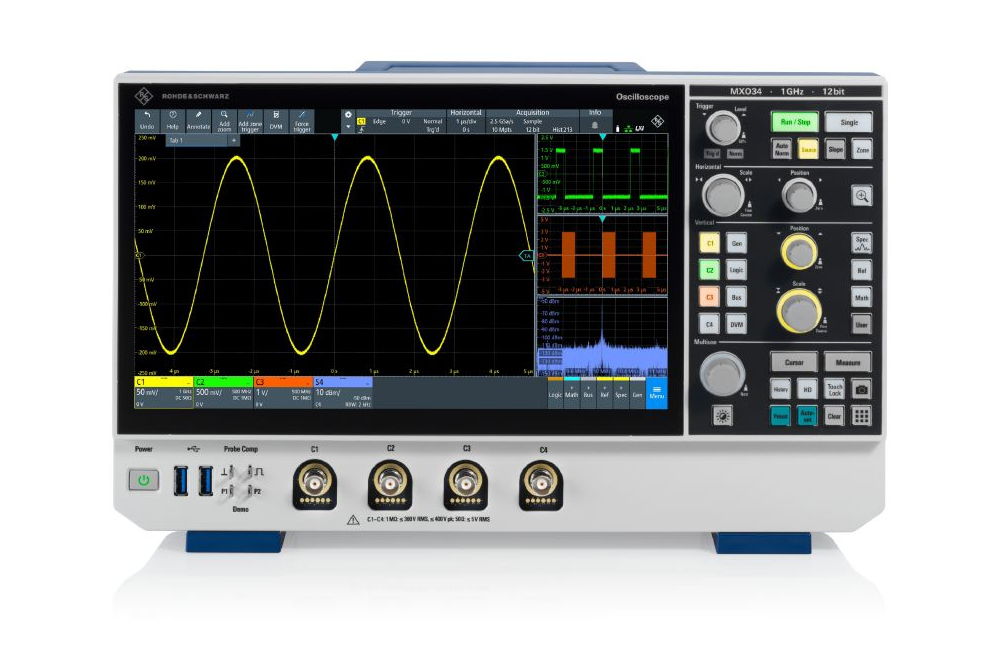

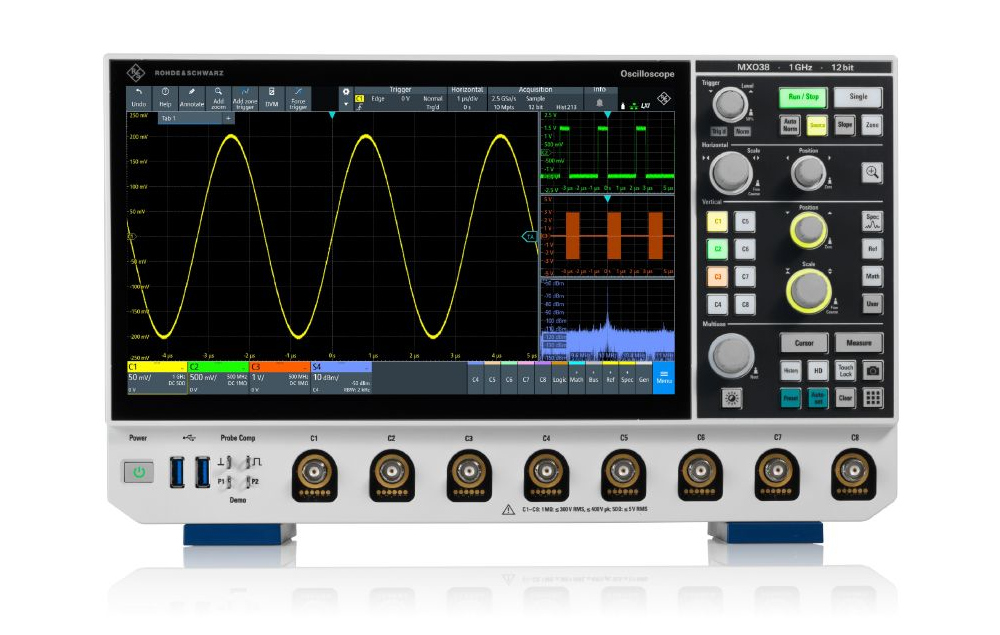

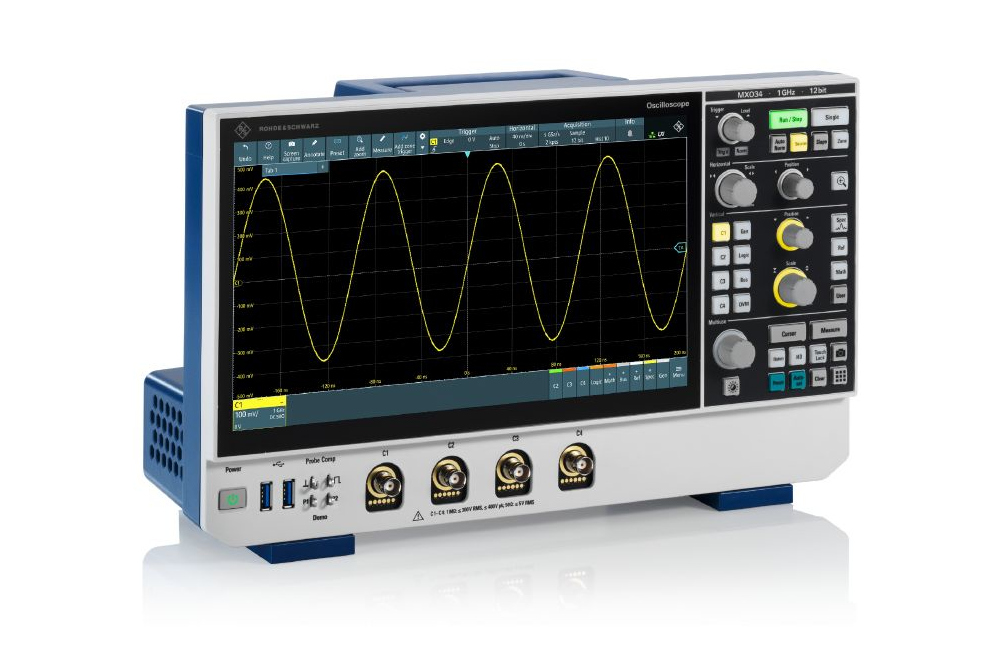

Rohde and Schwarz MXO 3 Series

Oscilloscope with 4 or 8 channels, 100MHz to 1GHz

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

Equipped with next-generation MXO technology and hardware acceleration, the MXO 3 series delivers fast and precise measurements in a small package

  •  Fast
    • Update rate of up to 4.5 million acquisitions/s
    • Real-time signal capture up to 99%
    • Fast in both the time and frequency domains
  • Precise
    • 12-bit ADC at all sample rates, 18-bit in HD mode
    • Advanced and flexible digital trigger
    • Deep 125 Mpoints standard memory
  • Compact
    • Compact case with VESA 100 mounting points
    • 11.6" Full HD multi-touch display
    • Rackmountable (5U kit available as an option)

Product Variants

Model Price

MXO34-100

Oscilloscope 4 channel, 100 MHz
£4,793.88

MXO34-1000

Oscilloscope 4 channel, 1 GHz
£16,927.80

MXO34-200

Oscilloscope 4 channel, 200 MHz
£5,355.80

MXO34-350

Oscilloscope 4 channel, 350 MHz
£9,807.26

MXO34-500

Oscilloscope 4 channel, 500 MHz
£13,433.40

MXO38-100

Oscilloscope 8 channel, 100 MHz
£11,194.50

MXO38-1000

Oscilloscope 8 channel, 1 GHz
£32,240.20

MXO38-200

Oscilloscope 8 channel, 200 MHz
£16,120.10

MXO38-350

Oscilloscope 8 channel, 350 MHz
£20,597.90

MXO38-500

Oscilloscope 8 channel, 500 MHz
£24,180.10
Model Description Price
MXO-PC
 ScopeStudio Software POA
MXO-PC-K1
 ScopeStudio Software Protocol Decode Option POA
MXO3-B1
 MSO Option for MXO3 series with 16 digital channels
£1,343.34
MXO3-B105
 MXO3 Memory upgrade to 500 Mpoints
£1,615.52
MXO3-B2410
 Upgrade of MXO34 to 1 GHz bandwidth
£12,134.00
MXO3-B242
 Upgrade of MXO34 to 200 MHz bandwidth
£658.50
MXO3-B243
 Upgrade of MXO34 to 350 MHz bandwidth
£5,013.38
MXO3-B245
 Upgrade of MXO34 to 500 MHz bandwidth
£8,639.52
MXO3-B2810
 Upgrade of MXO38 to 1 GHz bandwidth
£21,045.70
MXO3-B282
 Upgrade of MXO38 to 200 MHz bandwidth
£4,925.58
MXO3-B283
 Upgrade of MXO38 to 350 MHz bandwidth
£9,403.38
MXO3-B285
 Upgrade of MXO38 to 500 MHz bandwidth
£12,985.60
MXO3-B6
 MXO3 Arbitrary waveform generator option, 50MHz, 1 analogue channel
£878.00
MXO3-K31
 MXO3 Power analysis option
£1,448.70
MXO3-K36
 MXO3 Frequency response analysis option
£1,448.70
MXO3-K510
 MXO3 serial decode option (I2C/SPI/UART/RS-232 etc)
£1,448.70
MXO3-K520
 MXO3 automotive protocol option (CAN/CAN FD/CAN XL/LIN/SENT)
£1,448.70
MXO3-K530
 MXO3 Aerospace protocol option (ARINC 429/MIL-STD-1553/SpaceWire)
£1,448.70
MXO3-K550
 MXO3 MIPI low speed protocol option (SPMI/RFFE/I³C)
£2,414.50
MXO3-K560
 MXO3 Automotive Ethernet protocol option (10BASE-T1S)
£1,817.46

Pages

This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price

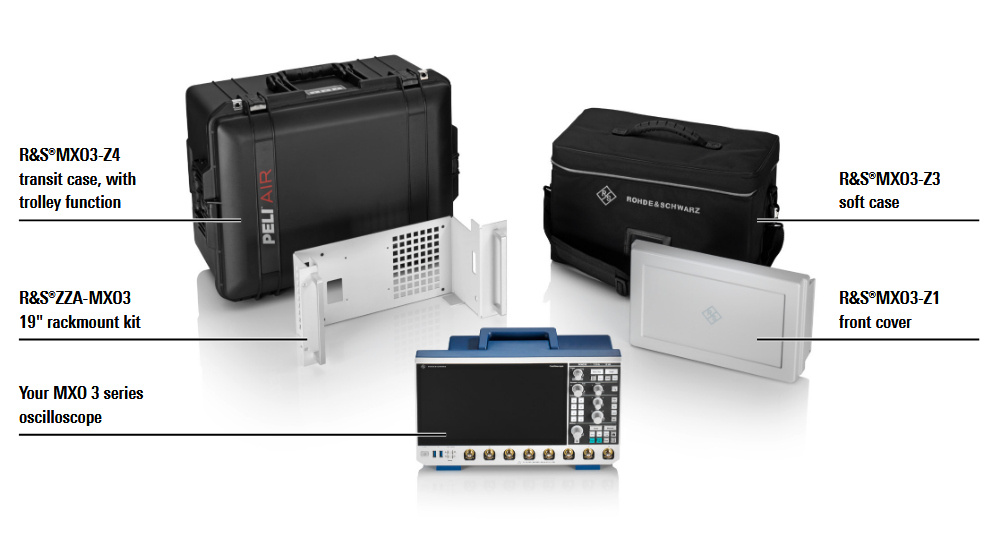

Accessories
MXO3-Z1
MXO3 Front cover
£85.17
Accessories
MXO3-Z3
MXO3 Soft case
£223.89
Accessories
MXO3-Z4
MXO3 Transit case
£886.78
Accessories
ZZA-MXO3
Rackmount kit for MXO 3 oscilloscopes with 5 HU 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
