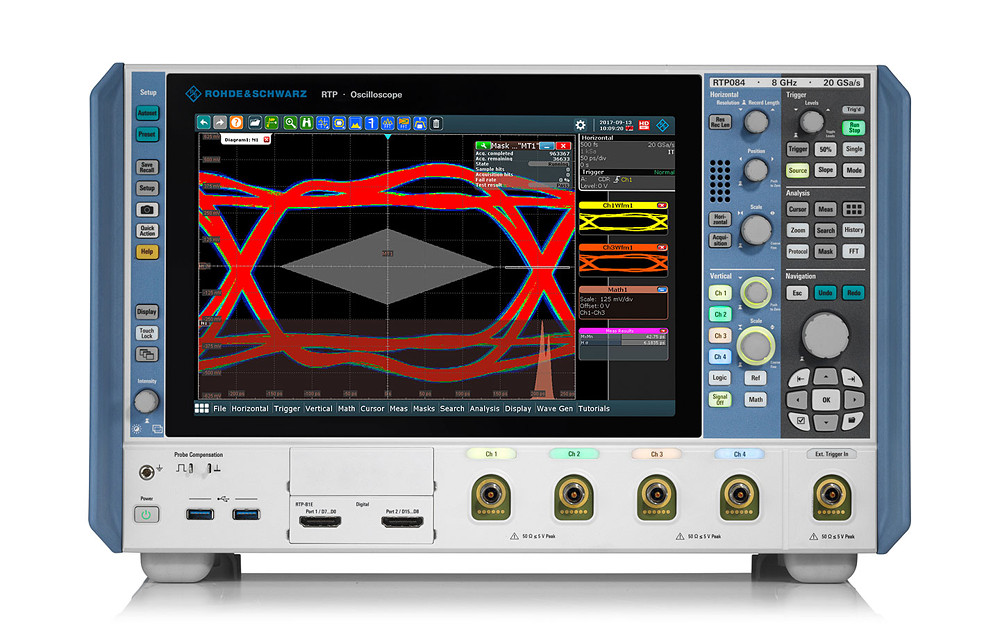

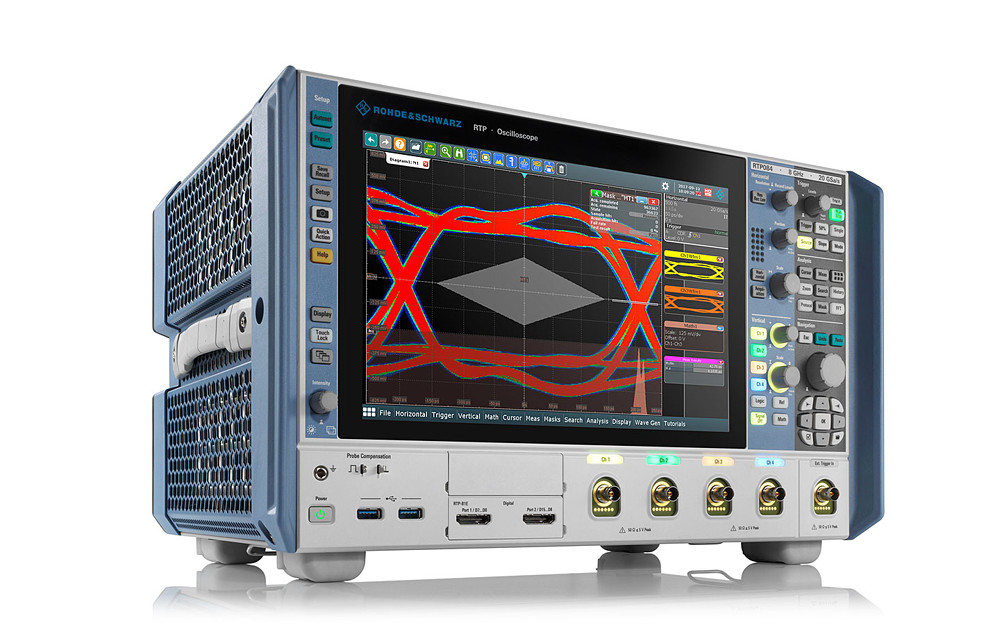

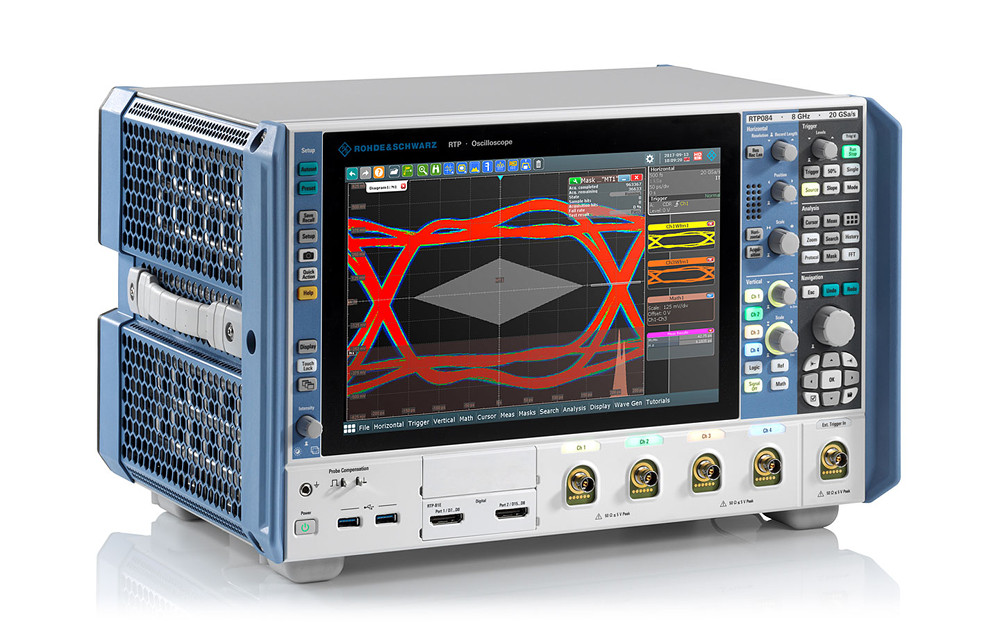

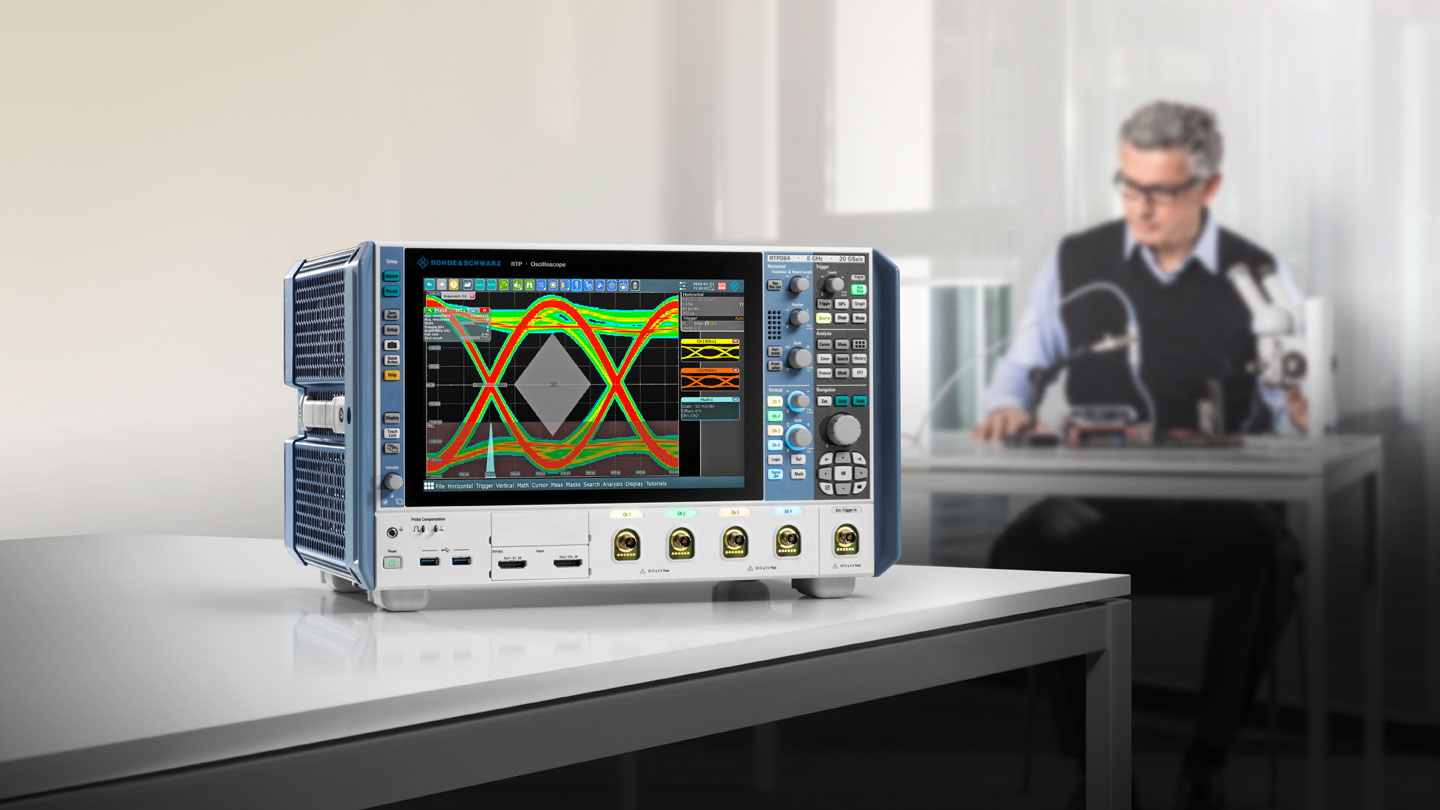

Rohde and Schwarz RTP Series

High Performance Oscilloscope with models from 4 to 8GHz

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The R&S®RTP high-performance oscilloscope combines high-class signal integrity with a fast acquisition rate. Customized frontend ASICs and realtime processing hardware enable highly accurate measurements with unprecedented speed in a compact form factor.

  • Bandwidth: 4 GHz to 8 GHz
  • Max. sample rate: 20 Gsample/s
  • Max. memory depth: 2 Gsample
  • All trigger events at full bandwidth
  • Quickly find signal faults with 1 million waveforms/s
  • High-precision digital trigger without bandwidth limitations
  • Realtime de-embedding for triggering and fast acquisition
  • Compact design and silent operation for best fit to any lab

Product Variants

Model Price

RTP044

High Performance Oscilloscope 4 channel, 4GHz 		POA

RTP064

High Performance Oscilloscope 4 channel, 6GHz 		POA

RTP084

High Performance Oscilloscope 4 channel, 8GHz 		POA
Model Description Price
RT-ZVC04
 Digital Extension Port - required for RT-ZVC02/04 probes POA
RTP-B0406
 Bandwidth upgrade to 6 GHz for RTP044 Oscilloscopes POA
RTP-B0408
 Bandwidth upgrade to 8 GHz for RTP044 Oscilloscopes POA
RTP-B0608
 Bandwidth upgrade to 8 GHz for RTP064 Oscilloscopes POA
RTP-B1
 MSO Option - adds 16 digital channels to RTP Oscilloscopes POA
RTP-B101
 Memory upgrade to 100Msamples per channel for RTP Series Oscilloscopes POA
RTP-B102
 Memory upgrade to 200Msamples per channel for RTP Series Oscilloscopes POA
RTP-B105
 Memory upgrade to 500Msamples per channel for RTP Series Oscilloscopes POA
RTP-B110
 Memory upgrade to 1Gsamples per channel for RTP Series Oscilloscopes POA
RTP-B19
 Replacement SSD with firmware for RTP Series Oscilloscopes POA
RTP-B1E
 Digital Extension Port - required for RT-ZVC02/04 probes POA
RTP-B20
 Front handles for RTP Series Oscilloscopes POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
Series Model Price
Accessories
RT-ZA16
Precision BNC to SMA adapter 		POA
Accessories
RT-ZA17
Matched pair SMA cable for TDR measurement 		POA
Accessories
RTP-Z1
Front cover for RTP series oscilloscopes 		POA
This information is based on manufacturer's data, however it should be noted that some accessories may be dependent on additional adaptors or product options, and may be only applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
