Yokogawa WT1500 Series

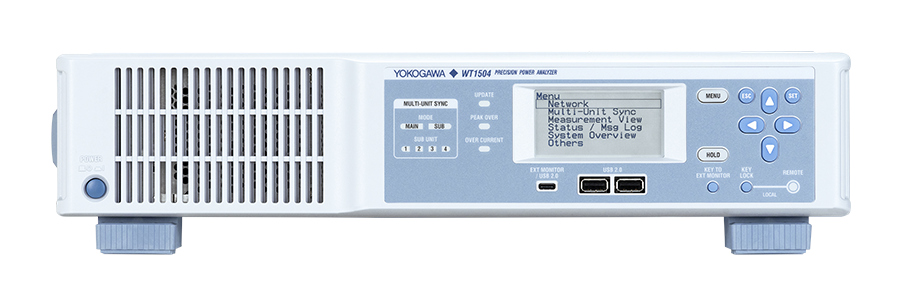

The WT1500 is a precision power analyzer developed for automated test, production and high-voltage power electronics applications. Its compact 2U rack-mount design combines up to four power and four motor channels with flexible input elements for either high-voltage or wide-bandwidth measurements. High-speed communication and multi-unit scalability make it particularly suited to EV powertrains, energy storage, power conversion systems and automated test environments.

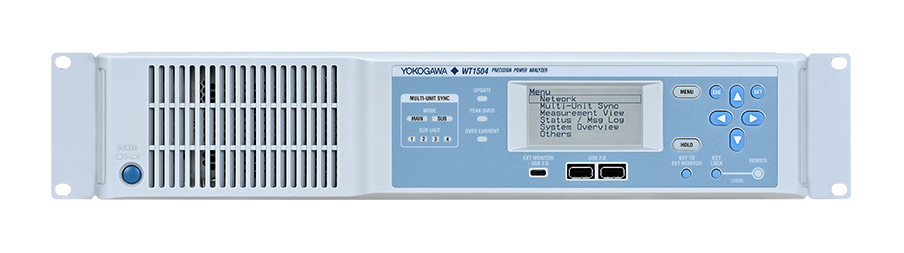

• Up to 4 power channels and 4 motor channels in a compact 19-inch, 2U rack-mount chassis
• Total power accuracy of ±0.038% at DC and 50/60 Hz for high-precision efficiency measurements
• High Voltage element enables direct measurement up to 2000 V DC with bandwidth up to 300 kHz

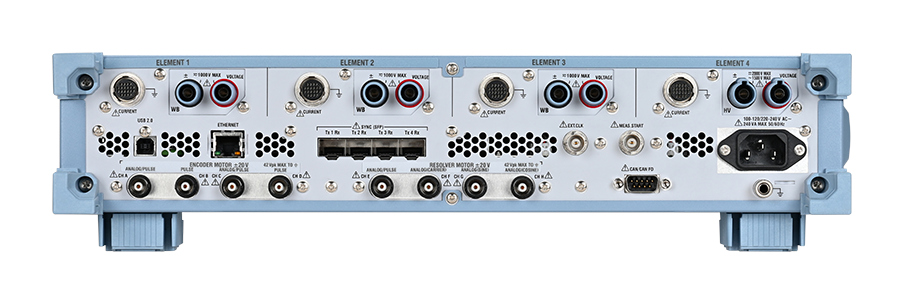

• Wide Bandwidth element supports measurements up to 1000 V with bandwidth up to 2 MHz; HV and WB elements can be mixed within one unit
• Designed to scale to 20 power and 20 motor channels by synchronizing up to five units using the multi-unit synchronization option

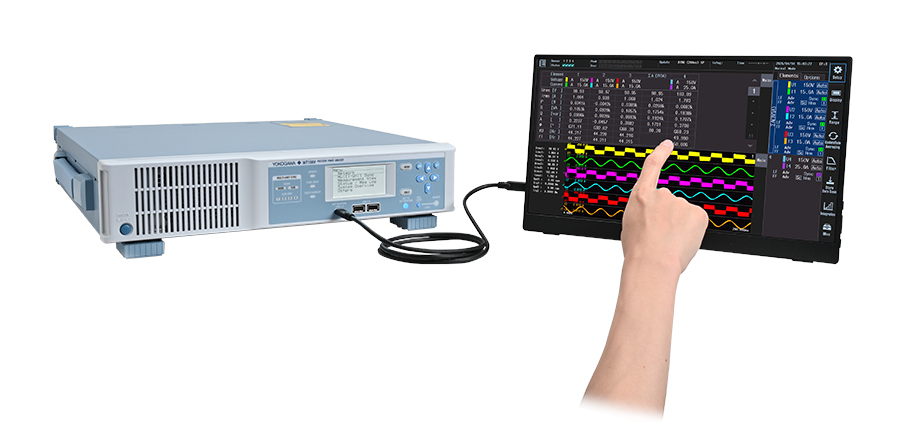

• CAN/CAN FD, UDP and IEEE 1588 connectivity, together with browser-based remote control, support integration into automated test systems
