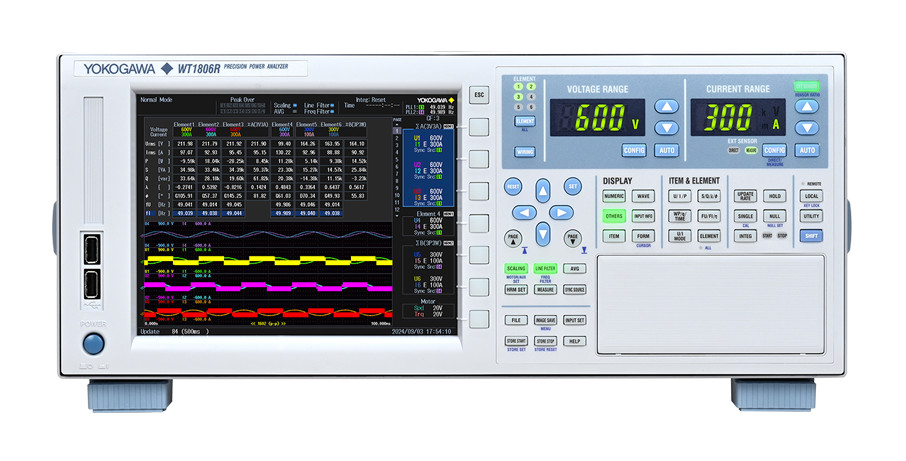

Yokogawa WT1800R
Precision Power Analyzer with up to six phase inputs
Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.
The WT1800R is a high-performance power analyzer designed for precise evaluation of electrical power, efficiency and harmonic behaviour. With configurations from one to six power inputs, it supports simultaneous measurement of multi-phase converters, inverters and motor drive systems. High-resolution sampling and wide measurement bandwidth make it suitable for applications ranging from renewable energy systems to EV powertrains and industrial motor development.
- Configure from 1 to 6 power input channels for single- and multi-phase power measurements
- Simultaneous acquisition on up to 6 inputs at 2 MS/s with 16-bit resolution
- Basic power accuracy of ±(0.05% of reading + 0.05% of range) at 50/60 Hz
- Measurement bandwidth from DC and low-frequency signals up to 1 MHz for wideband power analysis
- Harmonic analysis up to the 500th order of a 50/60 Hz fundamental, with up to 2 motor inputs for electrical and mechanical efficiency evaluation
- 8.4-inch XGA display supporting numerical, waveform, vector and trend views for multi-channel analysis:
Product Variants
| Model | Price | |
|---|---|---|
WT1801RPrecision Power Analyzer Single Phase |
POA | |
WT1802RPrecision Power Analyzer Two Phase |
POA | |
WT1803RPrecision Power Analyzer Three Phase |
POA | |
WT1804RPrecision Power Analyzer Four Phase |
POA | |
WT1805RPrecision Power Analyzer Five Phase |
POA | |
WT1806RPrecision Power Analyzer Six Phase |
POA |
