Rohde and Schwarz FSH Series

Handheld Spectrum Analyzer with 3.6 and 8GHz options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

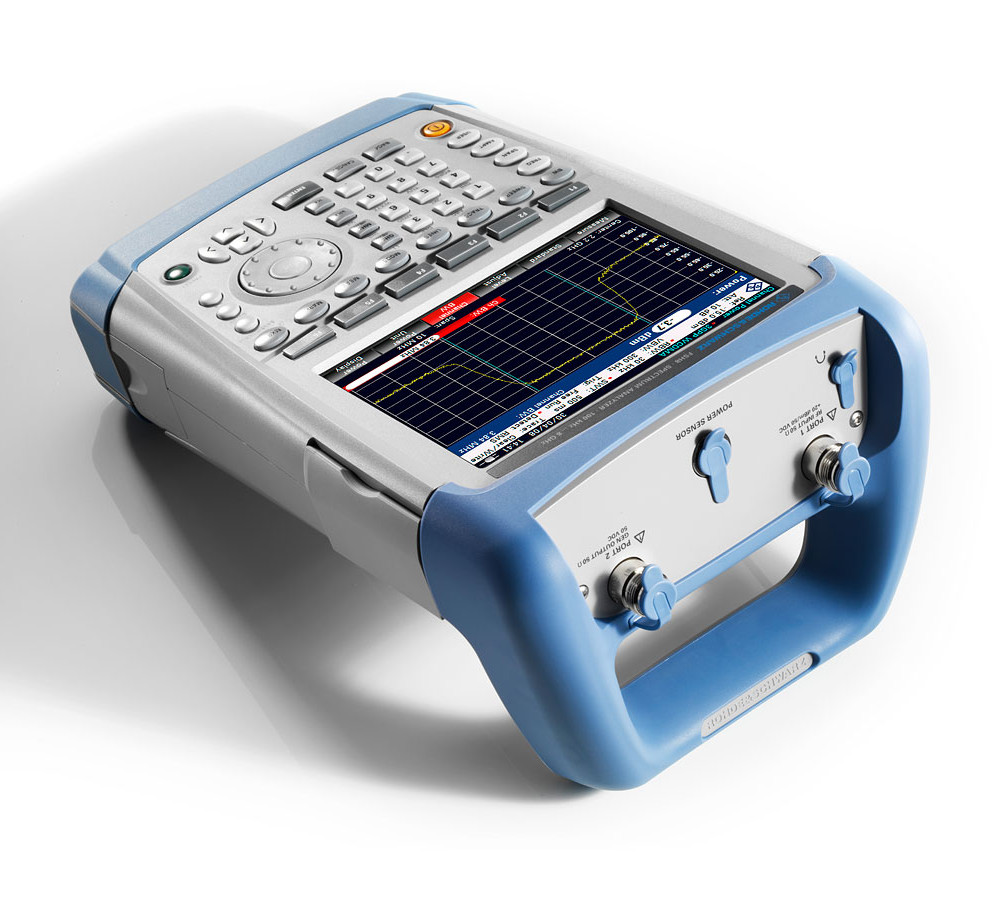

The FSH is a rugged, battery powered portable spectrum analyzer designed for use in the field.  Depending on the model and the options installed it can also be a power meter, a cable and antenna tester and a two-port vector network analyzer. It provides the three most important RF analysis functions that an RF service technician or an installation and maintenance team needs to solve daily routine measurement tasks.

  • Frequency range from 9 kHz to 3.6 or 8 GHz
  • High sensitivity (< –141 dBm (1 Hz), with preamplifier < –161 dBm (1 Hz))
  • 20 MHz demodulation bandwidth for analyzing LTE signals
  • Low measurement uncertainty (< 1 dB)
  • Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
  • Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
  • Two-port network analyzer
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
  • Easy operation thanks to user configurable, automatic test sequences (wizard)



Product Variants

Model Price

FSH4

Handheld Spectrum Analyzer 9kHz to 3.6GHz
£7,123.68

FSH4

Handheld Spectrum Analyzer 9kHz to 3GHz with tracking generator
£8,668.89

FSH4

Handheld Spectrum Analyzer 9kHz to 3GHz with tracking generator and VSWR bridge
£10,755.40

FSH8

Handheld Spectrum Analyzer 9kHz to 8GHz
£9,262.53

FSH8

Handheld Spectrum Analyzer 9kHz to 8GHz with tracking generator
£10,545.80

FSH8

Handheld Spectrum Analyzer 9kHz to 8GHz with tracking generator and VSWR bridge
£14,614.00
Model Description Price
FSH-K10
GSM, EDGE measurement application (software licence)
£2,531.70
FSH-K14
Spectrogram measurement application (software licence)
£881.73
FSH-K16
Geotagging measurement application (software licence)
£646.02
FSH-K17
Indoor Mapping Measurement Application (software licence)
£646.02
FSH-K29
Pulse Measurements with Power Sensor (software licence)
£925.38
FSH-K40
Remote control via LAN or USB for FSH4/8 (software licence)
£270.63
FSH-K41
Distance to fault measurement for FSH4/8 (software licence)
£803.16
FSH-K42
Vector reflection and transmission measurement (software licence)
£672.21
FSH-K43
Receiver Mode and Channel Scanner Application (software licence)
£960.30
FSH-K44
3GPP WCDMA BTS/Node B pilot channel and EVM measurement application (software licence)
£1,964.25
FSH-K44E
3GPP WCDMA BTS/Node B Code-Domain-Power measurement application (software licence)
£2,968.20
FSH-K45
Vector voltmeter for FSH4/8 (software licence)
£436.50
FSH-K46
CDMA2000 BTS pilot channel and EVM measurements application (software licence)
£1,964.25
FSH-K46E
CDMA2000 BTS Code-Domain-Power measurement application (software licence)
£2,968.20
FSH-K47
1xEVDO BTS pilot channel and EVM measurement application (software licence)
£1,964.25
FSH-K47E
1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement application (software licence)
£2,968.20
FSH-K48
3GPP TD-SCDMA BTS power and P-CCPCH EVM measurement application (software licence)
£2,138.85
FSH-K48E
3GPP TD-SCDMA/HSDPA BTS code domain power and EVM measurement application, (software licence)
£2,907.09
FSH-K50
LTE FDD downlink pilot channel and EVM measurement application (software licence)
£1,964.25
FSH-K50E
LTE FDD downlink extended channel and modulation measurement application, (software licence)
£2,968.20

Pages

Series Model Price
FSH-Z114
Precision frequency reference, ageing : < 3.6E-9 /year
£4,522.14
FSH-Z14
Directional power sensor 25 MHz - 1 GHz, 30 mW - 120(300)W N-female for FSHx
£2,435.67
FSH-Z28
Load/short/open calibration standard for FSH4/8; DC to 8GHz, N connector
£842.44
FSH-Z38
75 ohm matching pad N to BNC (female)
£279.36
FSH-Z44
Directional power sensor 200 MHz - 4 GHz, 30mW - 120(300) W for FSHx
£2,383.29
HA-Z220
Carry bag/soft case for hand-held instruments
£253.17
NRP-Z211
2-path USB power sensor for universal use, 10MHz to 8GHz, 1nW to 100mW, N(m)
£2,112.66
NRP-Z221
2-path USB power sensor for universal use, 10MHz to 18GHz, 1nW to 100mW, N(m)
£2,749.95
NRP-Z4
USB adapter (passive) for NRP-Z sensors powered via USB
£144.04
