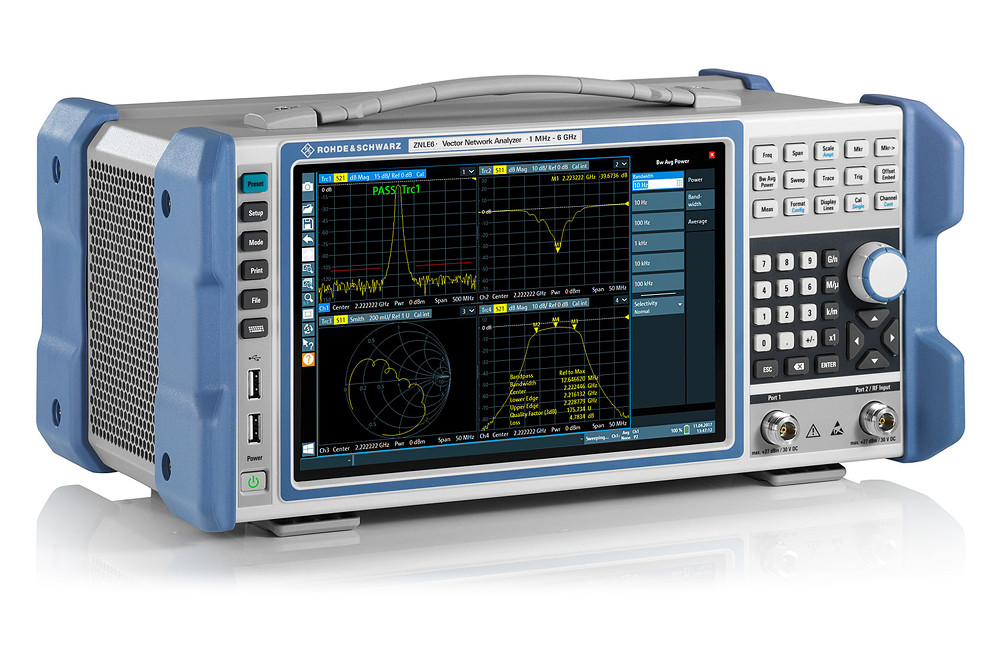

Rohde and Schwarz ZNLE Series

Vector Network Analyzer with 3 and 6 GHz models

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The ZNLE is a two-port vector network analyzer that can be used for bidirectional measurements of S-parameters S11, S21, S12 and S22 on passive components. Ordering the ZNLE requires only two decisions: the frequency range and whether or not you need a GPIB interface.

The analyzer is available with a frequency range of 1 MHz to 3 GHz (ZNLE3) or 1 MHz to 6 GHz (ZNLE6). As a standalone instrument, the R&S®ZNLE does not require an external PC to configure the setup. You can start measuring immediately after you switch on the instrument.

  • Frequency range from 1 MHz to 3 GHz or 1 MHz to 6 GHz
  • Two-port vector network analyzer with a full S-parameter test set for bidirectional measurements on passive components
  • Wide dynamic range of up to 120 dB (typ.)
  • Measurement bandwidths from 1 Hz to 500 kHz
  • Fast measurements
  • Compact size (depth 24 cm) and low weight (6 kg)
  • Standalone instrument with 10.1" WXGA touchscreen
  • Windows 10 operating system

Product Variants

Model Price

ZNLE3

Vector Network Analyzer 3GHz
£8,500.68

ZNLE6

Vector Network Analyzer 6GHz
£13,223.30
Model Description Price
FPL1-B10
GPIB option for ZNLE Vector Network Analyzer (retrofittable)
£537.08
Series Model Price
FPL1-Z1
Protective hard cover for FPL1000 and ZNL/ZNLE
£125.01
FPL1-Z2
Transport bag for FPL1000 and ZNL/ZNLE, transparent cover
£347.25
FPL1-Z6
Rack mount kit for FPL1000 and ZNL/ZNLE
£171.31
