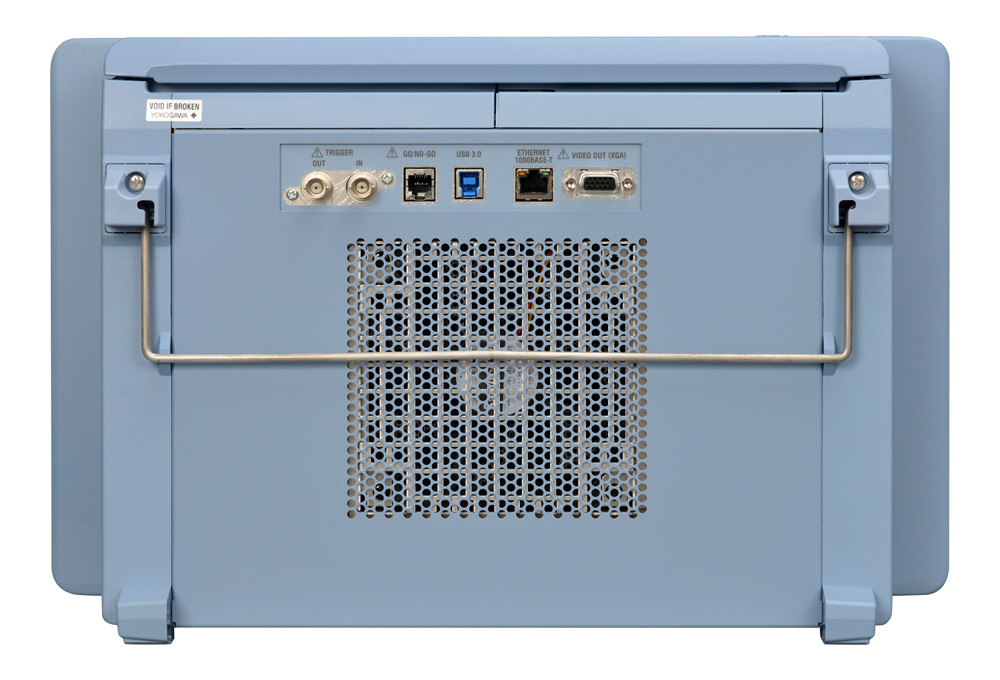

Yokogawa DLM5000 Series

Mixed Signal Oscilloscope with 4 and 8 channel versions and 350 or 500MHz bandwidth

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

Combining a large, highly responsive touchscreen and a traditional oscilloscope panel, the 4 to 8 channel DLM5000 mixed signal oscilloscope allows users to easily navigate through a wealth of analysis features at their fingertips

  • 350 MHz and 500 MHz bandwidths
  • Up to 2.5GS/s sample rate
  • Up to 500 MPoints memory
  • 4 or 8 analogue inputs channels
  • Up to 32 bit logic input




Product Variants

Model Price

DLM5034

Mixed Signal Oscilloscope 4 Channel 350MHz
£7,500.00

DLM5038

Mixed Signal Oscilloscope 8 Channel 350MHz
£11,500.00

DLM5054

Mixed Signal Oscilloscope 4 Channel 500MHz
£9,500.00

DLM5058

Mixed Signal Oscilloscope 8 Channel 500MHz
£15,000.00
Model Description Price
DLM5000-4M1S
4 channel scope memory expansion to 25M
£1,700.00
DLM5000-4M2S
4 channel scope memory expansion to 50M
£2,385.00
DLM5000-8M1S
8 channel scope memory expansion to 25M
£2,585.00
DLM5000-8M2S
8 channel scope memory expansion to 50M
£4,500.00
DLM5000-B5
Built In Printer (112mm)
£640.00
DLM5000-C1
GPIB Interface
£250.00
DLM5000-C8
Expansion to 64GB
£690.00
DLM5000-E1
Add four additional passive probe
£800.00
DLM5000-E2
Add four 701949 probes
£1,900.00
DLM5000-E3
Add eight 701949 probes
£3,600.00
DLM5000-F01
UART + I2C + SPI Trigger and Analysis
£1,200.00
DLM5000-F02
CAN + CAN FD + LIN Trigger and Analysis
£1,200.00
DLM5000-F03
FlexRay Trigger and Analysis
£1,050.00
DLM5000-F04
SENT Trigger and Analysis
£1,050.00
DLM5000-F05
CXPI Trigger and Analysis
£1,050.00
DLM5000-G02
User Defined Math Function
£480.00
DLM5000-G03
Power Supply Analysis Function
£680.00
DLM5000-L32
Expansion Logic 16bit (Total 32bit)
£1,800.00
DLM5000-P4
4 channel built In Probe Power Supply
£500.00
DLM5000-P8
8 channel built In Probe Power Supply
£750.00
Series Model Price
701919
Probe Stand - Round Base, 1 Arm
£640.00
701968
Soft Carry Case for DLM5000
£230.00
701969-E
EIA Rack Mount Kit for DLM5000
£475.00
