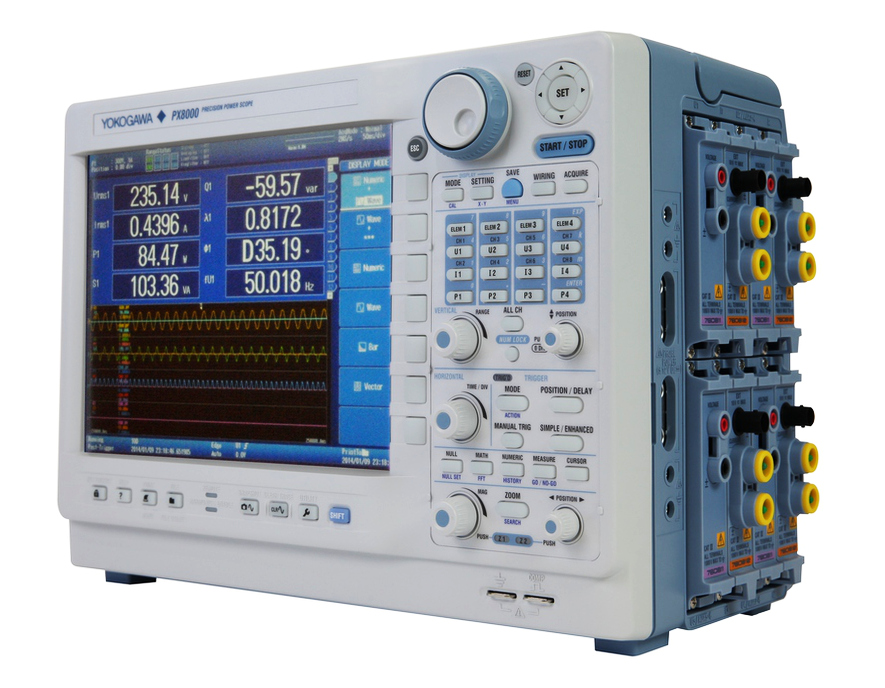

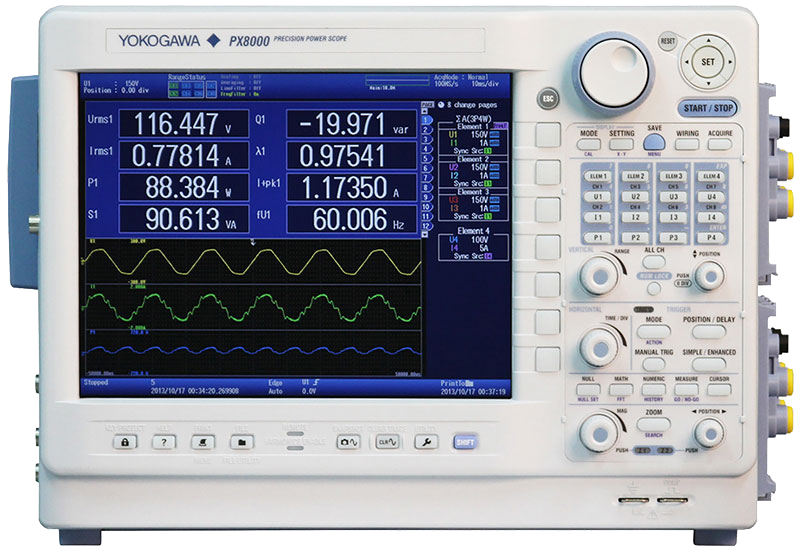

Yokogawa PX8000

Power Analyzer with modular inputs

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The PX8000 is a precision power scope, bringing oscilloscope-style time-based measurement to the world of power measurement. It can capture voltage and current waveforms precisely, opening up applications and solutions for a huge variety of emerging power measurement problems.

  • Simultaneous power calculation
  • Cycle-by-cycle power trend measurement
  • Specific time-period power measurement
  • X-Y display and phase analysis
  • Capture sudden or irregular phenomena
  • Long-period data capture and analysis
  • FFT Analysis
  • Simultaneous harmonic measurement


Product Variants

Model Price

PX8000

Power Analyzer 		POA

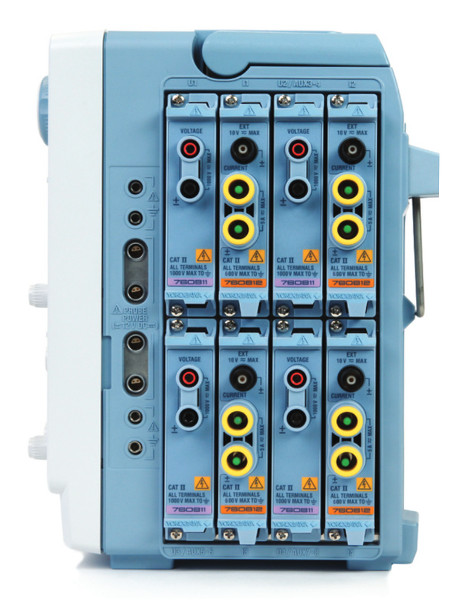

Model Description Price
760811
 Voltage module, DC to 20 MHz bandwidth, 1.5 V to 1000 Vrms direct input   POA
760812
 Current module, DC to 20 MHz bandwidth (sensor), 10 mA to 5 Arms direct input, 50 mV to 10 Vrms sensor input   POA
760813
 Current module without sensor input, DC to 10 MHz bandwidth, 10 mA to 5 Arms   POA
760851
 Auxiliary module: Torque and speed sensor inputs, pulse input from 2 Hz to 1 MHz, voltage measurement   POA
PowerViewerPlus
 PowerViewer software dedicated for PX8000 POA
PX8000 Option B5
 Built in printer POA
PX8000 Option C20
 IRIG Time Code input POA
PX8000 Option G5
 Harmonic Measurement option POA
PX8000 Option M1
 50M Memory upgrade option POA
PX8000 Option M2
 100M Memory upgrade option POA
PX8000 Option P4
 Probe power supply, 4 channel POA
This information is based on manufacturer's data, however it should be noted that some options may be mutually exclusive and may only be applicable to certain variants within a product series. Please refer to the manufacturer's data sheets for clarification or contact us for assistance.
